Modular Prefab Camp Ready Made Labour Quarters Flat Roof
Modular Ready Made Labour Quarters Prefab Camp
We can provide prefab camp house for labors.
These camp houses are pre-produced at our factory then installed on sites, can also be transported to other sites easily.
The main purpose of the "Flat Pack Container Camps" is to save time and cost.
With many more advantages, demountable camps are acting as a boon for labors.
Features of container labor hutments:
Affordable
High strength
Long lifespan
Lightweight
Corrosion resistance
Eco Friendly
The following design is used for 192 workers. The building is made of container houses, total 3 floors.
Each floor is equipped with public toilet and shower, there are stairs on both floors of the building.
| Specification: Standard Container | Length(mm) | 6000 |
| Width(mm) | 3000 | |
| Height(mm) | 2800 | |
| Roof Type | Flat Roof with drainpipes design | |
| Storey | ≦3 | |
| Design Data (standard) | Design Serrvice Life | 20 Years |
| Floor Live Load | 2.0 KN/m2 | |
| Roof Live Load | 0.5 KN/m2 | |
| Weather Load | 0.6 KN/m2 | |
| Seismic | 8 Degree | |
| Structure | Corner Post | Galvanized Cold Roll Steel, Material:Q235 |
| Roof Main Beam | Galvanized Cold Roll Steel, Material:Q235 | |
| Roof Purlin | Galvanized Cold Roll C Steel, Material:Q235 | |
| Floor Beam | Galvanized Cold Roll Steel, Material:Q235 | |
| Floor Purlin | Galvanized Cold Roll C Steel, Material:Q235 | |
| Metal Surface Treatment | Using powder spray painted. | |
| Roof | Roof Steel Sheet | Color steel sheet, Color: White-gray |
| Insulation | Glass wool, with single side aluminum foil, Class A fire rating ( Non-combustible) | |
| Roof Ceiling | Color steel sheet, Color: White-gray | |
| Floor | Floor Surface | PVC Floor Leather. Color:Customized |
| Floor Board | MGO Board, 18mm thickness | |
| Wall | Color Steel Sheet | PE Coated steel color plate |
| Core Material | Rockwool (Density:50kg/m3), 50mm thickness | |
| Door | Specification (mm) | W*H=950*2030 |
| Material | Steel Door | |
| Window | Specification (mm) | W*H=950*1100 |
| Frame Material | PVC Steel | |
| Glass | 0.35mm double glass | |
| Electrical | Voltage | 220v-250v |
| Electrical Wire | Electrical Wiring:1.5mm, 2.5mm | |
| Air Breaker | High breaking miniature circuit breaker | |
| Lamp | Ceiling Lamp, 24W |

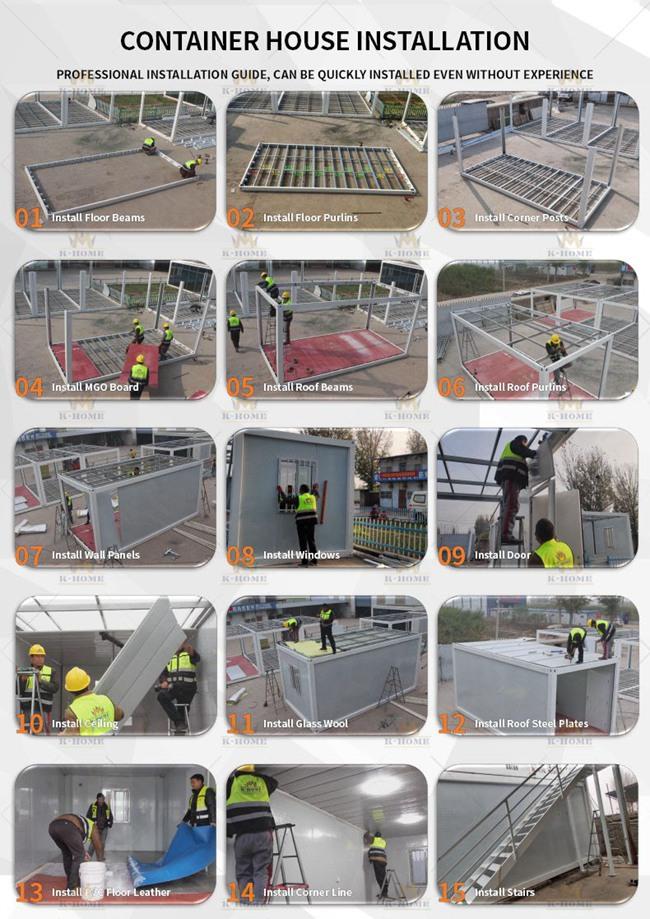

Installation Guide

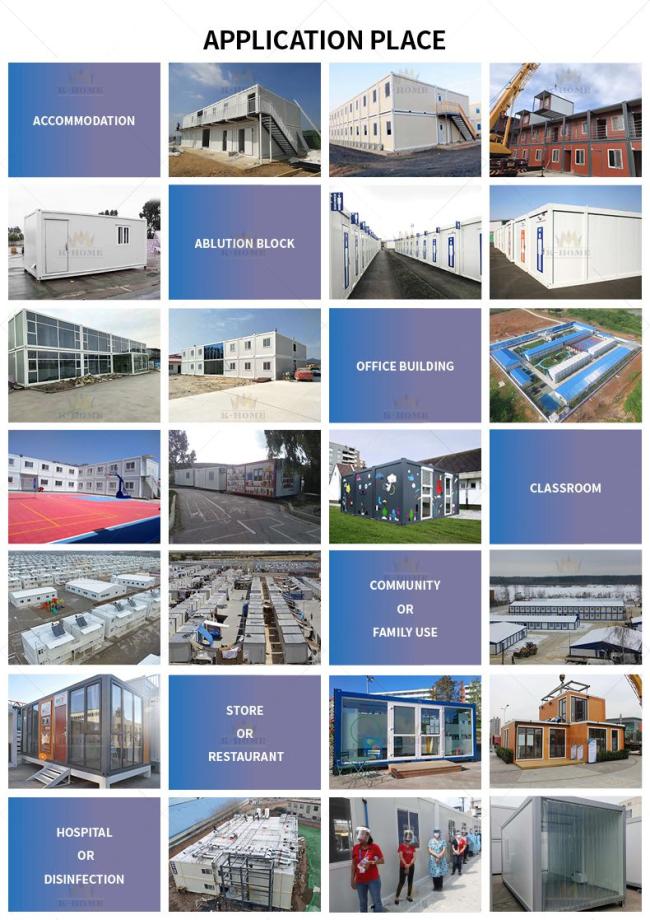

Project Show
