Portable Knockdown House For Mining Camp
Price:
USD2050/set~USD2100/set
MOQ:
4 sets
Delivery Time:
30 days
Brand:
KHOME
Product Description
Portable Knockdown House For Mining Camp

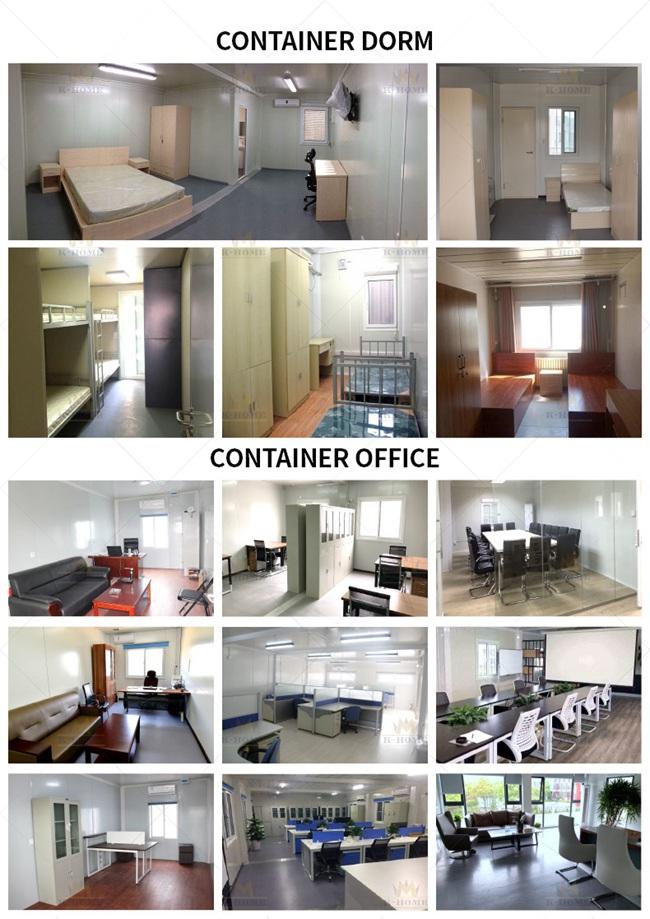

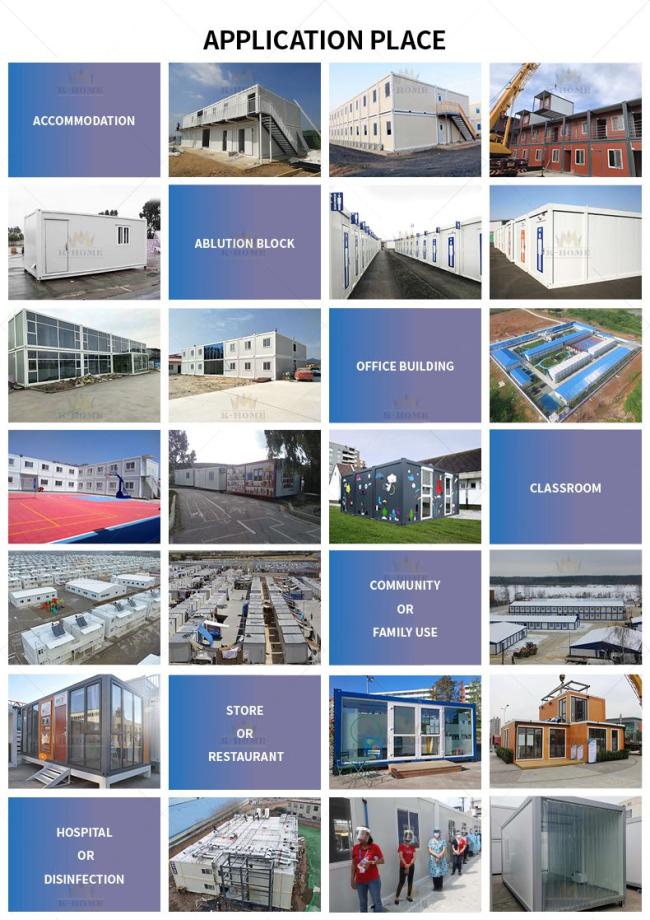

Our prefab container house has wide applications:
Labour Quarters
Kitchen Containers
Dining and Entertainment Containers
Laundry and Ablution Containers
Office Units
Medical Clinics
Detail Specification of Portable Container House
| Specification: Standard Container | Length(mm) | 6000 |
| Width(mm) | 3000 | |
| Height(mm) | 2800 | |
| Roof Type | Flat Roof with drainpipes design | |
| Storey | ≦3 | |
| Structure | Corner Column | Galvanized Cold Roll Steel, Material:Q235 |
| Roof Beam | Galvanized Cold Roll Steel, Material:Q235 | |
| Roof Purlin | Galvanized Cold Roll C Steel, Material:Q235 | |
| Floor Beam | Galvanized Cold Roll Steel, Material:Q235 | |
| Floor Purlin | Galvanized Cold Roll C Steel, Material:Q235 | |
| Metal Surface Treatment | Using powder spray painted. | |
| Roof | Roof Steel Sheet | Color steel sheet, Color: White-gray |
| Insulation | Glass wool, with single side aluminum foil, Class A fire rating ( Non-combustible) | |
| Roof Ceiling | Color steel sheet, Color: White-gray | |
| Floor | Floor Surface | PVC Floor Leather. Color:Customized |
| Floor Board | MGO Board, 18mm thickness | |
| Wall | Color Steel Sheet | PE Coated steel color plate |
| Core Material | Rockwool (Density:50kg/m3), 50mm thickness | |
| Door | Specification (mm) | W*H=950*2030 |
| Material | Steel Door | |
| Window | Specification (mm) | W*H=950*1100 |
| Frame Material | PVC Steel | |
| Glass | 0.35mm double glass | |
| Electrical | Voltage | 220v-250v |
| Electrical Wire | Electrical Wiring:1.5mm, 2.5mm | |
| Air Breaker | High breaking miniature circuit breaker | |
| Lamp | Ceiling Lamp, 24W |

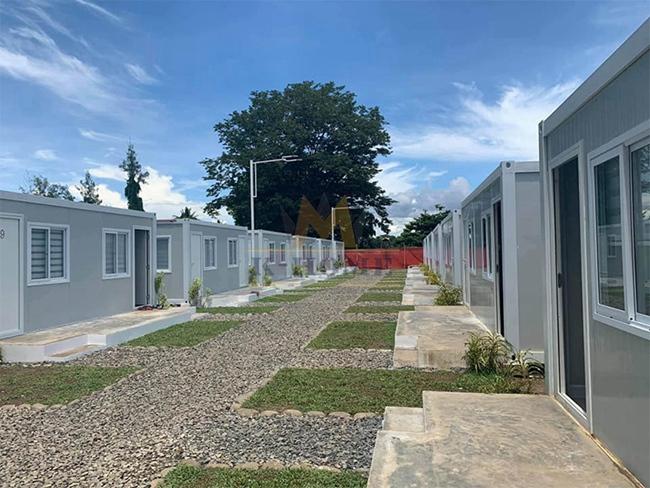

Project Case
