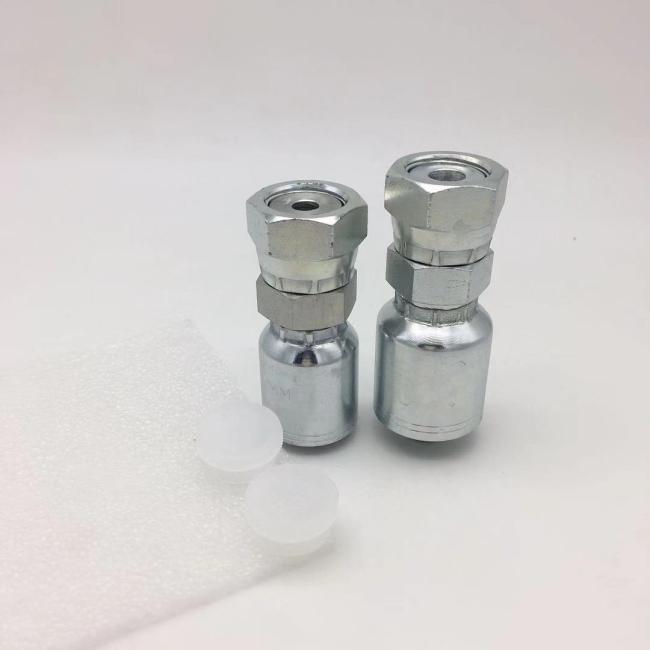

Parker 43 Series JIC Female Hydraulic Hose Fitting 74 Degree Cone Seal
Price:
be negotiation
MOQ:
100 Pieces
Delivery Time:
Negotiable
Brand:
YADE
Product Description
Product Name
Parker 43 Series JIC Female 74 Degree Cone Seal One Piece Fitting Hydraulic Hose Crimping Fittings One Piece Fitting
BSP thread with captive seal
hydraulic pressure hose
hydraulic hose coupling
hydraulic hose crimp fittings
| Part Number | Thread | Hose ID | Size A | Size B | Hexagon | Hexagon | Ferrule ID | Ferrule O.D | |||||||
| inch | inch | mm | mm | H | W | mm | mm | ||||||||
| 1JC43-04-04 | 9/16"*18 | 1/4 | 65 | 29 | 17 | 19 | 16.6 | 24 | |||||||
| 1JC43-06-06 | 11/16"*16 | 3/8 | 67 | 30.5 | 22 | 22 | 21 | 28 | |||||||
| 1JC43-08-08 | 13/16"*16 | 1/2 | 72.5 | 33 | 24 | 27 | 23.6 | 31.5 | |||||||
| 1JC43-12-12 | 1.3/16"*12 | 3/4 | 91 | 42.5 | 27 | 36 | 32 | 40 | |||||||
| 1JC43-16-16 | 1.7/16"*12 | 1 | 103 | 51 | 36 | 41 | 39.7 | 49 |
