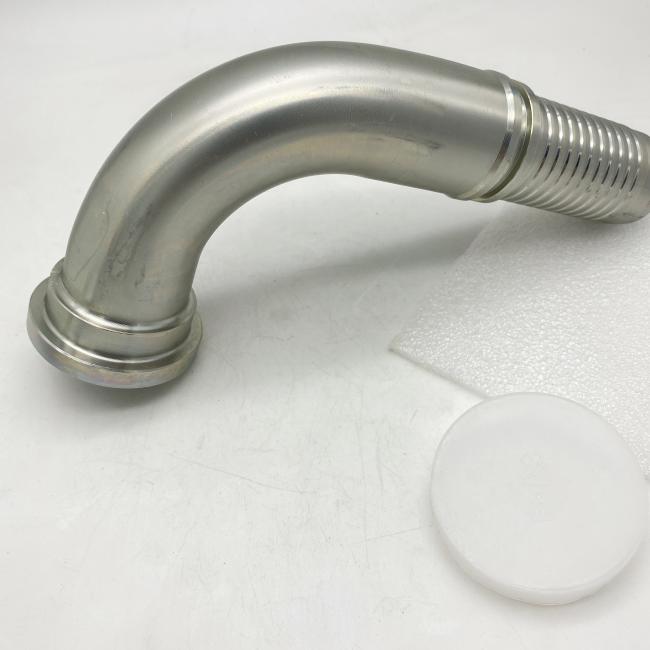

87392-16-16 90 Elbow Sae Hydraulic Hose Flange Fitting 3000 Psi

Price Negotiable

Price: be negotiation

MOQ: 100 Pieces

Delivery Time: Negotiable

Brand: YADE

Product Description

Product Name

87392-16-16 Reusable Hydraulic Hose Fittings 90 Elbow SAE Flange Hydraulic Flange Fitting 3000 PSI Hose Flange

		HOSE BORE		DIMENSIONS
PART NO.	FLANGE SIZE	DN	DASH	A	C	D	H	L
87392-08-08	1/2"	12	8	41	30.2	24	47	6.73
87392-12-08	3/4"	12	8	41	38.1	31.7	48	6.73
87392-12-10	3/4"	16	10	56.5	38.1	31.7	52.5	6.73
87392-12-12	3/4"	20	12	66.2	38.1	31.7	62	6.73
87392-12-12(H100)	3/4"	20	12	65.5	38.1	31.7	100	6.73
87392-12-12(H127)	3/4"	20	12	65.5	38.1	31.7	127	6.73
87392-12-12(H150)	3/4"	20	12	65.5	38.1	31.7	150	6.73
87392-12-16	3/4"	25	16	76.7	38.1	31.7	67.5	6.73
87392-16-12	1"	20	12	66.2	44.4	38	62	8
87392-16-16	1"	25	16	78	44.4	38	67.5	8
87392-16-16(H100)	1"	25	16	76.7	44.4	38	100	8
87392-16-16(H127)	1"	25	16	76.7	44.4	38	127	8
87392-16-16(H150)	1"	25	16	76.7	44.4	38	150	8
87392-16-20	1"	32	20	91.5	44.4	38	78.5	8
87392-20-16	1.1/4"	25	16	78	50.8	43	67.5	8
87392-20-20	1.1/4"	32	20	91.5	50.8	43	78.5	8
87392-20-20(H100)	1.1/4"	32	20	91.5	50.8	43	100	8
87392-20-20(H127)	1.1/4"	32	20	91.5	50.8	43	127	8
87392-20-20(H150)	1.1/4"	32	20	91.5	50.8	43	150	8
87392-20-24	1.1/4"	40	24	108.5	50.8	43	78.5	8
87392-24-20	1.1/2"	32	20	91.5	60.3	50	80.5	8
87392-24-24	1.1/2"	40	24	109.4	60.3	50	94	8
87392-24-24(H127)	1.1/2"	40	24	109.4	60.3	50	127	8
87392-32-24	2"	40	24	109.4	71.4	62	94	9.53
87392-32-32	2"	50	32	131.8	71.4	62	114.3	9.53
87392-40-32	2.1/2"	50	32	131.8	84.1	74.4	114.3	9.53

hydraulic hose fittings are production according the EATON standard ,in normal ,we used the carbon steel ,stainless steel and brass material ,if you have production quantities ,we can supply the material according to your requirement
