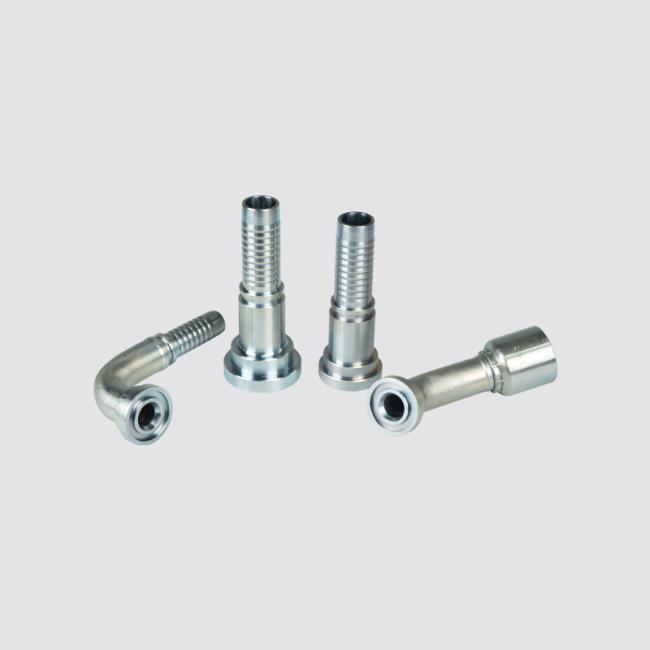

SAE 3000psi 1 Inch Hydraulic Hose Fittings Forged Flange
Price:
be negotiation
MOQ:
100 Pieces
Delivery Time:
Negotiable
Brand:
YADE
Product Description
Product Name
SAE flange 3000psi Hydraulic Hose End Fittings Forged Flange Hydraulic Hose Flange
SAE flange are production according the EATON standard ,in normal ,we used the carbon steel ,stainless steel and brass material ,if you have production quantities ,we can supply the material according to your requirement
| HOSE BORE | DIMENSIONS | ||||||
| PART NO. | FLANGE SIZE | DN | DASH | A | C | D | L |
| 87312-08-08 | 1/2" | 12 | 8 | 46 | 30.2 | 24 | 6.73 |
| 87312-12-08 | 3/4" | 12 | 8 | 47 | 38.1 | 31.7 | 6.73 |
| 87312-12-10 | 3/4" | 16 | 10 | 48 | 38.1 | 31.7 | 6.73 |
| 87312-12-12 | 3/4" | 20 | 12 | 48 | 38.1 | 31.7 | 6.73 |
| 87312-12-16 | 3/4" | 25 | 16 | 49 | 38.1 | 31.7 | 6.73 |
| 87312-16-12 | 1" | 20 | 12 | 51 | 44.4 | 38 | 8 |
| 87312-16-16 | 1" | 25 | 16 | 52 | 44.4 | 38 | 8 |
| 87312-16-20 | 1" | 32 | 20 | 53 | 44.4 | 38 | 8 |
| 87312-20-16 | 1.1/4" | 25 | 16 | 57 | 50.8 | 43 | 8 |
| 87312-20-20 | 1.1/4" | 32 | 20 | 58 | 50.8 | 43 | 8 |
| 87312-24-20 | 1.1/2" | 32 | 20 | 68 | 60.3 | 50 | 8 |
| 87312-24-24 | 1.1/2" | 40 | 24 | 68 | 60.3 | 50 | 8 |
| 87312-32-24 | 2" | 40 | 24 | 70 | 71.4 | 62 | 9.53 |
| 87312-32-32 | 2" | 50 | 32 | 70 | 71.4 | 62 | 9.53 |
| 87312-40-40 | 2.1/2" | 64 | 40 | 76 | 84.1 | 74 | 9.53 |
