87992 9000psi Hydraulic Hose Flange Fitting 90 Degree Elbow Sae
Price:
be negotiation
MOQ:
100 Pieces
Delivery Time:
Negotiable
Brand:
YADE
Product Description
Product Name

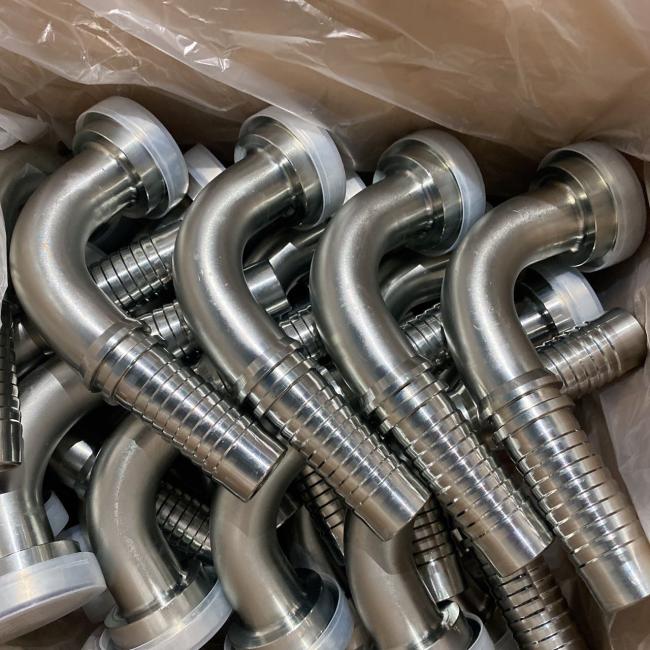

87992 9000PSI Flange Elbow SAE Flange Pipe Fitting 90 Degree Elbow SAE Hydraulic Hose Flange
| HOSE BORE | DIMENSIONS | |||||||
| PART NO. | FLANGE SIZE | DN | DASH | A | C | D | H | L |
| 87993-12-12 | 3/4" | 20 | 12 | 75 | 41.3 | 31.7 | 71.5 | 14.3 |
| 87691-16-12 | 1" | 20 | 12 | 75 | 47.6 | 38 | 73 | 14.3 |
| 87993-16-16 | 1" | 25 | 16 | 88.9 | 47.6 | 38 | 78.5 | 14.3 |
| 87691-20-16 | 1.1/4" | 25 | 16 | 88.9 | 54 | 43 | 79.5 | 14.3 |
| 87993-20-20 | 1.1/4" | 32 | 20 | 105.8 | 54 | 43 | 90.5 | 14.3 |
| 87993-24-20 | 1.1/2" | 32 | 20 | 105.8 | 63.5 | 50.8 | 91.5 | 14.3 |
| 87993-24-24 | 1.1/2" | 40 | 24 | 124.2 | 63.5 | 50.8 | 105 | 14.3 |
hydraulic hose fittings are production according the EATON standard ,in normal ,we used the carbon steel ,stainless steel and brass material ,if you have production quantities ,we can supply the material according to your requirement
