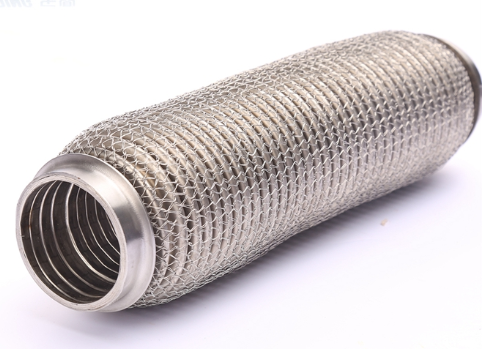

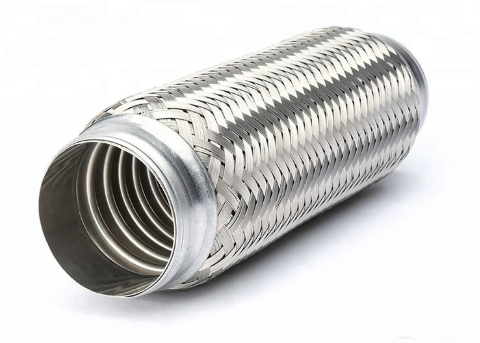

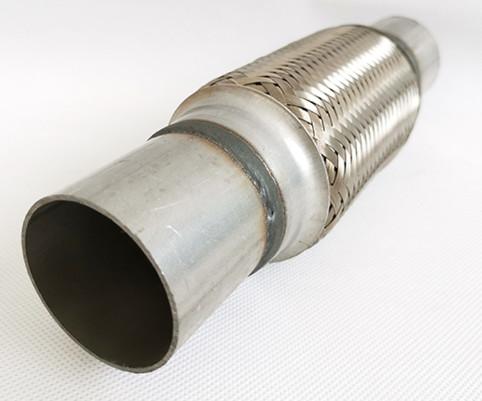

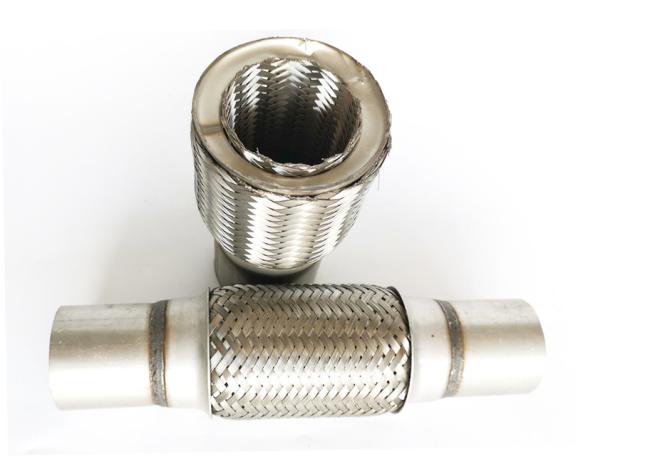

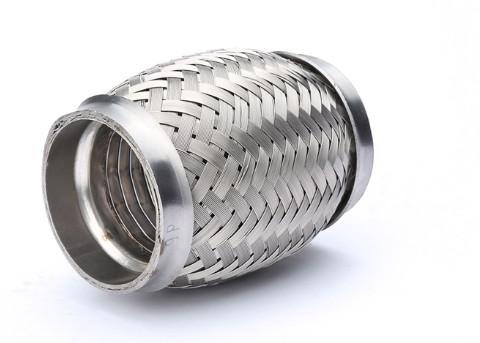

SS304 51mmx100mmx200mm Flexible Metal Exhaust Hose
Stainless Steel Exhaust Pipe Auto Muffler Flexible Exhaust Pipe
Products Details:
Stainless Steel Exhaust Pipe Auto Muffler Flexible Exhaust Pipe
Exhaust pipe auto muffler flexible exhaust pipe is flexible piece of pipe that allows the exhaust system some flexibility. We can make the model and dimension according your requirement. All flex pipes / connector is in right size to work with exhaust clamp like stainless steel V band clamp kit, U type bolted clamp and sleeve jointed coupling. You can weld the stainless steel V-band rings to them to combine with aluminum components, or you can weld directly to your stainless steel pipes.
- Inner braid and outer braid
- Smooth welding
Specification:
The following list are standard sizes for reference. Customized dimension are acceptable as requirement.
| Inner Diameter (ID) | Flex length(L) | Overall length(L) | |||
| Inch | mm | Inch | mm | Inch | mm |
| 1-3/4" | 45 | 4" | 102 | 8" | 203 |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10" | 254 | 14" | 356 | ||
| 48 | 4" | 102 | 8" | 203 | |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10" | 254 | 14" | 356 | ||
| 2" | 50.8 | 4" | 102 | 8" | 203 |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10" | 254 | 14" | 356 | ||
| 54 | 4" | 102 | 8" | 203 | |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10 | 254 | 14" | 356 | ||
| 2-1/4" | 57.2 | 4" | 102 | 8" | 203 |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10" | 254 | 14" | 356 | ||
| 2-1/2" | 63.5 | 4" | 102 | 8" | 203 |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10" | 254 | 14" | 356 | ||
| 3" | 76.2 | 4" | 102 | 8" | 203 |
| 6" | 152 | 10" | 254 | ||
| 8" | 203 | 12" | 305 | ||
| 10" | 254 | 14" | 356 | ||
Feature:
1. Provides vibration control on exhaust system
2. An economical repair option without having to replace entire exhaust assemblies.
3. Offered in a variety of styles and sizes for your installation needs
4. Stainless Steel Construction for durability and corrosion resistance
Related products:
Stainless steel bellows + outer stainless steel wire braid
Stainless steel bellows + Interlock + Outer stainless steel wire braid
Stainless steel bellows + wire mesh
Packaging and Delivery:
Fast delivery: in 5-8 days
Lead time for new production: No more than 30 days
Shipping terms: EXW FOB CIF
Packing methods: Plastic bag for each product, seaworthy carton and woven bag with pallet or not.
We supplied exhaust flex pipe in hundreds of designs to fit customer's requirement. Please kindly inform us your need. The best offer will be supplied soon.
