2" 304 Grade Iso Passed Stainless Steel Muffler Clamps

Price Negotiable
Price: 1.9
MOQ: 20pcs
Delivery Time: In 3 days if stocks available
Product Description

Good description:

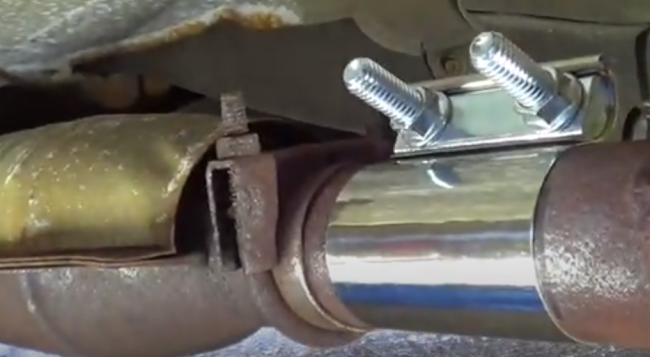

Exhaust band clamp is using high- strength fasteners providing real sealing capability with leak free and provides 360 degree full clamping area to generate overall sealing force without distorting exhaust pipe, exhaust muffler ends and exhaust tubing in exhaust sytem connection.



An effective alternative for joining exhaust system components without the need for pipe sizing or slotting. Provides a serviceable joint — no permanent distortion of exhaust members.



Product name Exhaust Sleeve Butt Joint Clamp Exhaust OD Pipe Sleeve Coupler Step Clamps
Size choice 2.0" 2.25" 2.5" 3.0" 4.0" 5"
Materials of band Stainless steel 304
Fasterners Galvanized steel grade 8.8 / 9.8 / 10.9 /12.9 are all available
Application exhaust pipe / muffler / catalytic converters connection
Features:
  1. Stainless steel material, not easy to rust.
  2. corrosion resistance.Joint your exhaust tubing together quickly without welding.
  3. Arc curved face,capability prevent exhaust gas and noise leaks. Exhaust band clamp is removable and reusable.
  4. he reaction block provides a full 360 °equal distribution of stretching forces, prohipiting pipe distortion while complesing a seal round the joined exhaust components.



Main market  USA, Canada, Europe etc.















Available specification of butt joint band clamp



MODEL NUMBER Dia(mm) Dia(in)
YP-EXFBC020 51 2"
YP-EXFBC225 57 2.25"
YP-EXFBC250 64 2.5“
YP-EXFBC275 70 2.75”
YP-EXFBC300 76 3“
YP-EXFBC350 89 3.5”
YP-EXFBC400 102 4“
YP-EXFBC450 114 4.5”
YP-EXFBC500 127 5“





Packages of butt joint band clamp:







Advantages of butt joint band clamp



  • Butt joint band clamps is a simple, effective way to connect exhaust system components such as pipes, mufflers and catalytic converters. Unique seal and high clamp loads are provided without distorting your exhaust components, allowing the flexibility to disassemble for service.
  • Distributes the clamping force evenly over the entire 360° to prevent leaks and control material distortion. Easy and less time consuming to install or remove with one bolt. Features T-304 band stainless steel and aluminized steel hardware.
  • The band clamp is a wide strap of metal, typically stainless, which wraps around the exhaust pipe joint. Our product is a pre-formed ring, also, it is now more commonly used in higher-end aftermarket exhaust systems using slip-fit, because they are relatively cheap, and are reusable without damaging the pipes.
  •



Application of butt joint band clamp



  • Perfect for Catback Exhausts, Mufflers, Catalytic converter, Downpipes, Headers, Manifolds.
  • Cases No Damaging Distortion to Pipe or Flex Hose.
