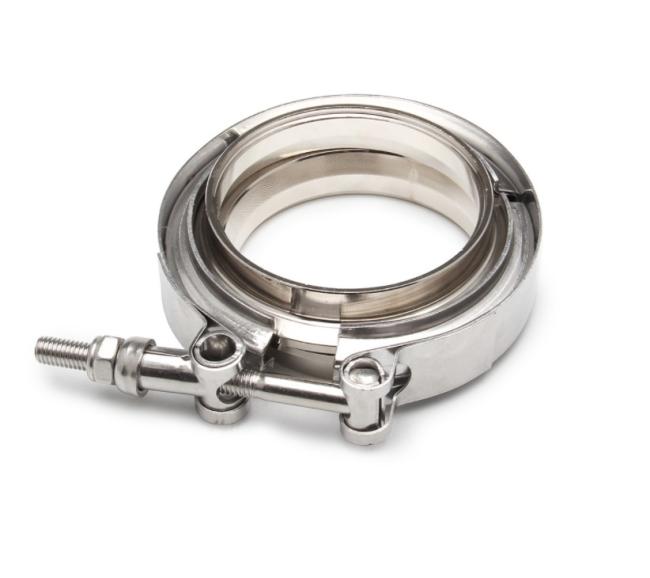

Hose 2.25" V Band Exhaust Clamp Quick Lock Ss 304
V Band Exhaust Hose Clamps
Description:
V-band clamps can be used to hold almost any flanged joints together. From light duty to the most demanding purpose, these clamps are produced in a wide range of materials for any application that requires a leak-free, easy to use restraint device.
1) Band Width: 8mm(5/16")
2) Sizes: 8-12mm to 16-25mm (customized sizes acceptable)
3) Band Thickness: 0.6mm
4) Materials: 201/301/304/316 stainless steel
5) Best service: quick feedback, on time delivery, refund or replacement for any product faulty
6) OEM order is accepted.
Butt welding,each welding spot can bear tension of 150KG.
Clear screw thread & thread galling free.
Two types of latches, standard and quick release for option.
stainless steel T-bolt clamps, Barrel hardware clamps,V-band clamps/ coupling and flanges, etc. We serve commercial and industrial companies in a wide variety of markets ranging from the automative industry to the waste water treatment industry.Our ability to offer top quality products, design engineering expertise, friendly customers service, and on-time delivery make Palmergrip the best choice for all of your fastening applications. Our heavy duty clamp series are outstanding to serve in some special applications like high tempreture (1200F), high vibration (4G) applications.
Specification sheet of v band clamp:
| No. | Products |
Spec (Inch) |
Flange ID(mm) |
| 1 |
Standard V band clamp kits |
1.50" | 38.9 |
| 2 | 1.75" | 45.2 | |
| 3 | 2.00" | 51.6 | |
| 4 | 2.25" | 57.9 | |
| 5 | 2.36" | 60.5 | |
| 6 | 2.50" | 64.3 | |
| 7 | 2.75" | 70.6 | |
| 8 | 3.00" | 77.0 | |
| 9 | 3.25" | 83.3 | |
| 10 | 3.50" | 89.7 | |
| 11 | 4.00" | 102.4 | |
| 12 | 4.50" | 115.1 | |
| 13 | 5.00" | 127.8 | |
| 14 | 6.00" | 153.2 |
Packaging :
10pieces into a plastic bag, then 50 pieces into a carton.
Customized packing requirement could be met too, single packing also workable, cost will be added as actual order quantity.

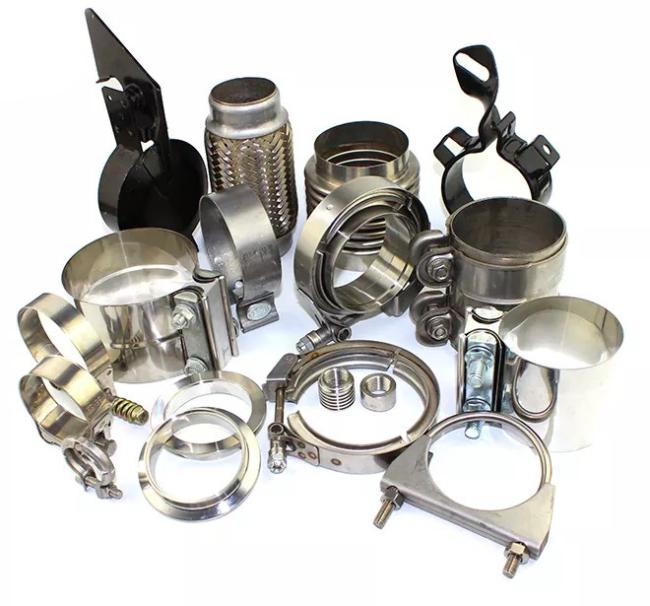

More Exhaust Parts and Clamps:
| Our Advantages: |
| 1)We are original manufacturer of hose clamp, it means we could offer products with more quality assurance but with better price. |
| 2) We have our own technology research and development department, and have the ability to open mold for the late-model products, it decide our leading role in the clamp industry. |
| 3)We could offerbetter delivery time to the customers. |
| 4)We have long-term cooperate suppliers of raw material and packages, it is powerfully guaranteed the quality and stability |
| 5) We also set up quality testing department, to control the products further. |
| 6)We also offer after-sales service to the new and old customers, if you find the products damaged or short for our cause, we would repair and supplement them, or we could talk about compensation method together. |
