Carbon Steel Wide Tension Clip For Dust Collection Round Ductwork 150mm - 600mm OEM Size As Request

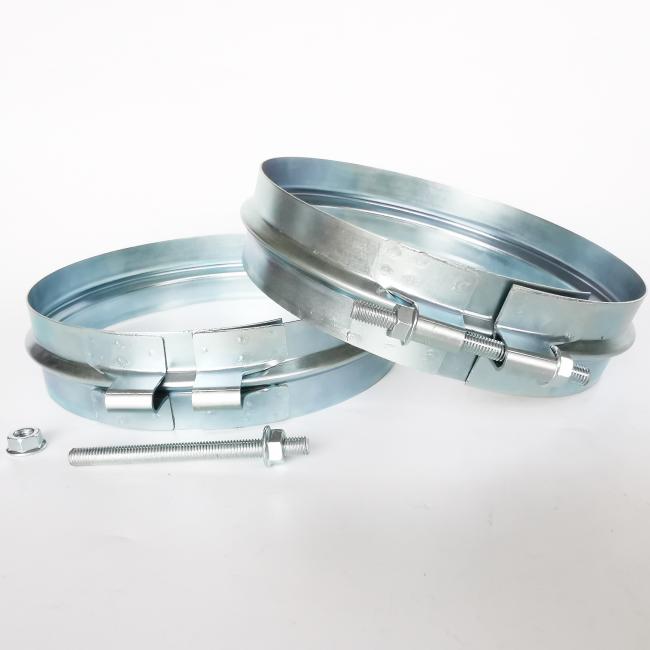

The wide pull ring is made of superior carbon steel with electro-galvanzing and structured by 1 piece or 2 pieces of bands with bolt connection. It can be open and closed easily without any tools. Wide clamp used for connection of duct of 1mm or 1.2mm. widely applied in dust collection, air filtration, and particle conveying.

Specification of wide clamp ring:

Application of wide clamp ring:

• Used for larger Diameters duct.
• This clip is used to join to Clip system ducts together Can be used with rubber seal to decrease the pressure loss in the duct.
• Designed in two pieces for fast easy fixing capabilities.
• Fixing info:- Place tension clip over the two joints and tighten with the supplied screws.
• It was widely used in followed ductworks:

​

1. ​Dust Removal, some factories produce a lot of dust in the workshop,which requires special dust removal devices, where the wind flow is large and the modular pipe system can be used. Clamp is the main role of ducting.​
2. Bulk material handing, some of the factory production process, the need to transport loose particles, especially the small proportion of such foam plastic grain using modular piping system, clamp ring is low cost, good effect, in addition, it is more convenient to maintain and save working time.​
3. Except the usage of pipes and ducts, clamps are widely applied in vehicles, ships, diesel engine. gasoline engine, machine tools, fire protection etc. All kinds of mechanical equipment, chemical equipment, ordianary ruber hose,n ylon plastic hose, fabric hose, outlet connetion fastening and sealing

​

Packaging of wide clamp rings:

Wooden case for multi-sizes

Relative modular ducting from us:

Please contact Lily zhang for details. I am working here from 8:00 am to 5:00 pm on Monday~Friday.
