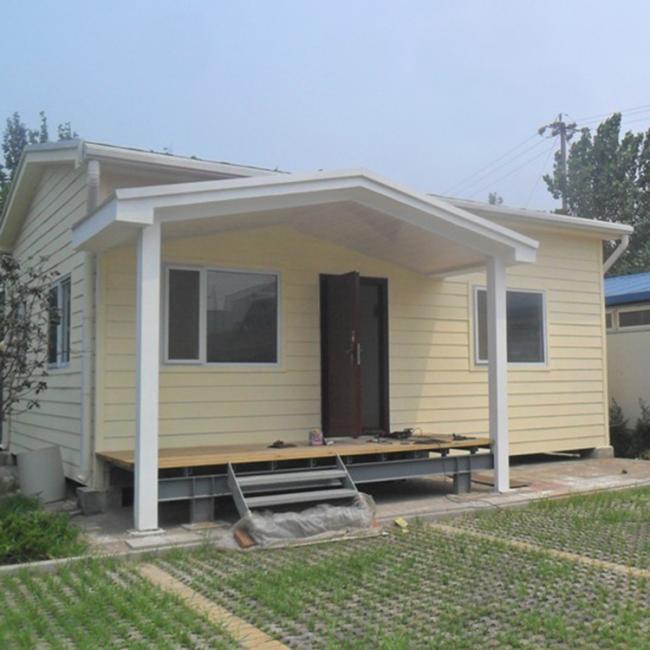

Beach Portable Light Gauge Steel House Prefabricated 3 Floors Free Design
Light Gauge Steel Structure Frame Beach Portable House Prefabricated Villa With Free Design
Advantages:
(1). Environment protective, no garbage caused
(2). Doors, windows and interior partitions can be flexibly fixed
(3). Beautiful appearance, different colors for the wall and roof.
(4). Cost saving and transportation convenient
(5). Anti-rust and normally more than 15 years using life
(6). Safe and stable, can stand 8 grade earthquake.

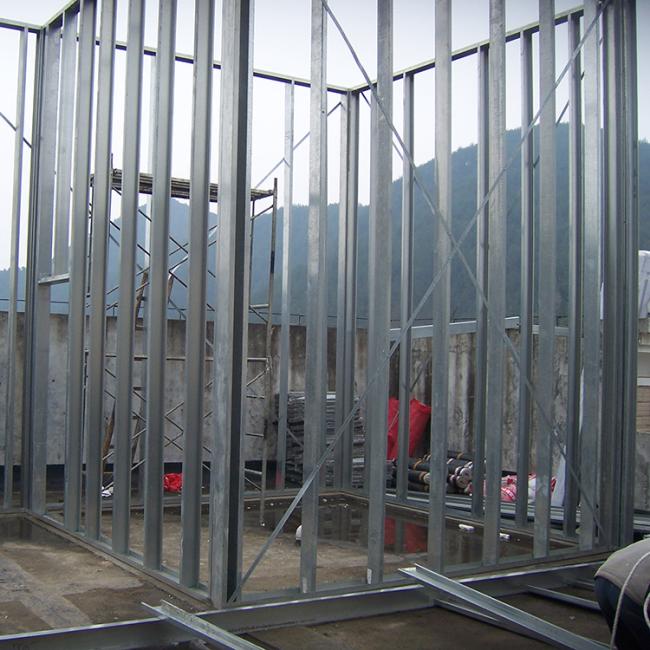

| 1. Main Steel Frame | |
| Steel column | Fabricated by Q235 or Q345 Steel, 80*80 or 100*100 or 120*120 or 150*150 Square Tube, alkyd paiting, two primary painting, two finish painting. |

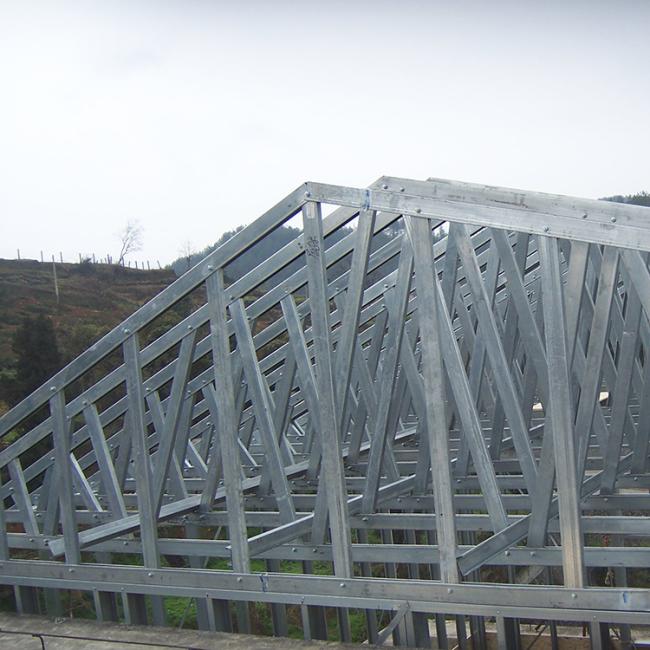

| Triangular Steel structure roof | Fabricated by Q235 or Q345 Steel, C80, C100, C120, C140 Section steel, alkyd paiting, two primary painting, two finish painting. |
| Roof Purlin | Fabricated by Q235 Steel, C80, C100, C120, C140 Section steel, alkyd paiting, two primary painting, two finish painting. |
| Ordinary bolt | 4.8S, Galvanized |
| 2. Roof and Wall | |
| Roof Panel |
A: Insulated Steel Sandwich Panel wall
|
| Wall Panel |
A: Insulated Steel Sandwich Panel wall
|
| Edge Cover | 0.4mm galvanized color steel , angle Alu. |
|
Fasteners & Accessoreis |
Nailsglue ect |
| 3. Ceiling&Flooring | |
| Ceiling | 6mm gypsum board,with steel keel |
| Plywood | 18mm film faced plywood |
| Floor feather | 1.5mm PVC floor leather |
| Door and window | |
| Door | (1) External door: Single open door. Insulated with opening dimension 950*2100mm, furnished with lock with 3keys. (2) Inner door: Single open door. Insulated steel door. |
| Window | 4mm glass PVC window witn flying screem |
| 4. Electrical System | |
| Electric Cable | (1) Three diferent color. (2) Lighting: 2.5m m2. (3) Air condition: 4.0mm2. (4) BV cable, solid core. |
| PVC Wire Channel | PVC wire channel |
| Lights | Double tube fluorescent lamp, 220V,50-60HZ |
| Switches | Single Switch, with junction box |
| Socket | 16A five hole univesal socket. |
| Power Distribution Cabinet | Box+breakers+earth leakage protective device |
| 5. Water&Plumbing system(choose) | |
| Water drain pipe | (1) PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years. (2) Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC |
| Sanitary ware | (1) Western Close tool: ceramic, with pipes and installation fittings (2) Urinal: ceramic, with pipes and installation fittings (3) Wash basin: ceramic, with post, faucet, pipes and installation fittings (4) Shower head, Shower base, Water mixture |
| 6. Plumbing System and Rain Water Drainage System as per building design | |
