Steel Material Prefabricated Modular House For Worker Labor Camp Wooden Door
Steel Material House For Worker Labor Camp Light Steel Frame Prefabricated House Prefabricated Modular Homes
| Item | Details |
| Structure | Q235/Q345/Q500/Q550 Glavanized Steel |
| Steel Thickness | 0.8-1.5mm.Width 89cm |
| Beam distance/Pillar distance | 400mm/600mm |
| Galvanized quantity | 275g/sqm |
| Wind resistant | 12 Grade |
| Seismic Resistance | 7 Grade |
| Lifespan for structure | 90 Years at less |
| Floor load capacity | 250-500kgs/sqm |
| Sound Resistant | |
| Genaral Lifetime | 70 years |
| Connection way | Boltsl connection |
| Plumbing and electricity | |
| Installation | 100sqm Double stories frame can be install in 15 days with 6 worker |

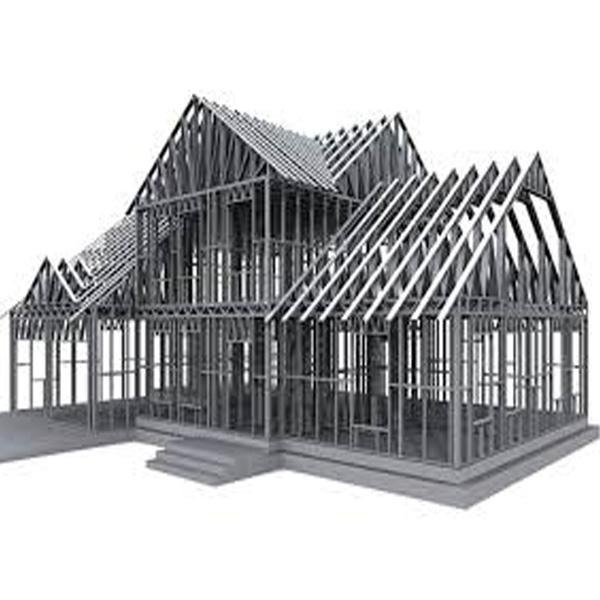

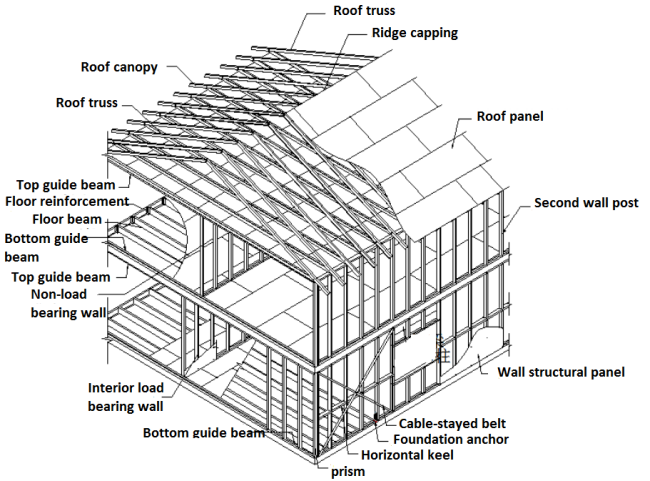

(1) Steel Structure
Light Guage Steel House is more stable than the one that made of welding frame steel . Besides, it is cheaper, more economic. With long lifespan, which can last a50-70 years, all the materials of light guage steel House is Q550. It is locked with bolts, which can be used repeatedly without any maintenance.
(2) Flooring
Decoration:PVC flooring,carpet,laminated flooring ,solid wood flooring
Floor:Plywood ,galvanized deck +concrete,calcium silicate board
Insulation layer:glass wool
Floor purlins:rectangular pipes and C-shaped steel
Floor beam:rectangular tube,pipe truss,truss angles ,hot-rolled steel H
Ceiling:calcium silicate ceiling
(3) Windows and Doors
Windows: Double glazing plastic-steel or aluminum alloy thermal-insulating frames
Doors: steel security gate doors; wood or molded doors
(4) Composite Wall System (thickness:150-250mm)
Decorative layer :PVC cladding ,PU metal cladding ,single metal cladding ,calcium silicate board
Insulation:EPS sandwich panel,PU sandwich panel ,glass wool sandwich panel
Ring beam:Cold rectangular tube ,pipe truss.
Steel column:Cold rectangular pipe,hot rolled steel H
(5) Roofing System
1. Asphalt tile
2. Cement tile
3. Clay tile
4. Color steel tile
5. Glass fiber tile
