Modern Light Steel Prefab House With Basement / High Rise Light Steel Villa House
Price:
USD180-USD250 per square meter
MOQ:
50 square meters
Delivery Time:
Negotiable
Brand:
Sussman
Product Description
Modern Design High Rise Light Steel Frame Prefab Apartment Houses Building

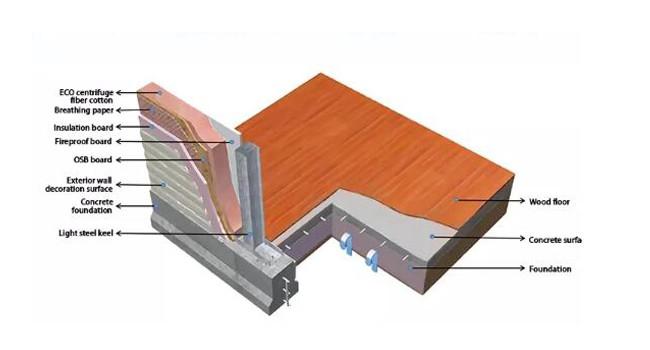

[Foundation]
The main forms of foundation are pile foundation, strip foundation, box foundation, light steel keel pile foundation and strip foundation. (Please contact us for the details of the basic part, and we will arrange technical staff to answer for you.)

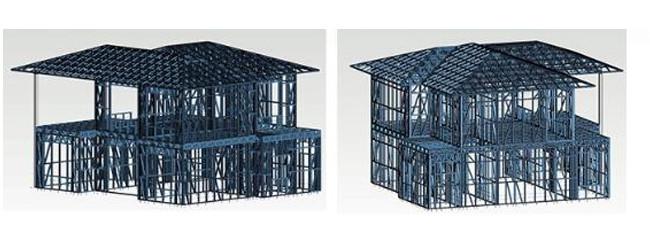

[Subject structure]
The steel structure system adopts Q345 steel, 1.0-1.8 mm thin-walled light steel keel system, and the structural connectors adopt 2.0 mm thick galvanized steel firmware.
| A | Light Steel stucture Villa Material List(many other options available) | ||
| 1 | Cold-formed Aluminum coating steel | kg | AZ150,G550 |
| 2 | Accessories of steel structure | m2 | SGC440,Z275 |
| B | External wall system | ||
| 1 | Fiber cement wood grain board | m2 | 3000*210*8mm |
| 2 | Vapor barrier | m2 | |
| 3 | OSB board | m2 | thickness:12mm |
| 4 | Wall fiber glass insulation | m2 | 100mm, 16kg/m3 |
| 5 | Gypsum board (inside of external wall ) | m2 | 2400*1200*12mm |
| 6 | Dry finish | m2 | |
| 7 | Waterproof material | m | 1.2mm |
| C | Internal wall system | ||
| 1 | Gypsum board | 2400mm*1200mm*12mm | |
| 2 | Fiber cement board (kitchen and bathroom) | 2440*1220*10mm | |
| 3 | Wall fiber glass insulation | 100mm, 16kg/m3 | |
| 4 | Dry finish | ||
| D | Roof & Ceiling system | ||
| 1 | Steel roof | m2 | Colorbond |
| 2 | Zinc metal tile battens | kg | |
| 3 | Waterproof material | m2 | 1.2mm |
| 4 | OSB board | m2 | thickness:12mm |
| 5 | Roof fiber glass insulation | m2 | 100mm, 16KG/m3 |
| 6 | Gypsum board for ceiling | m2 | 2400mm*1200mm*12mm |
| 7 | Cornice and kitchen and bathroom ceiling | m2 | 0.5mm K-140 steel panel |
| 8 | Steel gutter system | m | |
| E | Doors and windows | ||
| 1 | Exterior safety door | m2 | |
| 2 | Interior MDF door | set | |
| 3 | Aluminum glass sliding door | m2 | Australian Standards/EU standards |
| 4 | Aluminum glass windows | m2 | Australian Standards/EU standards |
