SGLC Steel Cabin Modular Prefab Steel Homes Fire Prevention
Light Steel Villa Prefab House Steel Structure House Portable Prefabricated Luxury Homes Cheap Modular House

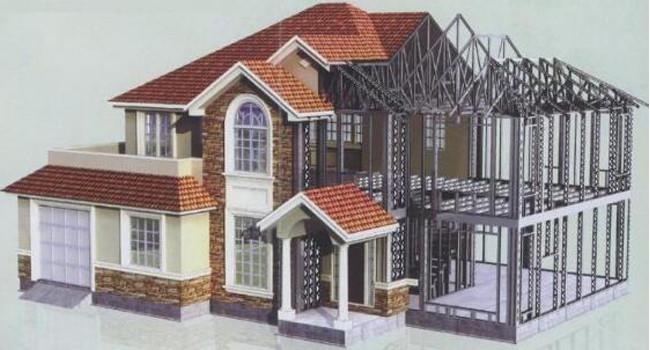

In cold rolled galvanized or SGLC steel as the main load-bearing structure,combined thermal insulation, sound insulation, waterproof, fire prevention. etc,built a functional diversity,energy conservation and environmental protection housing.The housing components can be all producted in factory,only assembly at the scene,is one of the more mature system of an integrated building.Also the developing direction of future residential construction.
| A | Light Steel stucture Villa Material List(many other options available) | ||
| 1 | Cold-formed Aluminum coating steel | kg | AZ150,G550 |
| 2 | Accessories of steel structure | m2 | SGC440,Z275 |
| B | External wall system | ||
| 1 | Fiber cement wood grain board | m2 | 3000*210*8mm |
| 2 | Vapor barrier | m2 | |
| 3 | OSB board | m2 | thickness:12mm |
| 4 | Wall fiber glass insulation | m2 | 100mm, 16kg/m3 |
| 5 | Gypsum board (inside of external wall ) | m2 | 2400*1200*12mm |
| 6 | Dry finish | m2 | |
| 7 | Waterproof material | m | 1.2mm |
| C | Internal wall system | ||
| 1 | Gypsum board | 2400mm*1200mm*12mm | |
| 2 | Fiber cement board (kitchen and bathroom) | 2440*1220*10mm | |
| 3 | Wall fiber glass insulation | 100mm, 16kg/m3 | |
| 4 | Dry finish | ||
| D | Roof & Ceiling system | ||
| 1 | Steel roof | m2 | Colorbond |
| 2 | Zinc metal tile battens | kg | |
| 3 | Waterproof material | m2 | 1.2mm |
| 4 | OSB board | m2 | thickness:12mm |
| 5 | Roof fiber glass insulation | m2 | 100mm, 16KG/m3 |
| 6 | Gypsum board for ceiling | m2 | 2400mm*1200mm*12mm |
| 7 | Cornice and kitchen and bathroom ceiling | m2 | 0.5mm K-140 steel panel |
| 8 | Steel gutter system | m | |
| E | Doors and windows | ||
| 1 | Exterior safety door | m2 | |
| 2 | Interior MDF door | set | |
| 3 | Aluminum glass sliding door | m2 | Australian Standards/EU standards |
| 4 | Aluminum glass windows | m2 | Australian Standards/EU standards |
Basic technology features:
1. High structural stability
2. Commercial process
3. Fast building
4. Fit for any kinds of groundsill
5. Construction with little influence of climates
6. Personalized housing inside design
7. 92% useable floor area
8. Diverse appearance
9. Comfortable and energy saving
10. High repeating utilization factor of stuff
