0.5T/H 64 Channel glutinous Rice Mill Colour Machine 99.9 accuracy
Price:
$6,500.00
MOQ:
>=1 Sets
Delivery Time:
Negotiable
Brand:
Nage
Product Description
64 Channel Rice Sorting /Corn Colour Sorter Manufacturing In China
Product Description
Product Parameter
| model | 6SXM-64 | 6SXM-128 | 6SXM-192 | 6SXM-256 | 6SXM-384 |
| chutes, No. | 64 | 128 | 192 | 256 | 384 |
| product output | 0.5-1.5 | 1.0-2.5 | 2.0-4.5 | 3.0-6.5 | 4.0-10.0 |
| sorting accuracy | 99.9 | 99.9 | 99.9 | 99.9 | 99.9 |
| optimized carryover | 8:1 | 8:1 | 8:1 | 8:1 | 8:1 |
| weight(kg) | 320 | 510 | 690 | 870 | 1230 |
| minium identification | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
| power (kw) | 1 | 1.5 | 2 | 2.5 | 3.5 |
| power supply (v/hz) | AC220/50 | AC220/50 | AC220/50 | AC220/50 | AC220/50 |
| Dimension (l*w*h)mm | 910*1476*1629 | 1414*1536*1726 | 1724*1536*1690 | 2085*1536*1690 | 2715*1536*1690 |
1.The above data is based on the 5% contamination glutinous rice material, the real output depends on different materials and its contamination.
2.If products update, no further notice. Please refer to the real machine.
2.If products update, no further notice. Please refer to the real machine.
Accepted Reject
Product Paramenters
Lens and image acquisition
1.CCD true color selection technology, high-definition color identification, high-speed sorting, more accurate identification.
2.5400pixels High Precision Professional Lens Ensure Image Clarity and Accuracy. The highest resolution is as high as 0.02mm2, which can accurately identify tiny flaws and spots in materials.
LED light source
1.The newly designed LED light source has high brightness, long service life and good heat dissipation, and can meet the color selection of various materials and colors.
2.Different materials do not need to replace the light source.
Image processing algorithm
1.Powerful image processing algorithm, using color selection plus shape selection combined algorithm, can accurately identify the material color and shape
2.Photo capture technology and high-definition imaging technology, can define color selection of materials and colors
channel
1.Special anodizing process, large output and uniformly laying-off.
2.Can be equipped with waterfall flat plate and narrow chute channel to meet the color selection of different materials
Solenoid valve
1.High quality solenoid valves imported from home and abroad are available for customers to choose independently.
2.High quality solenoid valve is adopted, with high frequency and long service life. At the same time of ensuring the output, reduce the carrying-out ratio.
human-computer interface
1.The powerful software operating platform is simple to operate and easy to learn.
2.Support for multiple languages, support for saving and switching of multiple color selection modes
Examples of Sorting
Company Introduction
HEIFEI BRANAGH PHOTOELECTRIC TECHNOLOGY CO.,LTD focuses on the development and production of intelligent color sorting machine , with a large independent office team and production factory
As a large-scale color sorting machine production and research base in East China,Global business has developed to 26 countries and regions in South America,Africa, Eastern Europe and Southeast Asia, the company has a group of outstanding technicians who have worked in the color sorting industry for many years, and constantly develops and updates high-quality color sorters.
Welcome to visit and discuss cooperation

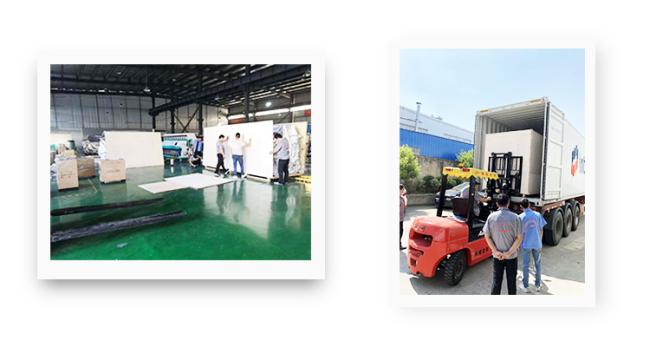

Packing&Shipping
After Sales Service
1.We provide customer with one year free repair and maintenance for complete machine.
2.We also provide lifetime professional training and technical guidance service.
2.We also provide lifetime professional training and technical guidance service.
FAQ
1.Q:How about engineers service oversea?
A:Engineers available to service machinery overseas.
2.Q:How to use the machine?
A:We will supply customer the installation catalog or video online.We will ask our engineer to teach you, how to use when he go to your country to debug the machine.
3.Q:How about the sample machines for testing?
A:Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard).We send our video to you.
4.Q:How about the guarantee period?
A:One year.
5.Q:Will you accept L/C as payment?
A:L/C ,T/T is OK
6.Q:Do you have any other spare parts for the customer?
A:Yes,we will supply you some spare parts.
7.Q:Which machine will work together with our color sorter which you can supply?
A:Air compressor,Air tank,Air filters,Air dryer,Light sources,Cleaning brushes,etc
A:Engineers available to service machinery overseas.
2.Q:How to use the machine?
A:We will supply customer the installation catalog or video online.We will ask our engineer to teach you, how to use when he go to your country to debug the machine.
3.Q:How about the sample machines for testing?
A:Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard).We send our video to you.
4.Q:How about the guarantee period?
A:One year.
5.Q:Will you accept L/C as payment?
A:L/C ,T/T is OK
6.Q:Do you have any other spare parts for the customer?
A:Yes,we will supply you some spare parts.
7.Q:Which machine will work together with our color sorter which you can supply?
A:Air compressor,Air tank,Air filters,Air dryer,Light sources,Cleaning brushes,etc
