220v Disposable Non Woven Mask Making Machine One Year Warranty

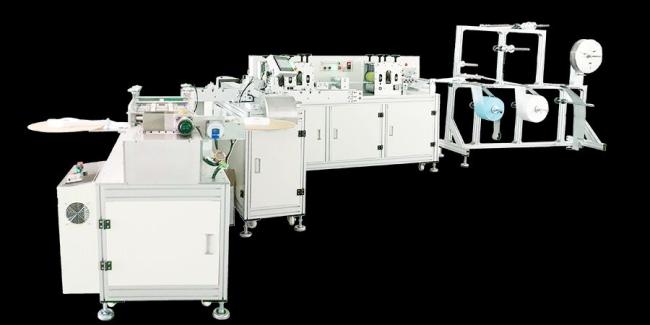

 Disposable Surgical Medical Face Mask Making Machine

XZFMMM0002= 1 mask body machine + 1 ear band welding machine

(From roll material tomask finished product, fully automatic, only one person is responsible for loading and unloading)

First, automatic mask body machine


1. Introduction to equipment

The automatic mask body machine is mainly used for the automatic forming of flat plane masks. After the entire roll of fabric is
unrolled, it is driven by rollers.Thefabric is automatically unfolded by automatic hemming, hemming, and the nose bridge. In
both sides, the sealing is achieved by ultrasonic welding on both sides. After the ultrasonic side sealing, cuttingisperformed by
a cutter, and thewhole process is automatically controlled. Only one person is required to operate this machine. The scientific
and reasonable mechanicaltransmission configuration makes this machine extremely efficient. The special welding wheel and
cutter wheel design have good abrasion resistance and greatly increase the service life of the product.

2. Equipment installation and configuration requirements
Equipment size: 3500mm (L) x 1100mm(W) x 2100mm (H);
Equipment weight:1600KG
Working voltage: AC220V,50 / 60HZ, rated power: 4KW
Compressed air: 0.5-0.7Mpa
Operating environment: temperature 10-35 ℃, humidity 5-35% HR, no flammability, corrosive gas, no dust (cleanness noless
than 100,000)

3. Equipment characteristics
The machine adopts aluminum alloy structure, small size, stable operation and low scrap rate;
Equippedwith photoelectricdetection and automatic counting, which can control the production speed and high output;
It can produce 100 pieces per minute, and can produce (3-6 layers) multilayer masks.

Second, fully automatic external ear mask welding machine


1. Introduction to equipment

The automatic outer ear mask welding machine uses an ultrasonic welding method to fuse the ear band (elastic band) to
the outside of the mask body sheet to form a complete mask device. It is the last process in the productionof earband masks.
Theequipment uses a conveyorchain to place the mask body in the fixture one by one, and it is fullyautomated.


2. Equipment installation and configuration requirements

Equipment size: 1500mm (L) x 700mm (W) x 900mm (H);
Equipment weight:600 KG;
Working voltage: AC220V 50 / 60HZ, rated power: 4KW;
Compressed air: 0.5-0.7Mpa;
Operating environment: temperature 10-35 ℃, humidity 5-35% HR, no flammable, corrosive gas, no dust (cleanliness no less
than 100,000).


3. Equipment characteristics
Themachine adopts aluminum alloy structure, which is beautiful and solid without rusting;
Configured with high power, adjustable ultrasonic welding system;
Equippedwith photoelectricdetection and automatic counting;
PLC program control, high degree of automation;
High stability, lowfailurerateand excellent performance;
Multi-purpose machine, adult and children's masks can be adjusted arbitrarily;
It can produce 50tablets per minute.
