19 Inch Capacitive Touch LED Gaming Monitor Full HD HDMI Flat Screen
Overview:
Capacitive Touch Monitor series has a modern sleek look with its flat edge to edge glass front panels, and a patented silicone rubberized seal making the front panels IP65 water- and dust proof.This new series comes with capacitive 10-finger multitouch, glass front reaching MosH 7, the glass surface can anti glare treated (chemical etched), a wide variety of connectors including USB-B for touch, HDMI, DVI-D, VGA and audio inputs, all lockable including the DC-IN. Each capacitive Touch Monitor has an A+ industrial LCD panel backed by wintouch’s 100% no dead pixel guarantee. Each monitor comes with its own desktop stand, and screw patterns on the back for VESA 75 or 100 mounts.
Main advantage:
The high resolution support (e.g. 768p, 1920×1200 pixels) of these wintouch touch devices make them the perfect choice for a wide variety of applications including POS systems, as control panels in industrial fields, in kiosk systems, for office/residence automation and many other areas.
The projected 10-point capacitive touch panel is accurate and responsive. The touch function is quickly established when connected via USB port. wintouch includes touchscreen drivers for popular Microsoft (CE, WinXP, Vista, Win 7, Win 8, Win 10), Mac, Android and Linux
operating systems. For Win 7, Win 8 and Win 10 operating systems no driver installation is needed. Login using virtual keyboard and immediate use of windows gestures making starting and using Windows incredibly easy. Embedded systems like e.g. the raspberry Pi are also supported.
Specification:
|
Anti-glare LCD Panel |
||
|
IP rated front panel |
IP65 |
|
|
Screen diagonal (Inch/cm): |
19/48.26 |
|
|
Display active screen size: |
37.48x29.98 |
|
|
Aspect ratio: |
4:3 |
|
|
Physical resolution: |
1280x1024 |
|
|
Colours displayed: |
16.7M |
|
|
Brightness (cd/m2): |
250 |
|
|
Contrast: |
1000:1 |
|
|
Typical reaction time Tr/ Tf : |
8/8(ms) |
|
|
Visual Angle horizontal/vertical : |
178/178(°) |
|
|
Backlight / Backlight Lifetime (hours): |
LED / 40,000
|
|
|
Touch Panel |
|
|
Touch Technology |
Projected Capacitive 10-point Multitouch |
|
Touch Connector |
USB or RS232 |
|
Touch Panel Drivers |
Windows; Linux; Mac; Android |
|
Touch Life (Contacts) |
Unlimited |
|
Surface Hardness |
7H |
|
Power |
|
|
Power Indicator |
Green LED |
|
Power Supply |
100-240V ACDC active switch- ing; 12V DC-Out |
|
Working Power (V) |
12 |
|
Power Consumption (W) |
28 |
|
Stand-By Consumption (W) |
<1 |
Feature:
- Anti-glare treatment (chemical etching)
- Patented IP65 Front with silicon seal
- 10-finger-multi touch capacitive touch
- Gradient LED lights surround the display
- Screwable connection for rugged environments
- Touch panel Compatible with 3M/ELO
- Support Pot 0 Gold /WMS/ IGT game

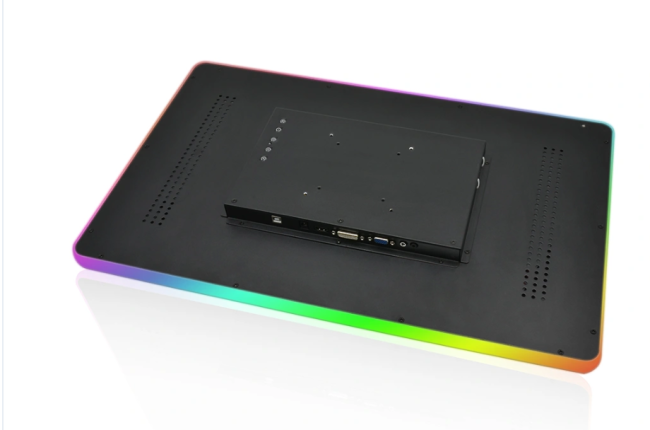

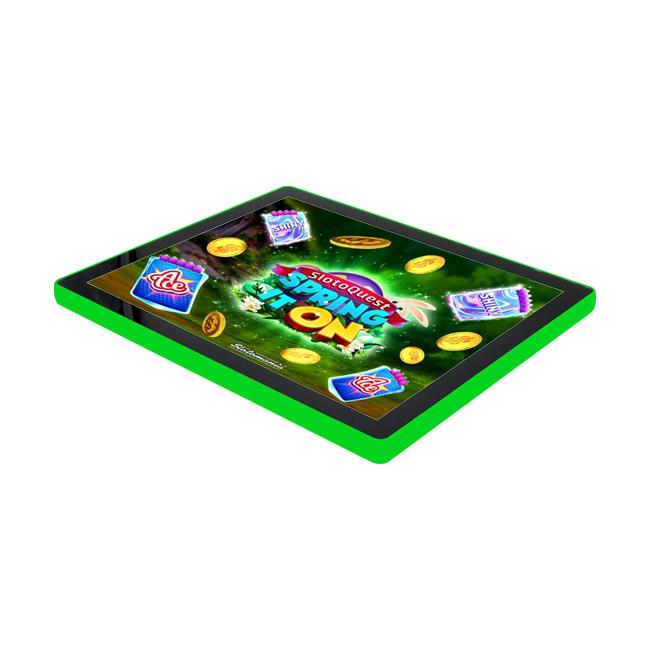

Product Image:
