Industrial Grade 23.8 Inch PCAP Touch Screen Monitor 250cd/M2 Open Frame IP65
Open Frame 23.8 Inch PCAP Industrial Grade Touch Screen Monitor
Overview:
A 23.8 inch PCAP (Projected Capacitive) touch screen monitor is a display that utilizes advanced touch screen technology to provide an accurate and responsive user interface. The PCAP technology uses a grid of sensors to detect touch, allowing for a highly precise touch experience. The PCAP touch screen technology also enables multi-touch gestures, including pinch-to-zoom, swipe, and rotate. This makes it easy for users to interact with applications and content in a natural and intuitive way. Overall, a 23.8 inch PCAP touch screen monitor is a great choice for any application that requires a reliable and responsive touch interface. Whether you're using it for gaming, digital signage, point-of-sale systems, or other applications, a PCAP touch screen monitor can help improve user engagement and satisfaction.
Specification:
|
Product name |
23.8’’ PCAP Touch Monitor |
|
|
Modle numer |
RCS-TM238 |
|
|
Anti-glare LCD Panel |
||
|
IP rated front panel |
IP65 |
|
|
Screen diagonal (Inch/cm): |
23.8/54.69 |
|
|
Display active screen size: |
525.5×297.0 |
|
|
Aspect ratio: |
16:9 |
|
|
Physical resolution: |
1920×1080 |
|
|
Maximum showable resolution (TPCs: external): |
1920×1200 |
|
|
Colours displayed: |
16.7M |
|
|
Brightness (cd/m2): |
250 |
|
|
Contrast: |
1000:1 |
|
|
Typical reaction time Tr/ Tf : |
14 (Typ.)(G to G) ms |
|
|
Visual Angle horizontal/vertical : |
89/89/89/89 (Typ.)(CR≥10) |
|
|
Backlight / Backlight Lifetime (hours): |
LED / 40,000 |
|
|
|
|
|
|
|
|
|
|
External Connectors |
||
|
Video |
1x VGA |
|
|
1x DVI-D |
||
|
1x HDMI 1.1 |
||
|
Audio |
1x PC-Audio |
|
|
1x Earphone-Out |
||
|
Touch Connector |
1x USB |
|
|
Connectors |
1x 12V DC-IN |
|
|
Touch Panel |
|
|
Touch Technology |
Projected Capacitive 10-point Multitouch |
|
Touch Connector |
USB |
|
Touch Panel Drivers |
Windows; Linux; Mac; Android |
|
Touch Life (Contacts) |
Unlimited |
|
Surface Hardness |
7H |
Main Feature:
- High precision: Using projected capacitive technology, it can detect touch accurately, and it can respond unreasonably fast even on large-area touch points.
- High-definition: The 23.8-inch large screen can provide high-definition display effects, high-definition display, and vivid and delicate images.
- Multi-touch: It supports multiple touch gestures, and can also realize multi-touch to meet the different needs of users.
- High reliability: The touch screen is made of high-quality materials, with anti-fouling, waterproof, dust-proof and other characteristics, it can run continuously and maintain high-quality touch performance.

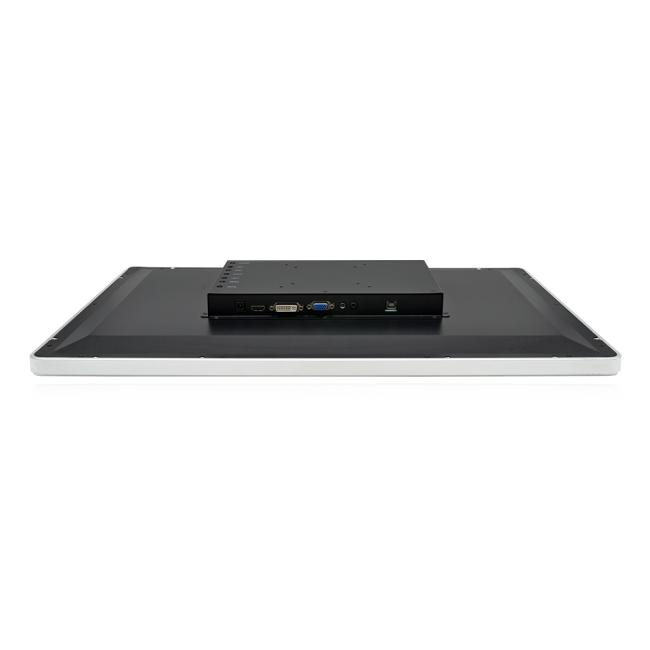

Product images:
