10.4" Industrial Waterproof PCAP Touch Screen Monitor Capacitive Touch
10.4" Industrial Waterproof PCAP Touch Screen Monitor Capacitive Touch
10.4" Capacitive Industrial Waterproof PCAP High Resolution Touch Monitor
| Product name | 10.4’’ PCAP Touch Monitor | |
| Modle numer | RCS-TM104 | |
| Anti-glare LCD Panel | ||
| IP rated front panel | IP65 | |
| Screen diagonal (Inch/cm): | 10.4/26.42 | |
| Display active screen size: | 21.1x15.8 | |
| Aspect ratio: | 4:3 | |
| Physical resolution: | 800x600 | |
| Colours displayed: | 16.7M | |
| Brightness (cd/m2): | 300 | |
| Contrast: | 800:1 | |
| Typical reaction time Tr/ Tf : | 10/15 (ms) | |
| Visual Angle horizontal/vertical : | 160/140 | |
| Backlight / Backlight Lifetime (hours): | LED / 30,000 | |
| Touch Panel | |
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Connector | USB |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Operation / Mechanical | |
| Operating Temperature | -10 ~ +65 (°C) |
| Humidity Range (RH) | 10%-90% |
| Net weight (kg) | 1.1 |
| Gross weight (kg) | 2 (incl. cartonage) |
| Housing material | Aluminium |

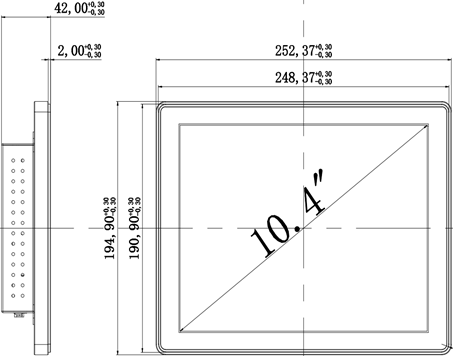

| Housing (cm) LxWxH | 25.23x19.49x4.2 |
| Mounting | VESA 100/ VESA 75 |

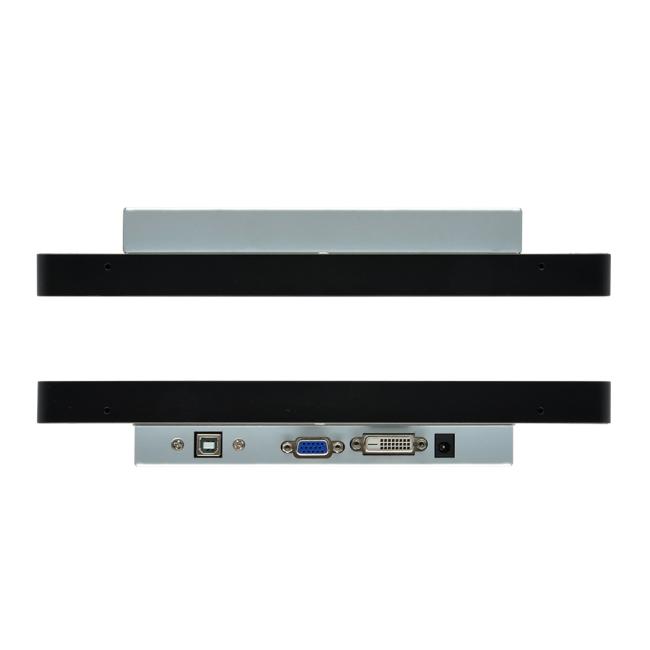

| External Connectors | ||
| Video | 1x VGA | |
| 1x DVI-D | ||
| 1x HDMI 1.1 (incl. HDCP) | ||
| Audio | 1x PC-Audio | |
| Touch Connector | 1x USB | |
| Connectors | 1x 12V DC-IN | |
| Power | |
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switch- ing; 12V DC-Out |
| Working Power (V) | 12 |
| Power Consumption (W) | 10 |
| Stand-By Consumption (W) | <1 |
