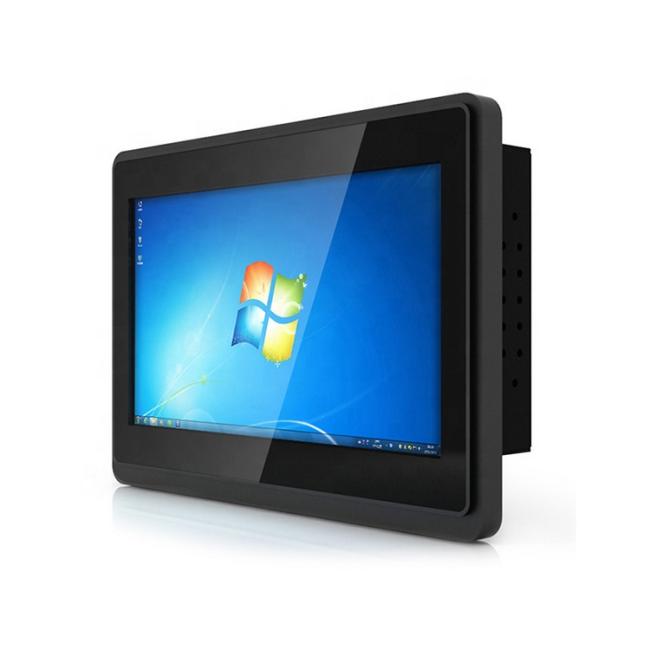

7 Inch PCAP open frame touch screen monitor USB Capacitive Multi Touch screen Gaming Monitor
7 Inch PCAP Open Frame Touch Screen Monitor USB Capacitive Multi Touch Screen Gaming Monitor
Overview:
The high resolution support (e.g. 768p, 1920×1200 pixels) of these Wintouch touch devices make them the perfect choice for a wide variety of applications including POS systems, as control panels in industrial fields, in kiosk systems, for office/residence automation and many other areas.
Features:
|
• Patented IP65 Front with silicon seal |
|||
|
• Strengthened cover glass |
|||
|
• Anti-glare treatment (chemical etching) |
|||
|
• 10-finger-multi touch capacitive touch |
|||
|
• LED backlight backed Panels in A+ quality |
|||
|
• Screwable connection for rugged environments |
This new series comes with capacitive 10-finger multitouch, glass front reaching MosH 7, a wide variety of connectors including USB-B for touch, HDMI, DVI-D, VGA and audio inputs, all lockable including the DC-IN. Each capacitive Touch Monitor has an A+ industrial LCD panel backed by Wintouch’s 100% no dead pixel guarantee. Each monitor comes with its own desktop stand, and screw patterns on the back for VESA 75 or 100 mounts.
Specification:
|
Product name |
7’’ PCAP Touch Monitor |
|
|
Modle numer |
RCS-TM070 |
|
|
Anti-glare LCD Panel |
||
|
IP rated front panel |
IP65 |
|
|
Screen diagonal (Inch/cm): |
7/17.78 |
|
|
Display active screen size: |
15.36x9.00 |
|
|
Aspect ratio: |
16:9 |
|
|
Physical resolution: |
1024x600 |
|
|
Colours displayed: |
16.7M |
|
|
Brightness (cd/m2): |
600 |
|
|
Contrast: |
800:1 |
|
|
Typical reaction time Tr/ Tf : |
10/15 (ms) |
|
|
Visual Angle horizontal/vertical : |
150/145 |
|
|
Backlight / Backlight Lifetime (hours): |
LED / 30,000 |
|
|
Touch Panel |
|
|
Touch Technology |
Projected Capacitive 10-point Multitouch |
|
Touch Connector |
USB |
|
Touch Panel Drivers |
Windows; Linux; Mac; Android |
|
Touch Life (Contacts) |
Unlimited |
|
Surface Hardness |
7H |
|
|
|
|
Operation / Mechanical |
|
|
Operating Temperature |
-10 ~ +65 (°C) |
|
Humidity Range (RH) |
10%-90% |
|
Net weight (kg) |
0.6 |
|
Gross weight (kg) |
2 (incl. cartonage) |
|
Housing material |
Metal and plastic |
|
Housing (cm) LxWxH |
18.25x12.95x3.28 |
|
Mounting |
VESA 75 |
|
Power |
|
|
Power Indicator |
Green LED |
|
Power Supply |
100-240V ACDC active switch- ing; 12V DC-Out |
|
Working Power (V) |
12 |
|
Power Consumption (W) |
5 |
|
Stand-By Consumption (W) |
<1 |
|
External Connectors |
||
|
Video |
1x VGA |
|
|
1x AV |
||
|
1x HDMI 1.1 (incl. HDCP) |
||
|
Touch Connector |
1x USB |
|
|
Connectors |
1x 12V DC-IN |
|
Detailed Images:
Mini size easy to carry in your bags

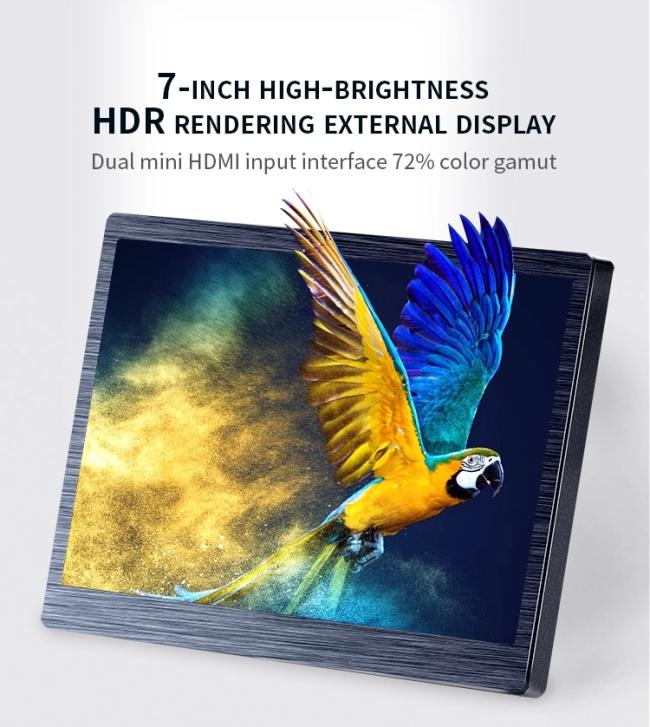

High brightnesss 600cd/m can work both outdoor and indoor
UHD display 1024 x 600
CE FCC Rohs PSE CCC
