23.8 inch LCD Monitor 1920x1080 resolution HDMI inputs Double Side LCD Monitor
Price:
Negotiation
MOQ:
1PCS
Delivery Time:
5-8 work days
Brand:
rCloud
Product Description

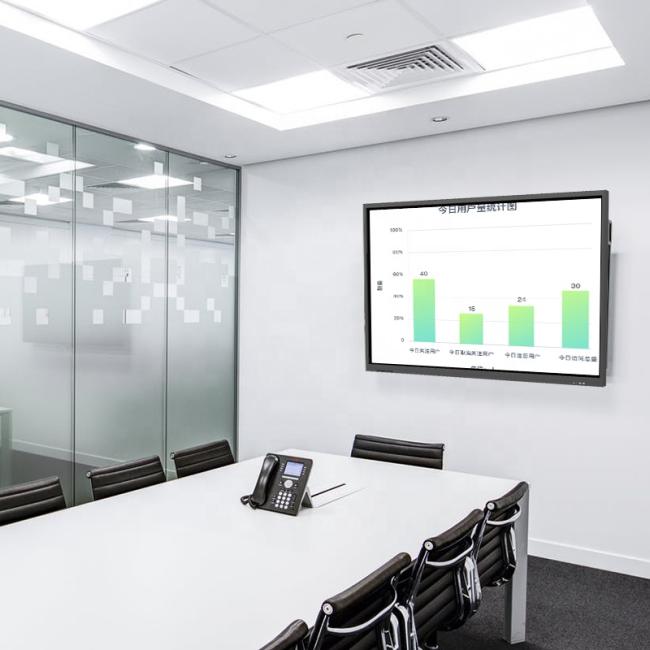

Protable 75"smart whiteboard built-in high-quality speakers for high-end conference experience
Feature:
1. Aluminum alloy outer frame, surface brushed and anodized, iron shell back cover, active heat dissipation.
2. 4mm physical toughened explosion-proof high-transparency glass; Enhance the visual effect, improve the touch experience.
3. High-speed 10-point touch writing experience, better smoothness, faster writing speed.
4. Ultra-narrow drawing surface frame design, the whole surface frame side is only 20MM.
Product Specification:
| Panel parameters | Size | 74.52” |
| Backlight type | D-LED | |
| Resolution | 3840×2160 | |
| Display size (mm) | 1649.66(H)×927.94(V) | |
| Appearance of dot (mm) | 0.4296(H) x 0.4296(V) | |
| Response time | 8ms (typ.) | |
| brightness | 450nit | |
| highest | 1200:1 | |
| Viewing angle | 178°(vertical,horizontal) | |
| color | 1.07B | |
| Color saturation (x% NTSC) | 65% | |
| Ratio | 16:9 | |
| Refresh rate | 60Hz | |
| Program | Scalar | MSD6A848 |
| CPU architecture | ARM A73+ A53 | |
| CPU working frequency | 1.5GHz | |
| CPU core number | Quad-core | |
| GPU | MaliG51 | |
| Internal cache capacity (RAM) | 3GB DDR4 | |
| Internal storage capacity (ROM) | 32GB | |
| system version | Android 8.0 | |
| wireless online | Dual wifi module | |
| Touch parameters | Touch specifications | Infrared touch |
| Glass specifications | 4 mm tempered glass | |
| responding speed | <10ms | |
| Touch accuracy | More than 90% of the touch area is ± 1 mm | |
| Output form | HID standard | |
| Theoretical clicks | Unlimited times | |
| Touch diameter | ≥2 mm | |
| Interface | HDMI input interface | HDMI2.0(HDMI4)*3 (3840x2160@60Hz) |
| DP input interface | *1 | |
| LAN interface | *2 | |
| AV input interface | *1 | |
| TV input interface | *1 | |
| VGA input interface | *1 | |
| PC audio input interface | *1 | |
| Y Pb Pr input interface | *1 | |
| AV output interface | *1 | |
| S / PDIF output interface | *1 | |
| OPS interface | *1 | |
| HDMI output interface | *1 | |
| TOUCH-USB | *2 (USB-B port) | |
| PC-USB | *2 | |
| Android USB | *2 | |
| Audio output interface | *1 | |
| RS232 | *1(DB9) | |
| structure size | net weight | 58Kg±1.5Kg |
| Gross weight | 75Kg±1.5Kg | |
| Bare metal dimensions (W x D x H) | 1735.98mmx103.75mmx1034.52mm | |
| Package Size | 1880mmx280mmx1160mm | |
| Shell material | Aluminum profile / sheet metal | |
| Wall support | 4-M8 Screw holes 600mmx400mm | |
| Power consumption | Power input voltage | 100 V ~ 240 V/AC,50/60 Hz |
| Total power | ≤400W | |
| Standby power | <0.5W | |
| Maximum sound power | 2*15W/8Ω | |
| Language | OSD | English / Simplified Chinese |
| Annex |
remote control*1, power cable *1, HDMI signal cable *1, USB cable*1, Touch pen*2, Certificate of conformity*1, Instructions*1, Warranty Card*1, Hanger bracket*1 |
|
Product Description:
The front of the speaker is forward facing to prevent the sound effect from being deteriorated due to the embedded environment.
Dual system touch menu, no need for remote control, one screen solution.
55" 65″ 75″ 86″ interactive whiteboard for optional
