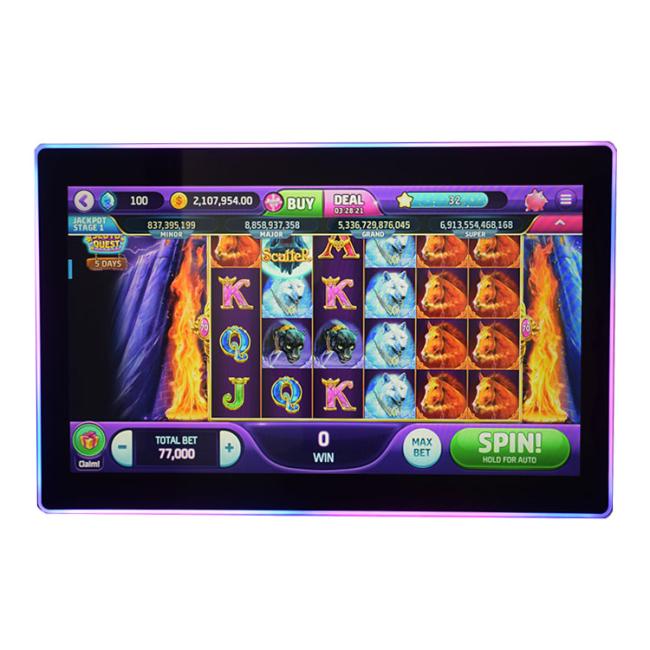

30w 1920×1080 27" Ip65 PCAP Touch Screen Monitor For Kiosk
Price:
Negotiation
MOQ:
1PCS
Delivery Time:
5-8 work days
Brand:
rCloud
Product Description
OEM ODM 27" lcd panel ip65 capacitive multi touch screen For kiosk
Features:
· 10-point Multi-Touch PCAPTouchscreen available for optional
· 7H Hardness tempered glass Anti-Scratch Surface
· HDMI/DVI-D/VGA video connectors(options)
· Full HD 1080p, 1920 x 1080 Maximum Resolution
·Intelligent and long-running: With a 24-hour continuous operation and stable capability
Specification:
| Product name | 27’’ Touch Monitor | |
| Modle numer | RCS-TM270 | |
| Anti-glare LCD Panel | ||
| IP rated front panel | IP65 | |
| Screen diagonal (Inch/cm): | 27/68.58 | |
| Display active screen size: | 59.76x33.61 | |
| Aspect ratio: | 16:9 | |
| Physical resolution: | 1920×1080 | |
| Maximum showable resolution (TPCs: external): | 1920×1200 | |
| Colours displayed: | 16.7M | |
| Brightness (cd/m2): | 300 | |
| Contrast: | 3000:1 | |
| Typical reaction time Tr/ Tf : | 1.5/3.5 (ms) | |
| Visual Angle horizontal/vertical : | 178/178(°) | |
| Backlight / Backlight Lifetime (hours): | LED / 40,000 | |
| Touch Panel | |
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Connector | USB |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Operation / Mechanical | |
| Operating Temperature | -10 ~ +65 (°C) |
| Humidity Range (RH) | 10%-90% |
| Net weight (kg) | 13 |
| Gross weight (kg) | 15.5 (incl. cartonage) |
| Housing material | Aluminium |
| Housing (cm) LxWxH | 65.5x41x5.43 |
| Mounting | VESA 100/ VESA 75 |
| Power | |
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switch- ing; 12V DC-Out |
| Working Power (V) | 12 |
| Power Consumption (W) | 30 |
| Stand-By Consumption (W) | <1 |
| External Connectors | ||
| Video | 1x VGA | |
| 1x DVI-D | ||
| 1x HDMI 1.1 (incl. HDCP) | ||
| Audio | 1x PC-Audio | |
| 1x Earphone-Out | ||
| Touch Connector | 1x USB | |
| Connectors | 1x 12V DC-IN | |
