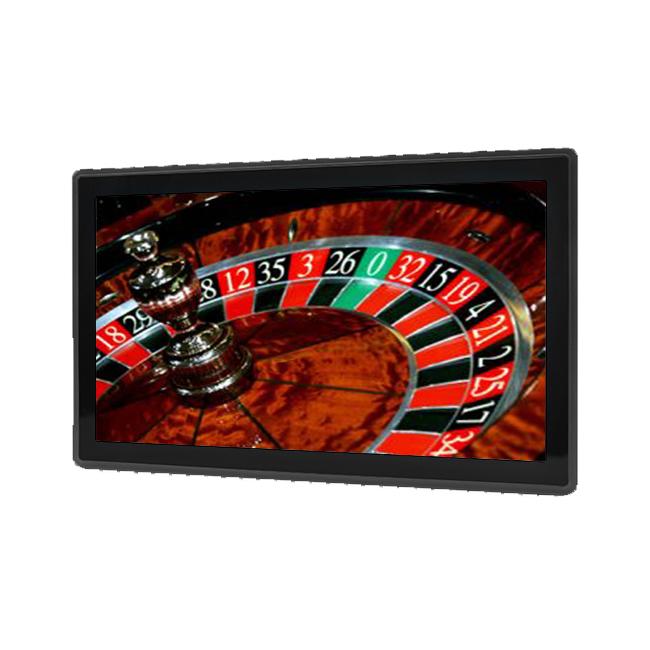

18.5in 1920x1080 250cd/M2 Usb Capacitive Touch Screen
Price:
Negotiation
MOQ:
1PCS
Delivery Time:
5-8 work days
Brand:
rCloud
Product Description
18.5 inch capacitive 1920×1080 Multi touch screen panel for slots
Features:
- Strengthened cover glass with 7H tempered glass optically bonded to a LCD.
- Anti-glare treatment (chemical etching)
- Patented IP65 front with silicon seal.
- 10-finger-multi touch capacitive touch panel with only USB cable plugged in,the touch screen can be used,no extra installation of software required.
- system-wide support(Android,Linux,Windows,Ios...) driver-free,easy to install
Product parameter:
| Product name | 18.5’’ PCAP Touch Monitor | |
| Modle numer | WT185B24 | |
| Anti-glare LCD Panel | ||
| IP rated front panel | IP65 | |
| Screen diagonal (Inch/cm): | 18.5/46.99 | |
| Display active screen size: | 40.98x23.04 | |
| Aspect ratio: | 16:9 | |
| Physical resolution: | 1920×1080 | |
| Colours displayed: | 16.7M | |
| Brightness (cd/m2): | 250 | |
| Contrast: | 1000:1 | |
| Typical reaction time Tr/ Tf : | 1.5/3.5 (ms) | |
| Visual Angle horizontal/vertical : | 178/178(°) | |
| Backlight / Backlight Lifetime (hours): | LED / 40,000 | |
| Touch Panel | |
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Connector | USB |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Operation / Mechanical | |
| Operating Temperature | -10 ~ +65(°C) |
| Humidity Range (RH) | 10%-90% |
| Net weight (kg) | 7.2 |
| Gross weight (kg) | 8.30 (incl. cartonage) |
| Housing material | Aluminium |
| Housing (cm) LxWxH | 46.1x28.8x5.4 |
| Mounting | VESA 100/ VESA 75 |
| External Connectors | ||
| Video | 1x VGA | |
| 1x DVI-D | ||
| 1x HDMI 1.1 (incl. HDCP) | ||
| Audio | 1x PC-Audio | |
| 1x Earphone-Out | ||
| Touch Connector | 1x USB | |
| Connectors | 1x 12V DC-IN | |
