Brief Introduction- Spiralmate round Flange Making Machine
The Spiralmate round Flange profile is as an integral part of round duct connector system, it is roll-formed from Hi-Tensile GI steel. With the spiralmate closure band is engineered to simplify the connection process. With its advantage, it is very popular for virtually any HVAC application, widely adopted in Building construction Industry – commercial and residential.
Our round flange roll forming machine changes the traditional flange production way, The most advantage is the production efficiency increased and the labor cost reduced too much.
Spiral ductwork Flange Machine Technology flow

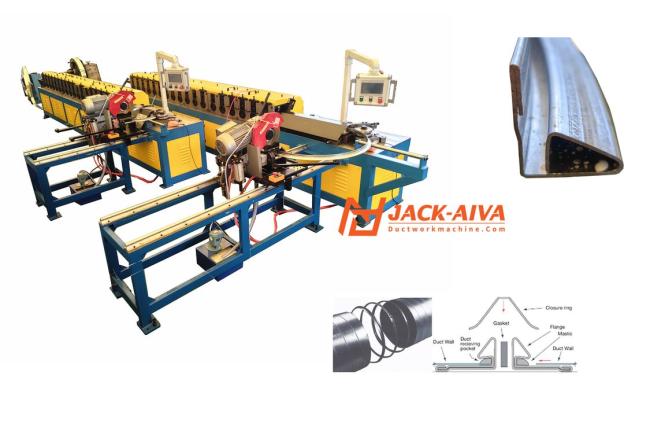

It is consisted of De-coiler (MANUAL), main roll forming device, Closure ring Profile bending device and hydraulic cutter. The technology flow is as following,

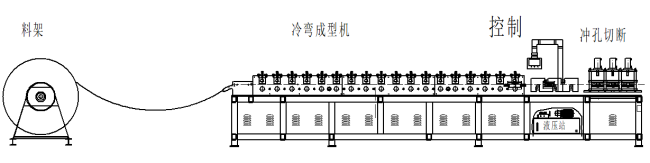

Decoiling --- roll forming --- Profile bending --- Cutting- -- round flanges
Machine Main Parameter - Round flange Roll Forming Machine
| Item | Content |
| Raw material | GI steel Coil, thickness 1.0/1.2mm |
| Machine power | 5.5kw |
| Forming roller station quantity: | 18 Stations |
| Round flanging device | 1set |
| Saw cutter | 1set , 2.2KW, length controlled by Encode control |
| Forming roller | GCR15, AFTER treatment. HRC57º-59ºc |
| Driving system | Chain + gears |
| Roll forming speed | 6-8m/min |
| Electrical system |
3xAC380v, 50HZ; PLC & touch screen control line speed is controlled by frequency inverter. |
| Main roll former dimension | L*W*H 6m*1.4m*1.2m |
| Weight (KG): | About 1000kg |
Application of the Round Flanges connection system

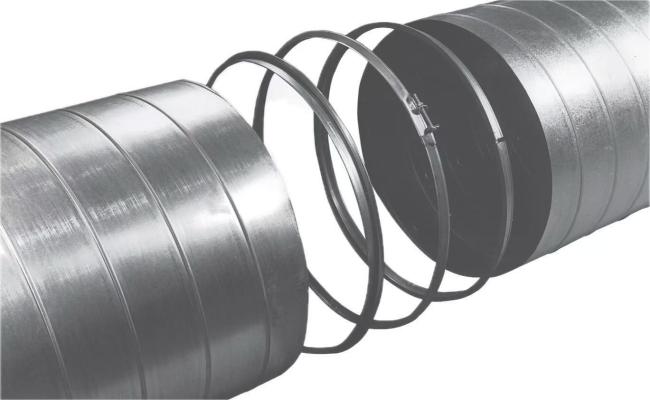

The sprialmate round flange can be composed of various force-receiving members according to the different needs of the structure, and can also be used as a connecting member between the members. Widely used in various building structures and engineering structures.

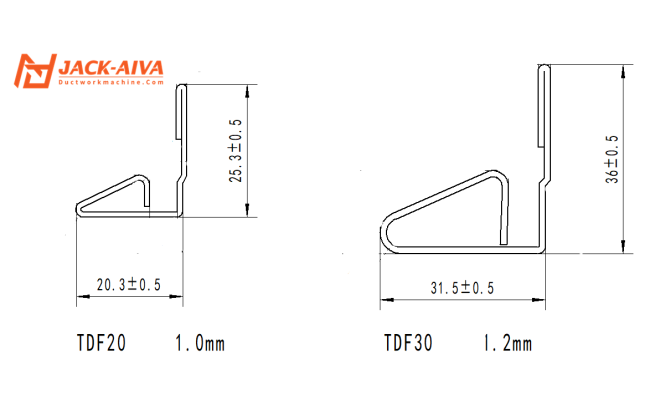

There have sizes about the round flanges, 20mm, 30mm, suitable for difference diameter pipes connection, 400-1000mm.
