Curtain Fire Damper Machine | Curtain Type Fire Damper Production
Curtain fire damper machine designed for manufacturing curtain type fire dampers widely used in HVAC ventilation systems.

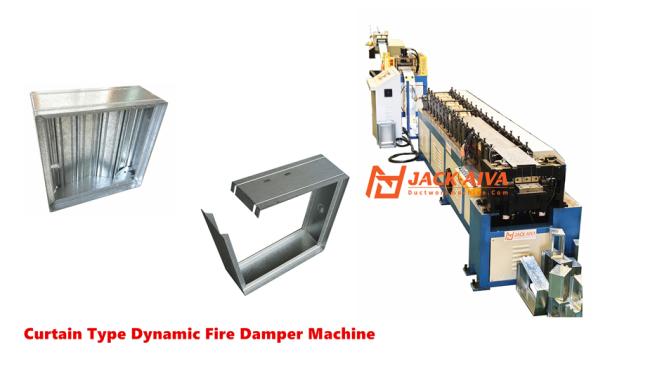

The Curtain Fire Damper Machine is designed to manufacture curtain-type fire dampers used in ventilation ducts. Curtain fire dampers consist of multiple interlocking blades that close automatically when a fire occurs.
These dampers are widely used in commercial buildings, airports, hospitals, and industrial facilities.
The production machine forms curtain blades and frame structures with high precision using galvanized steel materials.
Benefits
- Reliable forming technology
- High production efficiency
- Consistent damper quality
Curtain fire damper machines provide an efficient solution for manufacturers producing fire safety components for HVAC duct systems.
Technology flow – Curtain Fire Damper Fabrication Machine
The curtain fire damper roll forming machine is designed according to 1.5mm thickness GI Steel. The VCD damper frame profile production line is consisted of uncoiler (manual), leveler roll form machine, hydraulic punching and cutter, hydraulic system, electrical control system, etc.

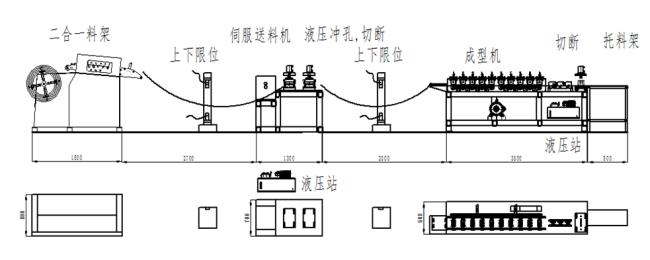

De-coiler –- Strip leveler + servo feeder + hydraulic square holes Notching + hydraulic notching --- Roll forming -- hydraulic bending & Cutting --- finished product
Main parameters- Curtain Fire Damper Making Machine
| Profile | Curtain Fire Damper- Rivet connection style |
| Raw Material | Galvanized Coil; dc51d+Z; Thickness 0.8-1.0mm; |
| Coil width | According to profile drawing |
| Main motor power (KW) | 11KW |
| Feeding & Punching Device | Corner Notcher 2sets. Holes 5mm Punching 1SET, Ends Punching 1set |
| Cutter & Bender | Hydraulic station Motor Power : 4kw with fan cooler system |
| Line speed | 0-15m/min |
| Forming roller | CR12MOV,After treatment, hardness HRC58-62； 15 stations |
| Shaft diameter | 60mm, 40CR after treatment |
| Electrical control system | PLC, human-machine interface control, and servo control speed regulation. |
| Dimension (mm) | L*W*H 6m*0.8m*1.2m |
| MAX Coil weight (KG) | 4000kg |
Customized damper can be designed according to client drawing or sample.
