Post Tensioning Duct Making Machine for Prestressed Concrete

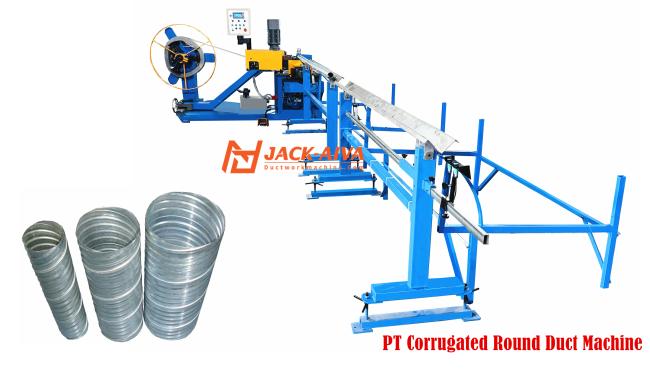

The Spiral Corrugated Post Tensioning Duct Machine (PT Duct Tube Former) is specially designed for manufacturing high-quality corrugated metal ducts used in prestressed concrete structures.
It is widely applied in bridges, highways, railways, tunnels and precast concrete projects, ensuring excellent strength, durability and protection for post-tensioning systems.
With advanced spiral forming technology and automatic control, this machine guarantees stable production, precise dimensions and high efficiency output.
Why Choose Our PT Duct Machine?
✔️ High Precision Forming – Consistent diameter and spiral pitch
✔️ Double Lock Seam Technology – Stronger and leak-proof ducts
✔️ Wide Diameter Range – Flexible production from small to large ducts
✔️ High Speed Production – Up to 15 m/min
✔️ Automatic Operation – Reduce labor cost
✔️ Durable Structure – Long service life with minimal maintenance
✔️ Compatible Materials – GI steel, cold rolled steel
Applications
This Post Tensioning Duct Machine is widely used in:
- Bridge Construction
- Highway Infrastructure Projects
- Railway Engineering
- Tunnel & Metro Systems
- Precast Concrete Industry
- Large-span Concrete Structures
- Industrial & Commercial Buildings
Main parameters- Post Tensioning Duct Machine
| ITEM | CONTENT |
| Machine type: | PTD55-2 |
| Suitable Material: | GI Steel DC51+Z |
| Strip Width: | 55mm |
| Strip Thickness: | 0.4~0.5mm |
| Seaming Model | Lock style |
| Tube Diameter range | 40- 150mm (duct inner diameter) |
| Roll forming roller | GCR15 After treatment |
| Main motor | 3.7kw |
| Strip feeding Speed | 0-15 m/min |
| Power supply | 3*AC380; 50HZ |
| Weight | Around 1200KG |
| Guarantee period: | 1 year |
This machine is also known as:
- Post Tensioning Tube Machine
- Corrugated Duct Machine
- PT Duct Machine
- Spiral Corrugated Tube Former
- Prestressing Duct Manufacturing Machine
- Metal Bellows Tube Machine
Why Choose Us?
- Over 20+ years experience in roll forming machinery
- Exported to Middle East, Europe, Southeast Asia & South America
- Strong technical support and custom design capability
- Complete solution: machine + mould + training
- Fast delivery and reliable after-sales service
