Resin Bonded Diamond Water Grinding Disc in Different Sizes

Diamond Soft Disc for Fine Grinding

Name: Diamond Soft Polishing Disc / Diamond Soft Grinding Disc

Blade Modal No: RTR-SD-001

Bonded Type: Resin Bonded

Image blade size: 80*10**5mm

Brief Introduction of Diamond Water Grinding Disc

Diamond water grinding disc, also known as diamond soft grinding disc, is a flexible processing tool made of diamond as abrasive and composite materials. The back side is glued with Velcro cloth, which is glued on the joint of the mill. With grinding, it can process stone, ceramics, glass, floor tiles and other materials with different shapes. It is suitable for stone polishing, line chamfering, etc. it has strong grinding force, good durability and luster. The whole process is divided into four stages: rough grinding, fine grinding, fine grinding and polishing.

Our diamond soft grinding disc / water grinding disc adopts the latest materials and technology, and can be used with various hand mills, refurbishing machines and grinders. It can be used for special-shaped processing of stone and ceramic materials.  The processed stone has a gloss of more than 90 degrees.

Characteristic of Diamond Soft Grinding Disc:

• Unique resin bond, strong grinding force;
• High polishing speed and high finish;
• High wear resistance and long service life;
• There is no scratch and color left on the stone after grinding and polishing (not easy to dye);

Specifications: 3 inch, 4 inch, 5 inch, 6 inch, 7 inch, 8 inch;

Thickness: 2.5mm, 3.0mm, 3.5mm;

Particle size: 30, 50, 80, 100, 120, 150, 200, 300, 400, 500, 600, 800, 1000, 1500, 2000 and 3000.

More Specifications: can be produced according to customer requirements.

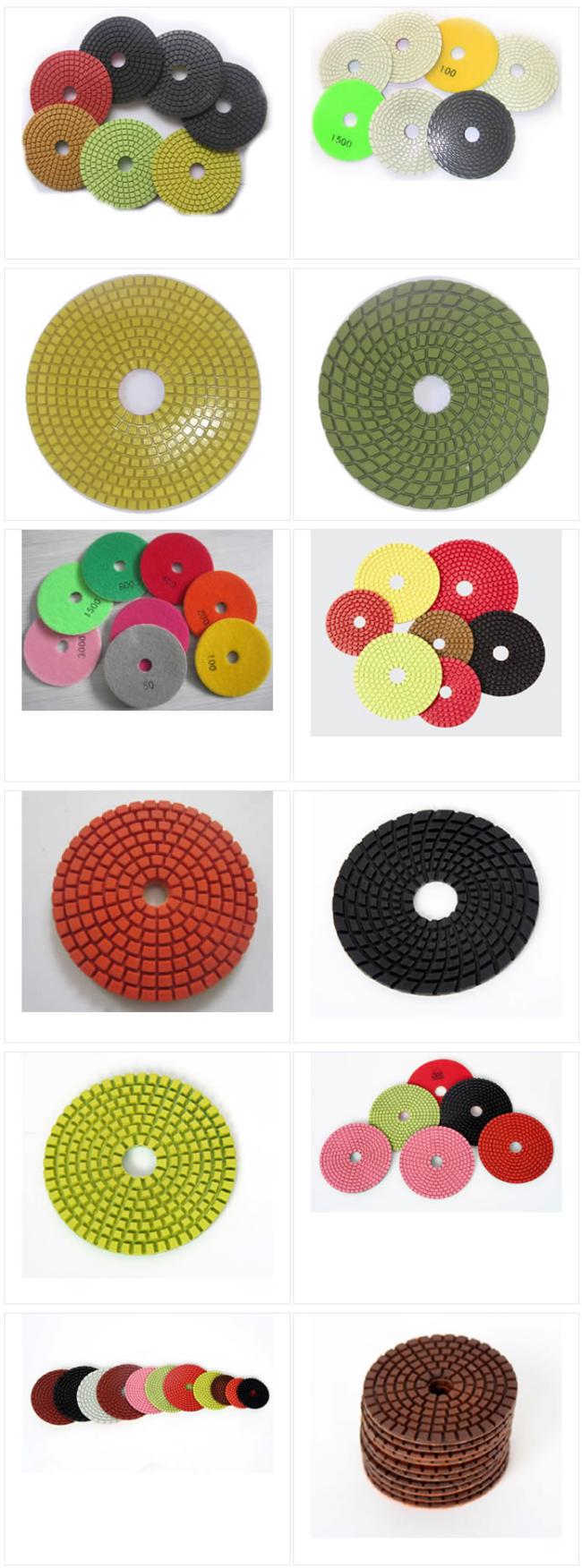

More Pictures of Diamond Water Grinding Disc

Over 15 years of developing and producing experience in high precision super hard material tools, we have

established a high efficiency system to provide stable performance wheel products.

We welcome yr free inquiry for any question in our diamond cutting wheels.  In order to supply exact wheel

type and quotation to you,  if possible, better for you to provide us more information like followings:

1. Yr processing objects.

2. Yr OD, ID, Thickness data.

3. Grit size if possible.

4.  Rotary speed of your processing machine.

Many Thanks.
