Pneumatic 7T Diesel Powered Forklift 4x4 Forklift 1220*150*65mm Fork Dimension
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
15 working days
Brand:
Wenyang Machinery
Product Description

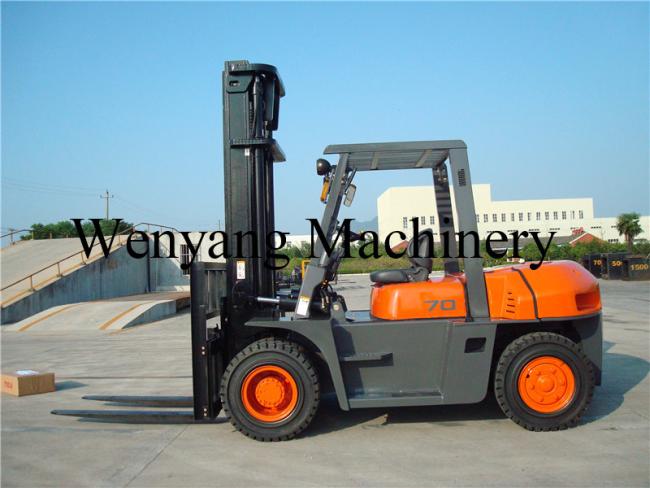

Wenyang Machinery brand forklift 7ton diesel forklift truck with ISUZU engine made in China
FD70T Technology Specification
| Model | FD70T | ||
| Load capacity | kg | 7000 | |
| Load center | mm | 600 | |
| Power unit | Diesel | ||
| Operator type | Driver/seat | ||
| Tire type | Front/rear | Pnenumatic | |
| Wheel | Front/rear | 4/2 | |
| Max. lifting height | mm | 3000 | |
| Free lift | mm | 210 | |
| Fork size | L*W*T | mm | 1220*150*65 |
| Tilt range | Mast forward/backward | deg | 6/12 |
| Overall length(without fork) | mm | 3590 | |
| Total width | mm | 1995 | |
| Mast height (fork lowering) | mm | 2500 | |
| Overall height fork raised | With backrest | mm | 4420 |
| Height to head guard | mm | 2450 | |
| Turning raduis(outside) | mm | 3360 | |
| Front face of fork to front | mm | 620 | |
| Min. right angle stacking | pallet size :1100×1100 add clearence | mm | 5620 |
Speed | Max Travelling full/no load | km/h | 26/30 |
| Lifting full/no load | mm/s | 450/550 | |
| Lowering full/no load | mm/s | 450/500 | |
| Max.drawbar pull | full/no load | kg | 5400/2200 |
| Gradeability at 1.6km/h | full load | % | 29 |
| Max. Gradeability | full/no load | % | 33/19 |
| Truck weight | kg | 9450 | |
| Weight distribution | Full load front/rear | kg | 14520/1930 |
| No load front/rear | kg | 3760/5690 | |
Tires | Number | front/rear | 4/2 |
| Model | front axle | 8.25x15-14PR | |
| rear axle | 8.25x15-14PR | ||
| Wheelbase | mm | 2250 | |
| Tread | Front/rear | mm | 1470/1700 |
| Ground clearence | At lowest point(mast) | mm | 190 |
| Frame | mm | 230 | |
| Brake | Service brake | power brake | |
| Parking brake | Mechanical-hand lever | ||
| Battery | Voltage/capacity | V/AH | 2x12V-80AH |
Engine | Model | ISUZU 6BG1 | |
| Rated power | PS | 112/2000 | |
| Rated torque | kg-m | 42.5/1500 | |
| Number of cylinders | 6 | ||
| Placement | L | 6.494 | |
| Fuel tank capacity | L | 140 | |
| Transmission | shift stage(front/rear-type) | 2-2 power shift T/M | |
| Operating pressure | Hydraulic system pressure | kg/cm² | 200 |
