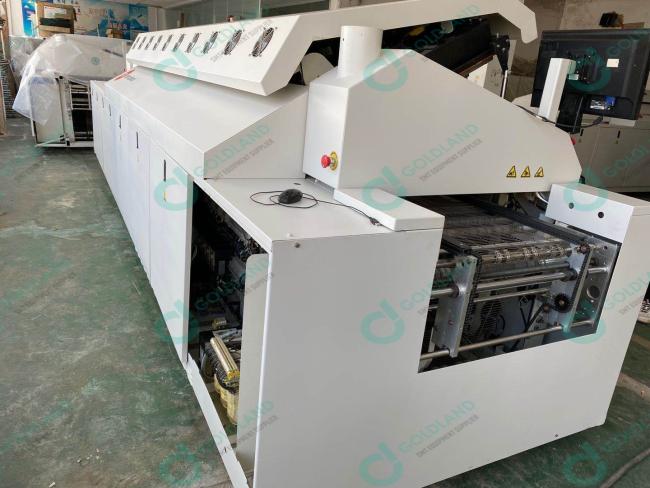

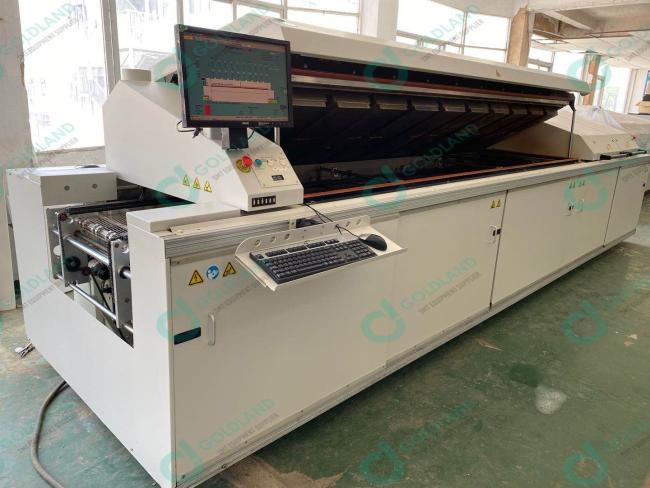

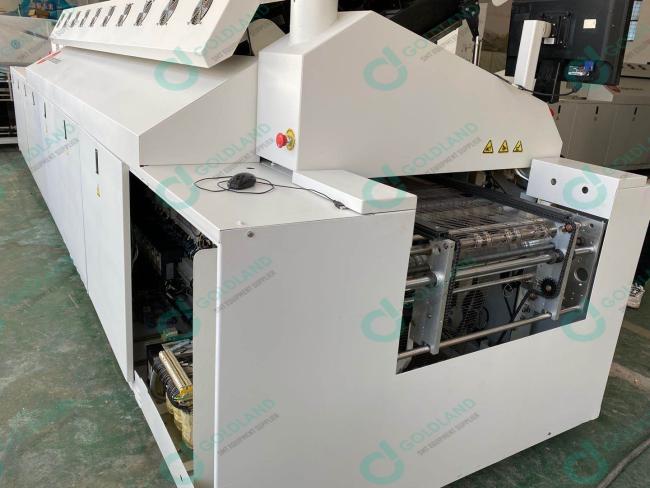

BTU125A 125N BTU Pyramax 125 SMT Reflow Oven Parts

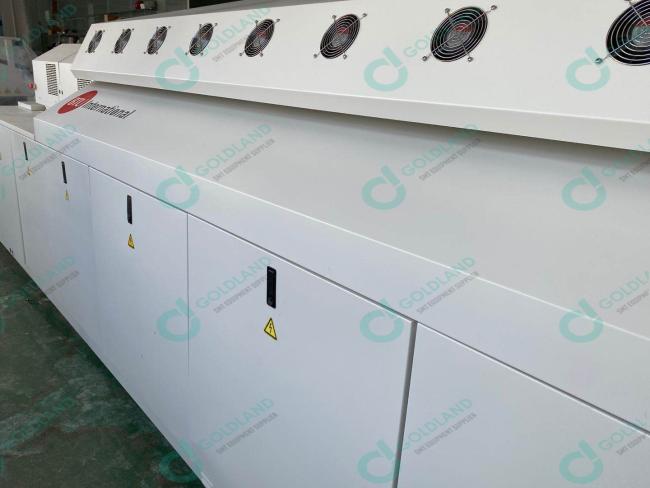

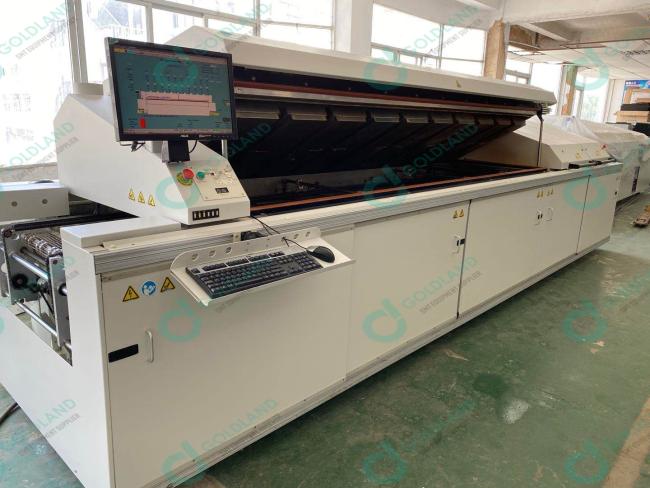

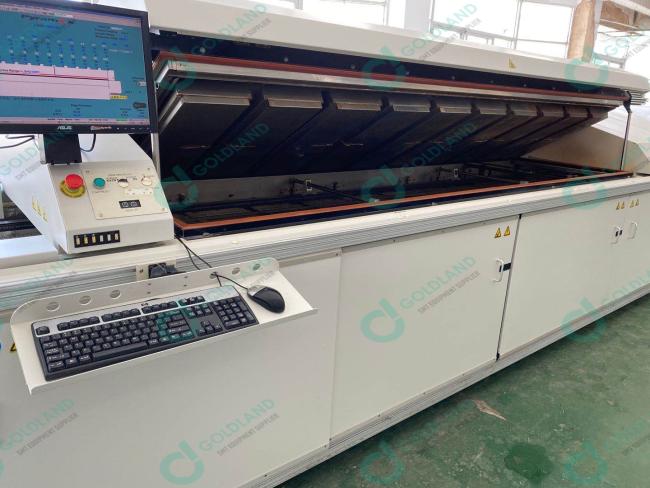

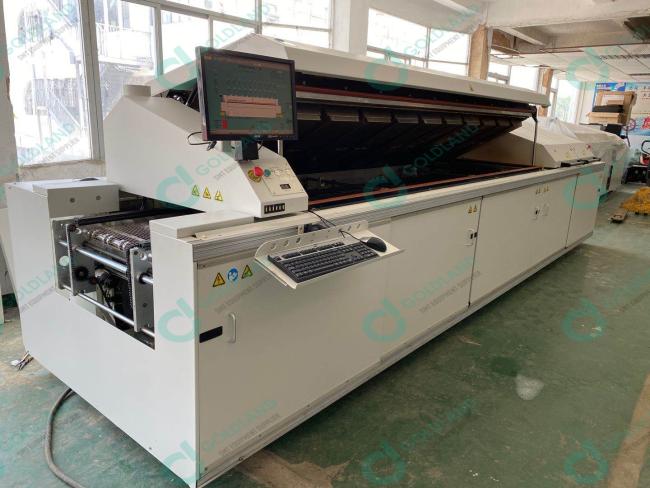

BTU Pyramax 125 SMT reflow oven BTU125A SMT oven
Pyramax 125 delivers high-volume capacity and optimized lead-free processing in a reducedfootprint to boost production and efficiency. Utilizing BTU’s exclusive Closed Loop Convection Control, Pyramax 125, provides the precise heating and cooling control, constantheat transfer, maximum process control flexibility and reduced nitrogen consumption that add up to the lowest cost of ownership in the industry. With 10-zone air or nitrogen capability, 350º maximum temperature, flexible platform configuration, low nitrogen and power consumption, and a comprehensive menu of options,the Pyramax 125 is both the industry’s most versatile performer and its best value.
| Pyramax 125 Specifications | ||
| Model | Pyramax 125A 125N | |
| Atmosphere | Air or Nitrogen | |

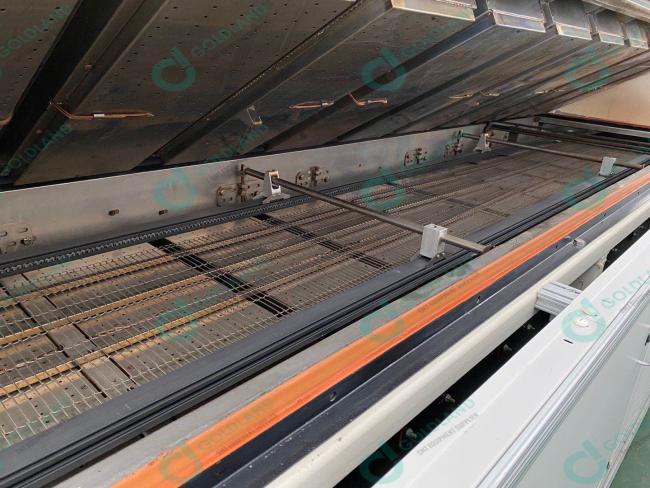

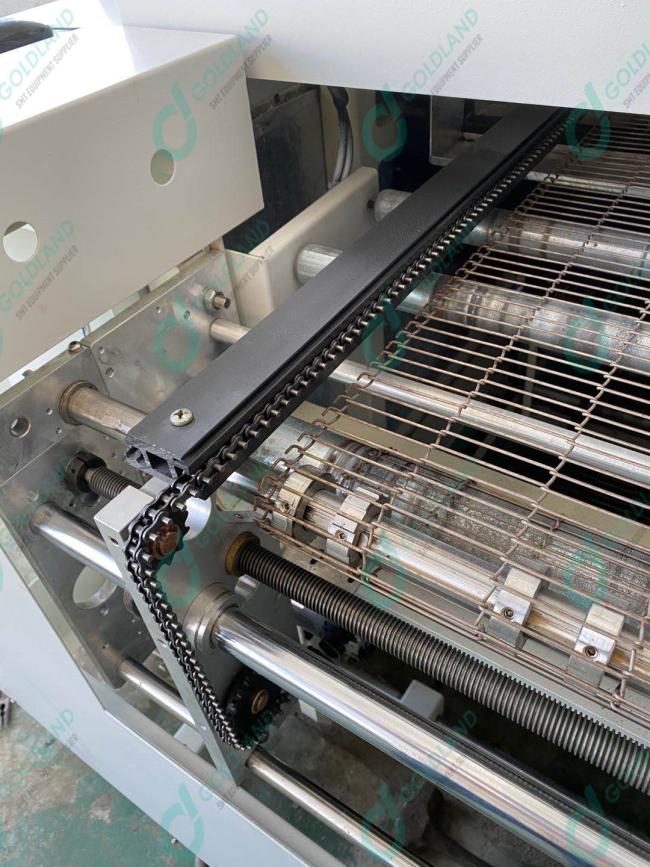

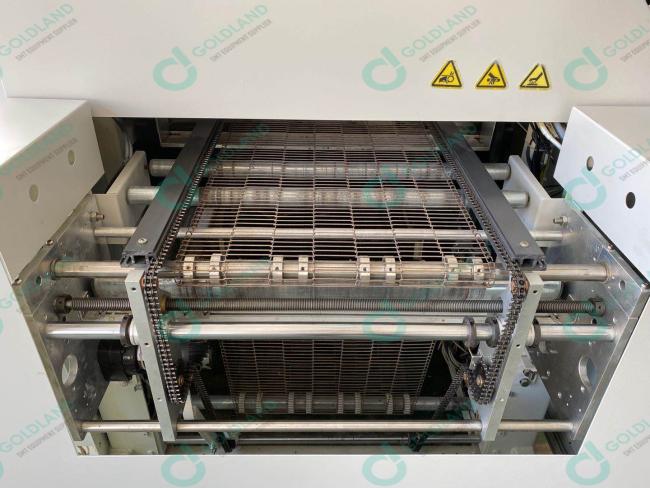

| Conveyor Speed | 10-60 in/min. 25-152 cm/min | |
| Conveyor Width | 2-18 in 51-457mm | |
| Heated Length | 125 in 3175mm | |

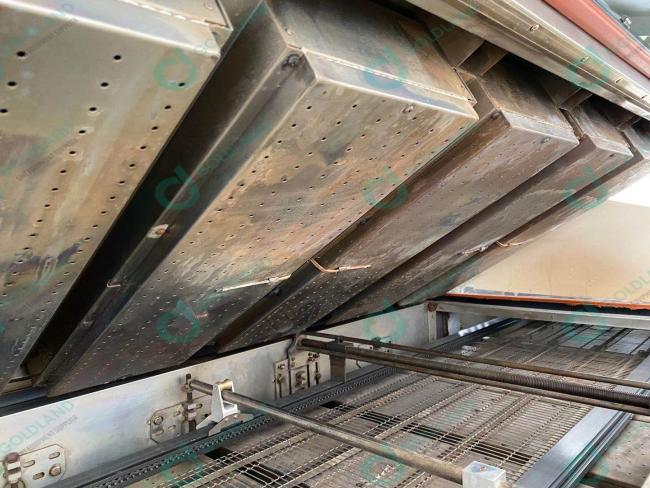

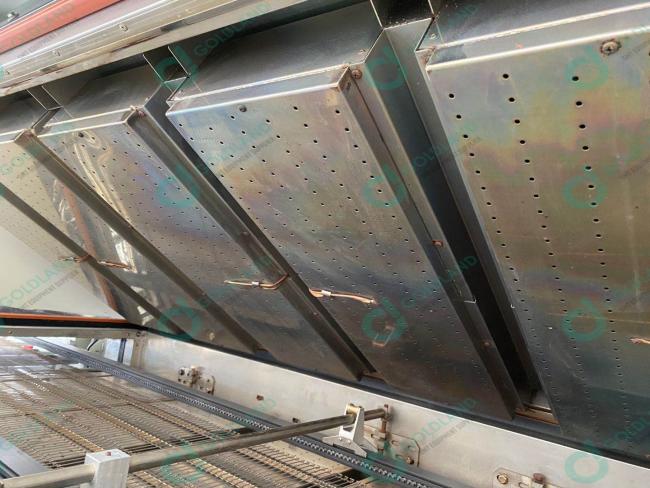

| Heated Zone (Top/Bottom) | 10 top/10 bottom | |
| Cooling Length | 46 in 1168mm | |
| Cooling Zone (Top/Bottom) | 2 top / 2 bottom (optional) | |
| Overall system Length | 230 in 5842mm | |
| Overall system Height | 60 in 1524mm | |
| Overall system Width | 60 in 1524mm | |

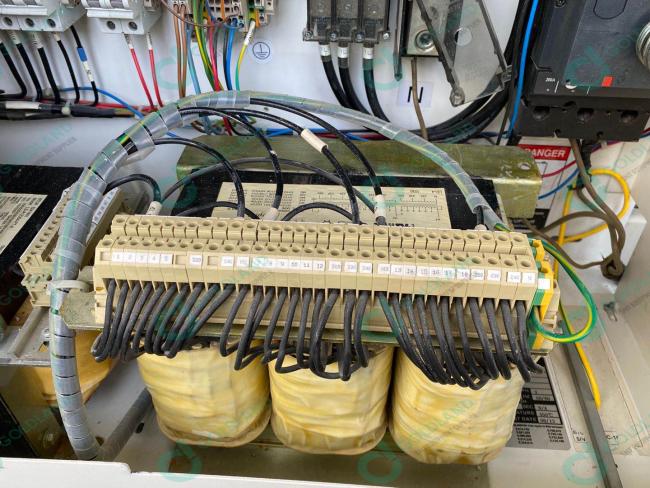

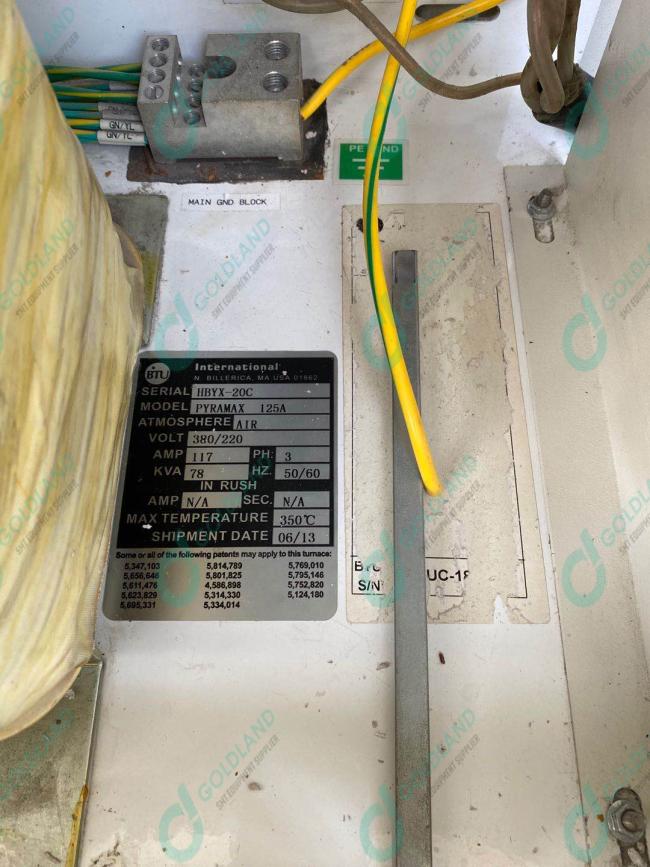

| Voltage Range | 208-480VAC | |
| All specifications are subject to change without notice | ||
| Features | ||
| Lead Free Process-Guaranteed | Programmable Heating and Cooling Rates | Flexible Platform Configuration |
| 350 degree Maximum Temperature | Side to Side Gas Recirculation | Wincon Control Software |
| Forced Impingement Convection | Low Nitrogen and Power Consumption | Electronic Over-Temperature Safety System |
