FPC Flexible PCB Cushion Pad Reusable High Temperature Resistant Hot Press Lamination Buffer Mat for Flexible Circuit Board Manufacturing
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
10-20 working days
Brand:
MK
Product Description

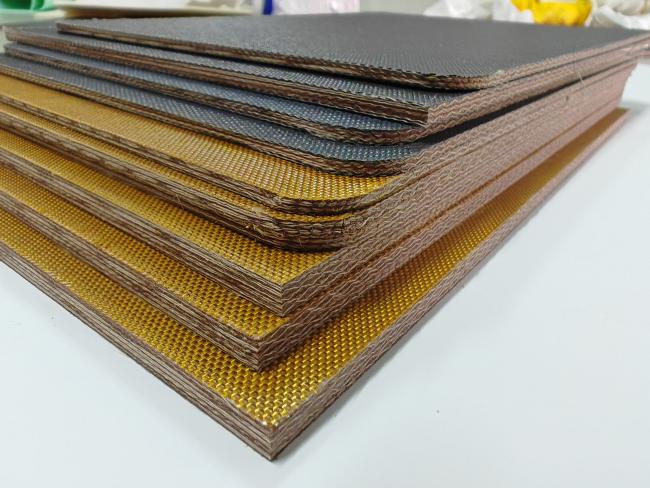

FPC Flexible PCB Cushion Pad Reusable High Temperature Resistant Hot Press Lamination Buffer Mat for Flexible Circuit Board Manufacturing
Reusable High Temperature Resistant Hot Press Lamination Buffer Mat for Flexible Circuit Board Manufacturing
Product Introduction
FPC (Flexible Printed Circuit) technology offers high flexibility, lightweight construction, and easy integration, making it ideal for compact and portable electronic devices. Our ESCP-FPC-G3 cushion pad is specifically engineered for FPC and rigid-flex PCB hot lamination processes, delivering stable buffering, uniform heat conduction, and consistent pressing performance to significantly enhance lamination yield and production efficiency.
This premium reusable buffer mat serves as an advanced replacement for traditional multi-layer hot press kraft paper, perfectly fitting automated PCB lamination lines while reducing overall material costs by over 20%. Also known as FPC lamination press pad, hot press cushion mat, and PCB buffering pad, it is an essential consumable for precision FPC manufacturing.
Product Features
- Reusable for 100-200 lamination cycles, significantly reducing flexible PCB production costs
- Superior performance in flatness, wear resistance, dimensional stability, and thickness consistency, far exceeding traditional hot press kraft paper
- Excellent high temperature resistance, operating continuously at up to 260°C without carbonization or brittleness
- Outstanding buffering effect and thermal conductivity with stable compression and expansion coefficients, plus excellent tear resistance
- Flame retardant, non-toxic, odorless, dust-free, shaving-free, and featuring good breathability
Technical Specifications
| Service Life | 100-200 cycles |
| High Temperature Resistance | ≤260°C |
| Thickness | 1.5-2.0mm |
| Thickness Tolerance | ±0.3mm |
| Size Tolerance (Length/Width) | ±2mm |
| Tensile Strength | ≥ 25 MPa |
| Buffer Standard | ≥ 12% |
| Water Absorption Standard | < 8% (3-8%) |
Product Highlights & Core Features
| Performance Item | Detailed Features & Benefits |
|---|---|
| Reusable Service Life | Supports 100-200 repeated hot lamination cycles, greatly reducing material replacement and production costs |
| Premium Physical Properties | Superior flatness, wear resistance and dimensional stability with low expansion ratio and minimal thickness variation, far exceeding traditional hot press kraft paper |
| High Temperature Resistance | Works stably under continuous high temperature up to 260°C without carbonization, brittleness or performance attenuation |
| Stable Buffering & Thermal Conductivity | Uniform heat conduction, stable compression and expansion coefficient, and excellent tear resistance, ensuring consistent lamination quality |
| Safe & Clean Performance | Flame-retardant, non-toxic, odorless, dust-free and shaving-free with good air permeability, meeting industrial precision production standards |
