Lamination Printing Thickness 0.76 Mm PVC Core Sheet
PVC Core Sheet Size Customized 0.12 - 0.76 mm Thickness For Lamination And Printing
Product Technical Specification

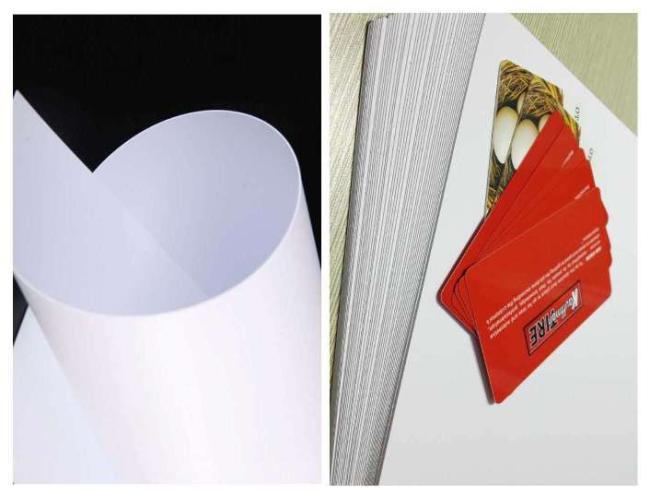

1.PVC Bank Card Base / PVC Core Sheet Introduction
his kind of ordinary PVC sheet can be used for laminating , non-laminating , printing , coating and
cutting , such as membership cards and calendars.
2.PVC Bank Card Base / PVC Core Sheet Specification
PVC Bank Card Base with good ability of lamination and printing.
| Item | Unit | Value | |
| Thickness | mm | 0.10-0.85 | |
| Density | g/cm3 | 1.42 ±0.05 | |
| Tensile Strength | Horizontal | MPa | ≥44 |
| Vertical | ≥46 | ||
| Vicat 5kg | ℃ | 80±2 | |
| Surface Roughness | Ra | μm | 0.7~1.8 |
| Rz | 4.0~12.0 | ||
| Surface Dyne | dynes/cm | ≥34 | |
Customer design can be accept.
3.Applications of PVC Bank Card Base / PVC Core Sheet Specification
PVC Bank Card Base is mainly used for making credit card. Such material can achieve telegraphing
(embossed) , the material does not contain the substance for entering and modifying magnetic materials ,
capable of being labeled with magnetic stripe and encapsulated module , usually , it is matched with overlay film for use.
PVC Bank Card Base is mainly used for bank , capable of making credit card , financial IC card.

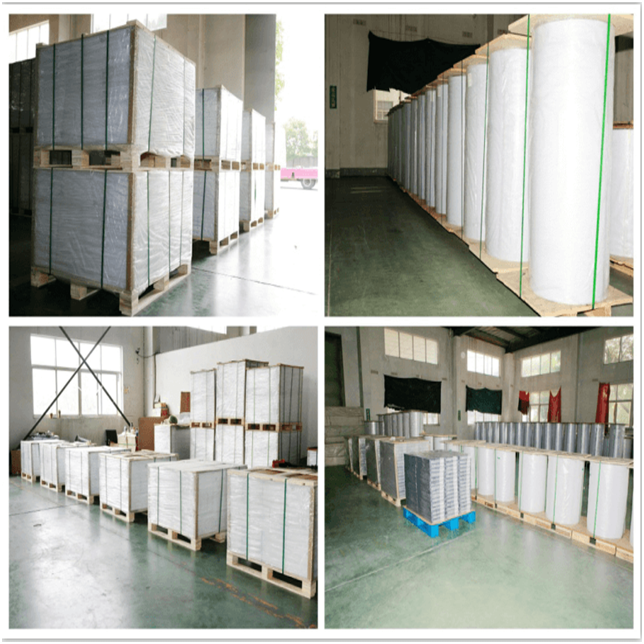

| 4. Packing of PVC Bank Card Base / PVC Core Sheet Specification |
