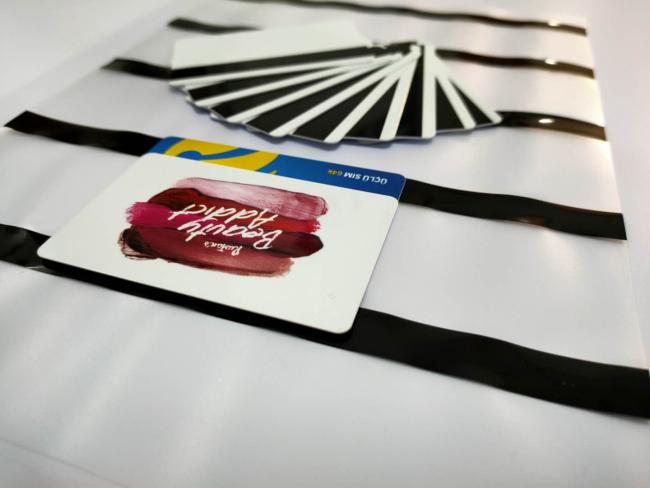

A3 PVC Coated Overlay with Hico Magentic Stripe for PVC Card Lamination​

1.Technical Specification of A3 PVC Coated Overlay with Hico Magentic Stripe for PVC Card Lamination​

Technical Parameters:
1. Size: in sheet, A4, A3 or as per customer requirements

2. Coated overlay thickness range in mm: 0.04,0.05,0.06,0.08,0.10

3. Magnetic stripe feature: HICO/LOCO, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY

4. Size tolerance: +/-0.5 mm in length and width, +/-5% in thickness.

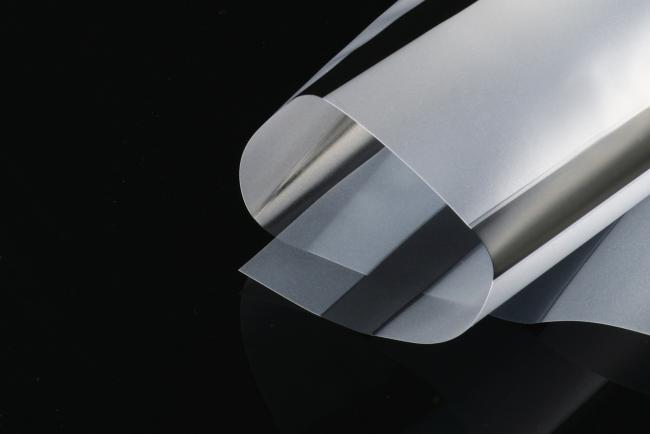

5. Color: transparent with one-side glue coating.

6. Package method: 100/200 sheets per bag or as per customer requirements.

7. Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.

2.Other Features of 0.08mm High Adhesion A4 Size PVC Coated Overlay with Magnetic Stripes

Features

♦ Chemically stable.

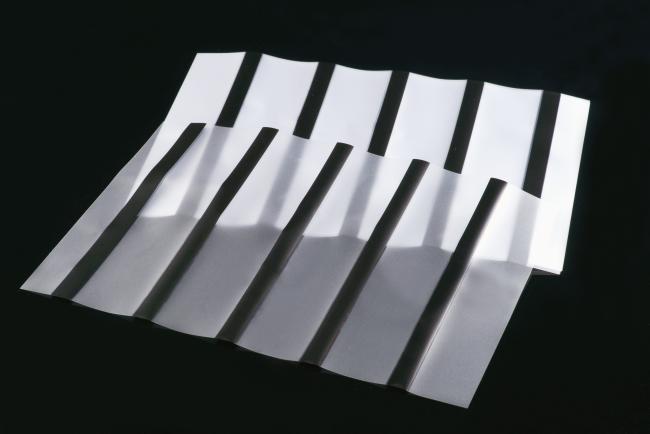

♦ PVC Coated Overlay with Black Magnetic Stripe.

♦ One side is coated with hot-melt glue.

♦ High bonding strength makes high quality cards.

♦ Goes well with offset , screen or inkjet printed pvc sheets.

♦ applicable for press lamination type.
♦ Easy to use, simplify swipe cards production process.
♦ anti-abasion, extend card life.

Steps to make cards:

1.Put printing core and two overlays together, then put into the laminator.(the laminating temperature and time is determined as per the instruction of the machine).Please be noticed that all glue sides of both PVC sheets and Overlays are put inward.

2.Tlamination lasts 10-15 minutes. The pressure is 6-8Mpa.The temperature is 120-140°C.

3.Cutting the card.

3.Application of 0.08mm High Adhesion A4 Size PVC Coated Overlay with Magnetic Stripes
PVC Coated magnetic stripe overlay film is used as an outer layer on the printed PVC sheets in card lamination. It simplifies the card making process and provides high bonding strength. It efficiently prevents the cards from scratching or cracking, and cuts down the waste rate in production.
