Slight Matte Laminated Steel Plate 0.3um Surface Roughness For Pvc Card Material Laminating
Slight Matte Laminated Plate 0.3um Surface Roughness For PVC Card Material Laminating
1. Product Features Introduction of Slight Matte Laminated Plate 0.3um Surface Roughness For PVC Card Material Laminating
They are applied as the consumables in plastic card lamination. It can well ensure perfect plastic card surface finish after lamination. Our plates are being widely used by many card factories in both China and foreign countries worldwide.
Key Features:

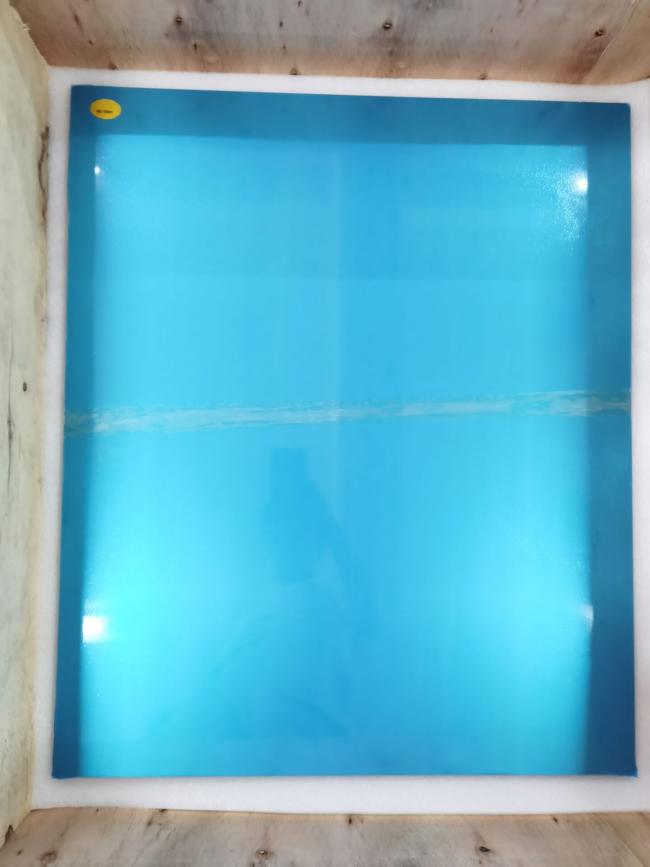

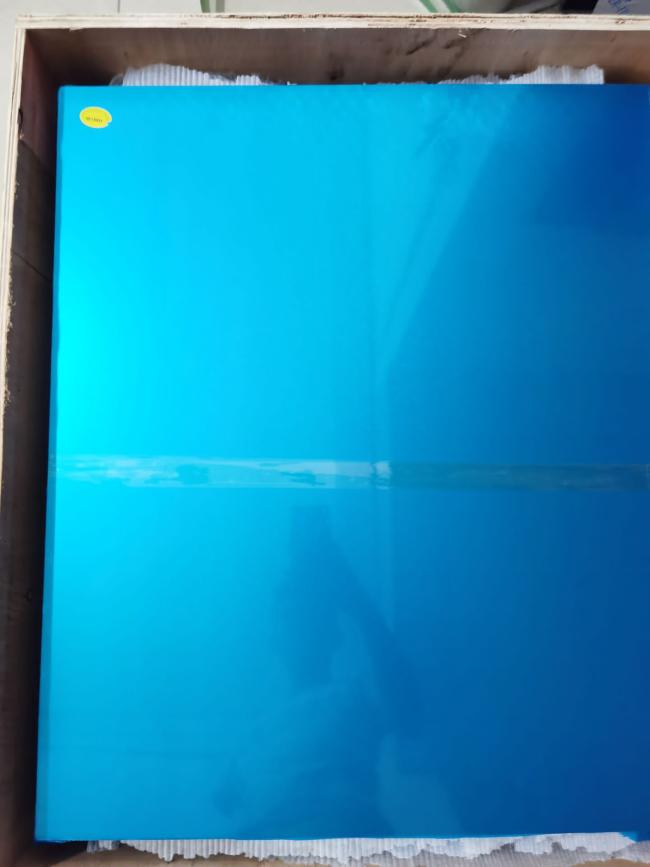

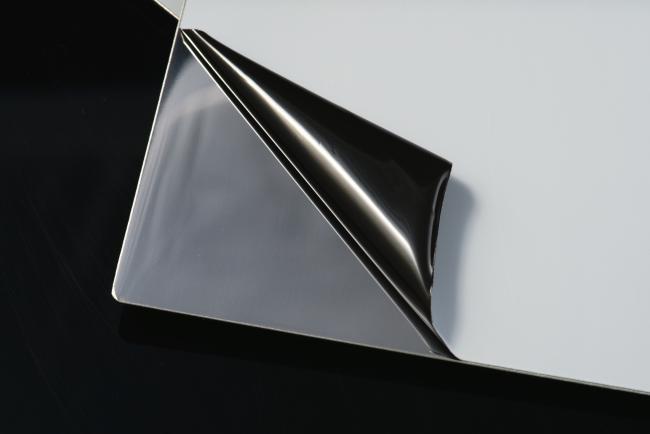

1. The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces. There is no glue left after the foil is removed before the plate is used at the first time.
2. Two sides are made matte in the same quality.
3. There are no scratches, dents, stripes shadows and dust on plate surfaces.
4. The edges are smooth and deburred with the round curved corners.
5. After lamination, the plates are not sticking to the laminated plastic sheets.
* Customer design can be accept.
2. More details of Slight Matte Laminated Plate 0.3um Surface Roughness For PVC Card Material Laminating
Detailed Product Description:
1). Glossy finish, matte finish, mirror finish,etc.
2). Size & thickness on request
3). High-grade stainless steel
Features:
1). Card laminator Accessories
2). 800 Micron thickness
3). Characteristic: heat-resistant, high elasticity
| Thickness range | 0.8 mm (Thickness tolerance: ±0.05mm) |
| Dimension tolerance | ±1mm |
| Plate size(L×W) | A4, A3 or custom-made size |
| Plate flatness level | maximum 1 mm |
| Surface pattern | special pattern |
| Surface hardness | HRC80±20 |
| Thermal transmission | 0.04cal/℃.cm.sec at 20℃ |
| Edge state | smooth and deburred with the round curved corners |
| Packaging box | solid plywood carton with soft cushion protection inside. |
3. Prodction Packing of Slight Matte Laminated Plate 0.3um Surface Roughness For PVC Card Material Laminating

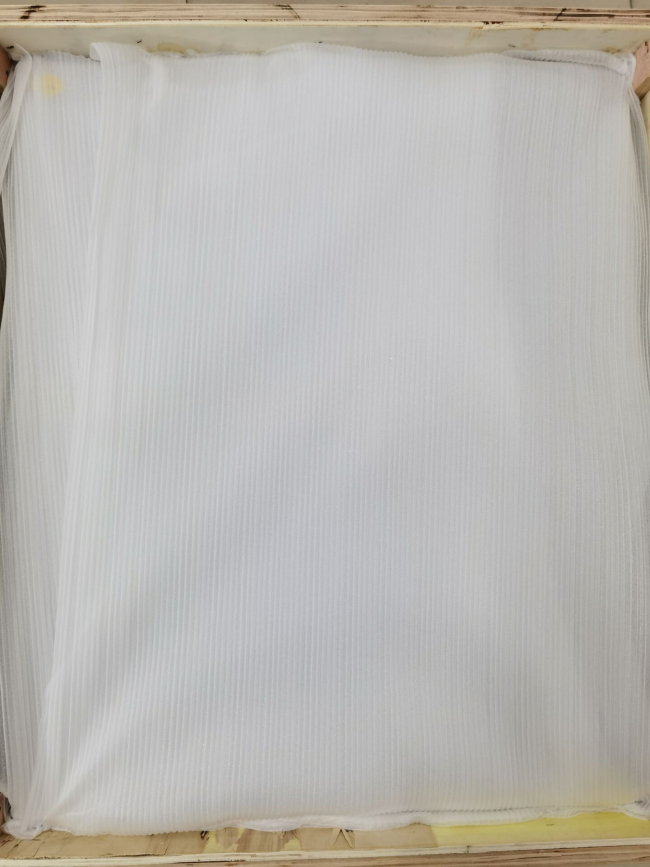

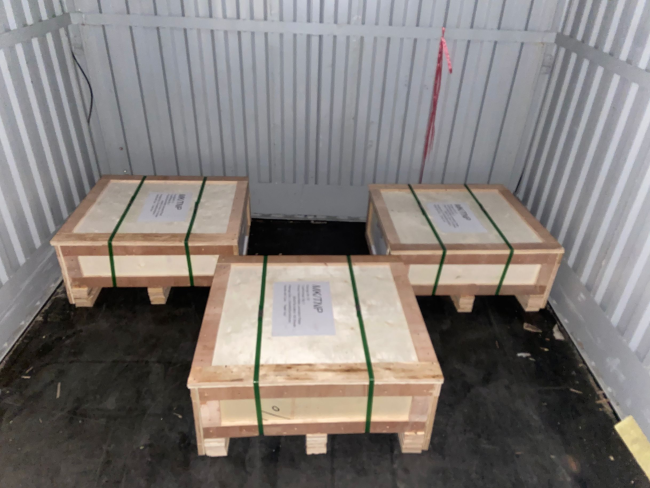

Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport
