Rotary Hearth Furnace Equipped with High-Temperature Flue Gas Induced Draft Fan

Price Negotiable
Price: $10000-5,0000.00/set
MOQ: 1 set
Delivery Time: 35days (To be negotiated)
Brand: SIMO BLOWER
Product Description

Product Description

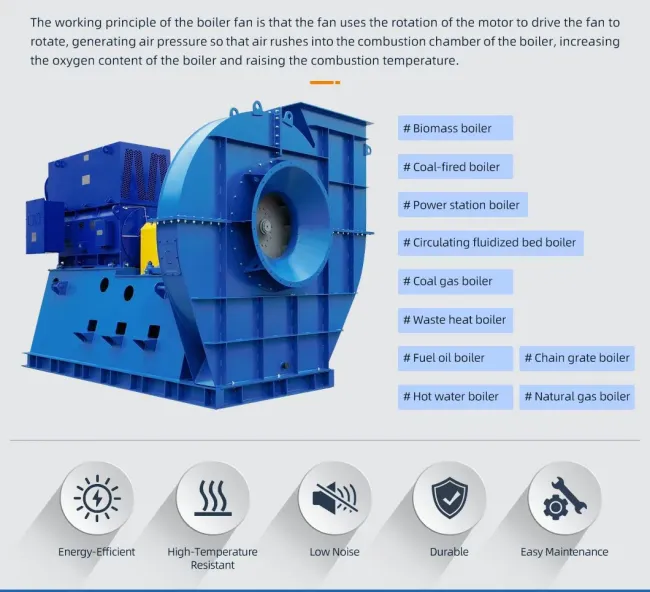

Our specially designed high-temperature induced draft (ID) fan provides reliable and efficient flue gas extraction for rotary hearth furnace systems. Engineered to withstand extreme thermal conditions and corrosive atmospheres, this fan ensures stable negative pressure control, optimized combustion, and effective emission management in demanding metallurgical and heat treatment applications.

280kw High Efficiency Low Pressure Centrifugal ID Fan in Boiler
1.It can work stably at a high medium temperature, and can output a large gas flow with low noise when the pressure requirement is met.
2.The fan blade placement angle is optimized, more wear-resistant and longer service life.
3.The air damper can be used to flexibly adjust the pressure and flow of the fan during operation. It is also possible to select a variable frequency motor, with adjust the pressure and flow of the fan by changing the speed.
4.For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel,  high-temperature alloy steel, high temperature resistant high-strength alloy steel under different working conditions temperature and working speed, so that the impeller and main shaft still maintains a reliable strength at high temperature.
5.Fan systems with impeller diameters less than 1400 mm at normal temperature do not require additional bearing cooling devices, reducing users' investment and maintenance.
6.The impeller is annealed to eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.
7.The weld of the impeller and the main shaft are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.
8.The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
9.There are a variety of accessories to choose from.

Product Parameters
Please provide the fan operating conditions and parameter information, and the business manager will give you a quote
280kw High Efficiency Low Pressure Centrifugal ID Fan in Boiler
series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
4-10 8D 1450 2104~1400 16156~30993 18.55
9D 960 ~ 1450 775 ~ 2668 15229 ~ 44128 11 ~ 37
10D 730 ~ 1450 553 ~ 3301 15886 ~ 60533 7.5 ~ 55
11D 730 ~ 1450 669 ~ 4003 21144 ~ 80570 11 ~ 90
12D 730 ~ 1450 797 ~ 4777 25661 ~ 104600 15 ~ 132
14D 730 ~ 1450 1086 ~ 6541 43591 ~166100 37 ~ 315
16D 580 ~ 960 895 ~ 3709 51699 ~ 164150 45 ~ 185
18D 580 ~ 960 1133 ~ 4710 73610 ~ 233730 75 ~ 280
20D 580 ~ 960 1400 ~ 5837 100970 ~ 320610 110 ~ 520
22D 480 ~ 960 1216 ~ 6865 116000 ~ 434000 140 ~ 850
25D 480 ~ 730 1579 ~ 5138 171000 ~ 484000 165 ~ 700
28D 375 ~ 730 1205 ~ 6400 187000 ~ 680000 320 ~ 1250
29.5D 596 ~ 745 3236 ~ 7218 348000 ~ 810000 800 ~ 1600

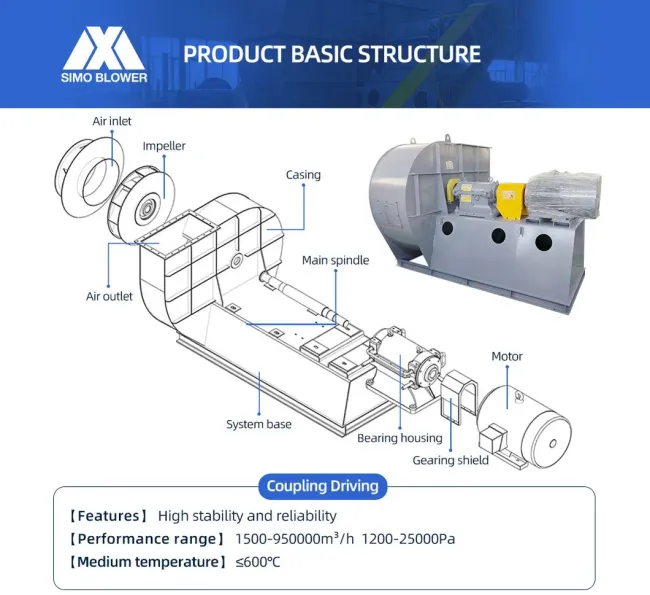

Driven Mode

280kw High Efficiency Low Pressure Centrifugal ID Fan in Boiler280kw High Efficiency Low Pressure Centrifugal ID Fan in Boiler
280kw High Efficiency Low Pressure Centrifugal ID Fan in Boiler


280kw High Efficiency Low Pressure Centrifugal ID Fan in Boiler

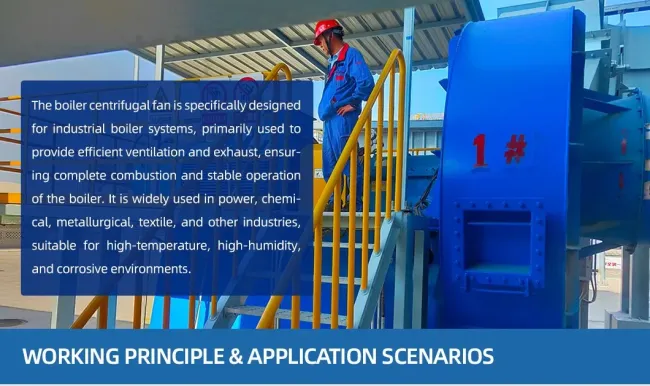

Field Case
280kw High Efficiency Low Pressure Centrifugal ID Fan in Boiler

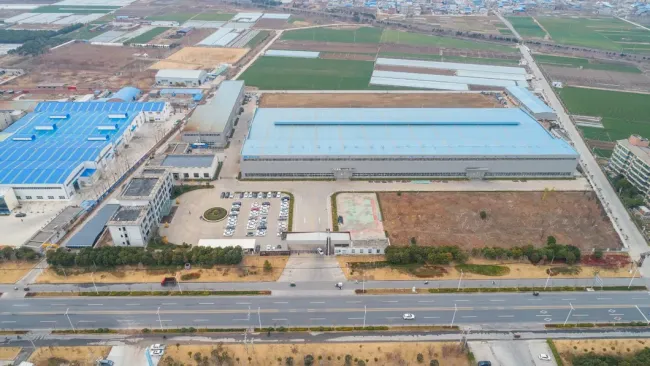

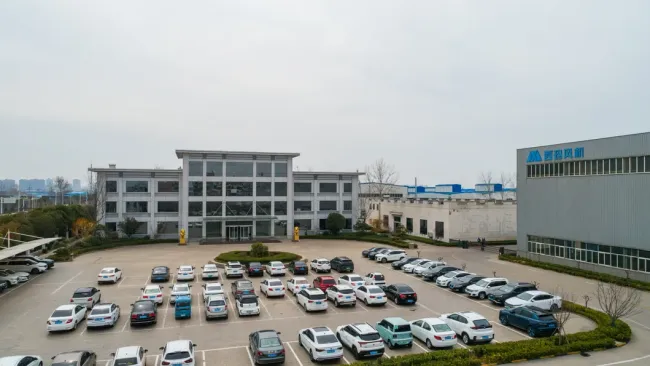

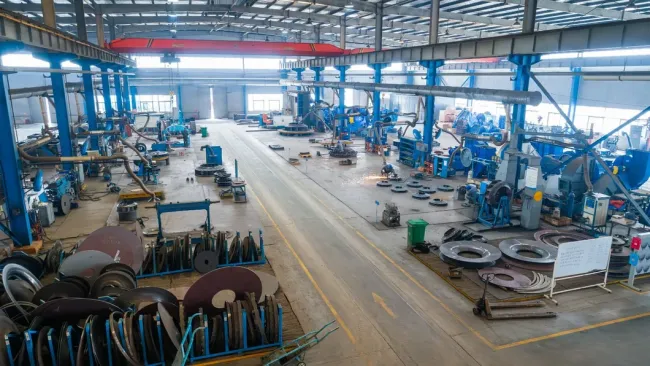

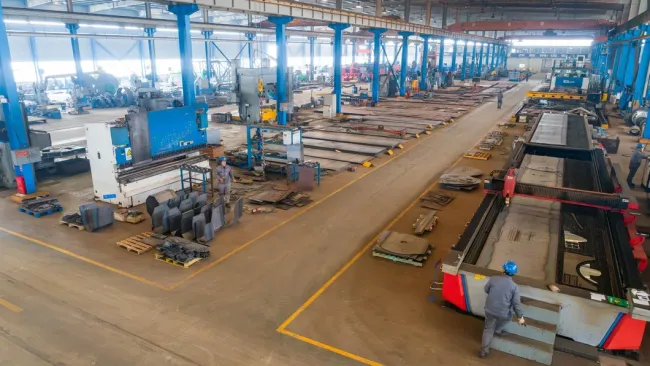

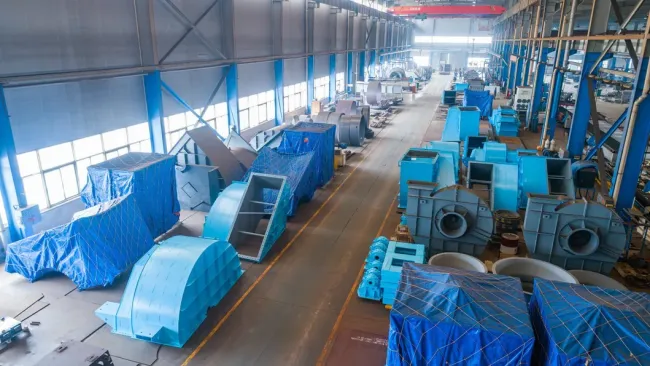

Factory Scene

280kw High Efficiency Low Pressure Centrifugal ID Fan in Boiler280kw High Efficiency Low Pressure Centrifugal ID Fan in Boiler280kw High Efficiency Low Pressure Centrifugal ID Fan in Boiler280kw High Efficiency Low Pressure Centrifugal ID Fan in Boiler280kw High Efficiency Low Pressure Centrifugal ID Fan in Boiler

280kw High Efficiency Low Pressure Centrifugal ID Fan in Boiler
280kw High Efficiency Low Pressure Centrifugal ID Fan in Boiler
