Stainless Steel High Pressure Centrifugal Fan For Kilns Cooling
Stainless Steel Kilns Cooling High Pressure Centrifugal Blower Fan
Introduction
Stainless Steel Kilns Cooling High Pressure Centrifugal Blower Fan is the latest series of high-efficiency industrial centrifugal fan developed by our company.
Stainless Steel Kilns Cooling High Pressure Centrifugal Blower Fan has the highest efficiency of 88.3%.
Stainless Steel Kilns Cooling High Pressure Centrifugal Blower Fan belongs to small flow and medium pressure series.
Stainless Steel Kilns Cooling High Pressure Centrifugal Blower Fan has stable and high performance and is widely used in environmental dust removal, material transportation and equipment matching in industrial fields.
Technical data
| Centrifugal Fan series | Centrifugal Fan model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 7-03 | 5D | 3030 | 2982 ~ 3456 | 4486 ~ 8971 | 11 ~ 15 |
| 5.6D | 2360 | 2623～2264 | 4909～9817 | 11 | |
| 7.1D | 1830 ~ 2450 | 2188 ~ 3862 | 7757～20771 | 15 ~ 30 | |
| 8D | 1910 | 3517～3034 | 11582～23164 | 30 | |
| 9D | 1570 | 3002～2591 | 13555～27111 | 30 | |
| 10D | 1470 ~ 1650 | 2806 ~ 4109 | 17410 ～ 36478 | 45 ~ 55 |
Advantages and Features
1.This series of centrifugal fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
2.The current collector and impeller front plate are processed by advanced spinning process and ensure precision.

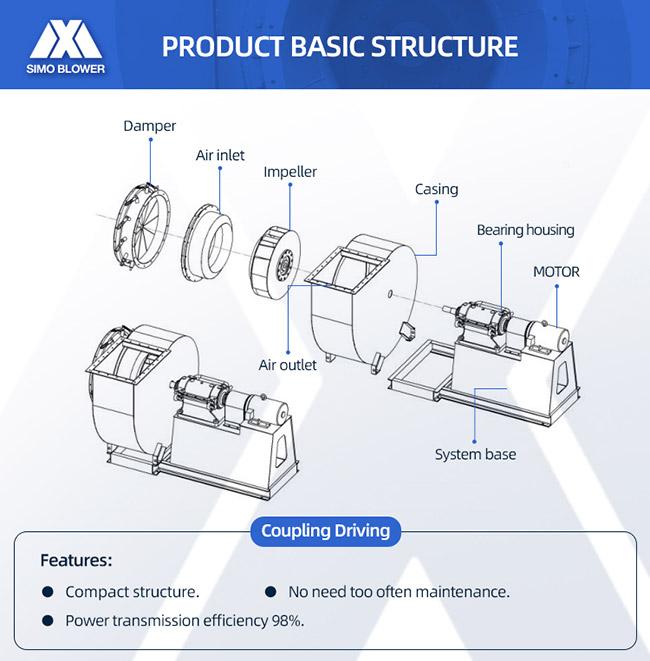

3. V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.
4. Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.
5. The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.
