22kW Large Air Volume Centrifugal Fan for Industrial Ventilation Systems

Introduction

This series centrifugal fan is generally used for gas transportation of granular or powdery materials, and can be widely used to transport air and non-corrosive non-self-igniting, non-viscous substances.

The temperature of the medium generally does not exceed 50°C (max 80°C), the dust and hard particles contained in the medium is not more than 150 mg / m3.

Centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.

Technical data

Advantages and Features

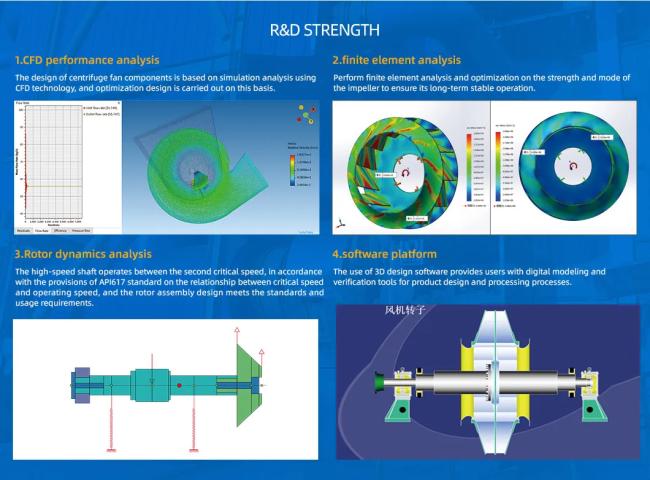

1. According to customer performance requirements customized design, and optimized by CFD technology, the energy consumption is lower than similar models.

2. The blade placement angle is optimized, more wear-resistant and longer service life.

3. The variable inlet damper can be used to flexibly adjust the pressure and flow of the fan during operation. The variable frequency motor can also be selected to adjust the pressure and flow of the fan by changing the speed.

4. The fan is equipped with temperature and vibration sensors, which can easily install the fan operation monitoring device.

5. Made of high quality carbon steel, stainless steel or other metal materials are available upon request.

6. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.

7. Bearing cooling method: according to gas temperature and operating environment conditions choose low-cost water-cooling method or oil-cooling method with good heat dissipation performance.

For extremely high temperature operating conditions, can also be installed with an electronic cooler, absolute protection of the reliable operation of the fan system.

8. Large parts and components are disassembled and transported, so that most parts can be loaded into containers for transportation, saving you shipping costs.

9. Each component has an installation number. Under the guidance of the installation manual, the system assembly can be completed smoothly.

10. Provide on-site arrangement and guidance services.
