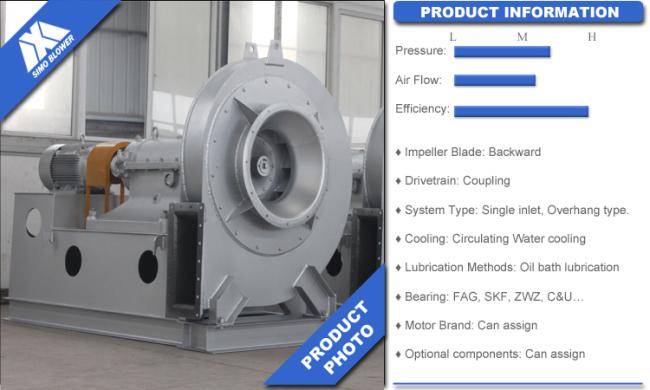

Stainless Steel Explosion Proof Gas Delivery High Temperature Centrifugal Fan
Stainless Steel Explosionproof Gas Delivery High Temperature Centrifugal Fan
Introduction
The 6-11 series have the characteristics of high efficiency, flat performance curve, wear resistance, and work stability.
It has the characteristics of high efficiency and low noise, and this series is a range of centrifugal fans with a wide range of performance.
The fan is easy to install and repair.
Product features
1. The bearing housing uses labyrinth mechanical seal, unique anti-leakage design inside, vent hole at the top, and sealing grease at the joint, completely eliminating the possibility of oil leakage in the bearing hosing.
2. Motor slide guide can be provided for convenient belt tensioning to reduce energy loss caused by belt slack.
3.After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack.
Technical specifications
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 6-11 | 14D | 1450 | 5435～7086 | 22889～41542 | 90～110 |
| 15D | 1450 | 6240～8134 | 28153～51095 | 110～160 | |
| 16D | 1450 | 7099～9255 | 34167～62011 | 160～220 | |
| 17D | 1450 | 8014～10448 | 40892～74379 | 220～280 | |
| 18D | 1450 | 8986～11713 | 48648～88292 | 280～400 | |
| 19D | 1450 | 10012～13051 | 57215～103840 | 400～500 | |
| 20D | 1450 | 11093～14461 | 66733～121114 | 450～630 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
