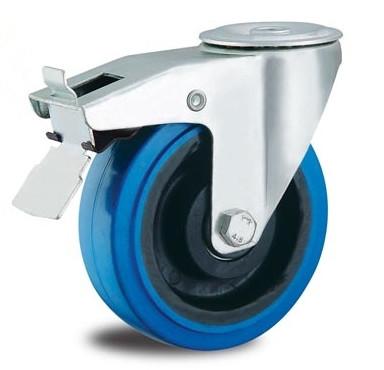

8 inch hollow kingpin caster wheels trolley wheels cart casters

Technical parameters

Picture	Item No.	Wheel material	Wheel diameter	Wheel width	Load capacity	Setting height	Bolt hole size	Bracket thickness
	E-R75-KLZ	rubber	75mm	36mm	50kg	94mm	10.5mm	2.0
	E-R100-KLZ	rubber	100mm	36mm	70kg	124mm	12.5mm	2.0
	E-R125-KLZ	rubber	125mm	36mm	100kg	150mm	12.5mm	2.0
	E-R160-KLZ	rubber	160mm	50mm	140kg	195mm	16.5mm	2.5
	E-R200-KLZ	rubber	200mm	50mm	200kg	235mm	16.5mm	2.5

DESCRIPTION

Bolt-hole casters can be attached to racks, carts, furniture, and other equipment to allow them to roll, which reduces the effort required to move or reposition the equipment. Also known as hollow-kingpin casters, they have an open hole that provides versatility when mounting the casters to equipment.

Advantages

Non-marking elastic rubber tread ,rolls silently and smoothly

Rolls easily and low starting effort
Impact resistant PP core,to support heavy load capacity
Corrosion-resistant zinc coated steel finish,not easy to rust

360 swivel bolt hole plate

Precison roller bearing

Application:carts,hand truck trolley,dollies,furnitures ,tool box and medium duty industrial equipment,racks
