Soft Rubber Wheel For Trolley Bolt Hole Casters Apparatus Castors

Bolt hole casters insitutional apparatus castors trolley wheels
Features

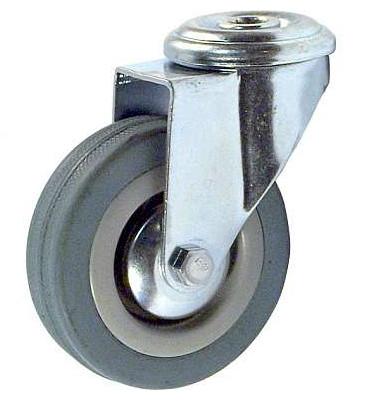

This apparatus / institutional castor comes with gray rubber tyre wheel fitted into single Bolt Hole swivel castor with a double ball race swivel head
Silent rubber casters will not mark or damage the floor and is ideal for most general, light duty castor purposes such as trolley castors or dolly castors. Provides excellent rolling performance and low starting effort
Single Bolt Hole castors can have a expander tube fitting

Anti corrosiion zinc plated finish,bright color and not easy to rust
DESCRIPTION

Soft rubber caster wheels with bright gray color

Diameter:2 inch / 2.5 inch / 3 inch / 4 inch / 5 inch

Load capacity:30kg-100kg

Plate type : bolt hole caster ,bolt hole casters with brakes

Galvanized zinc pressed steel
Technical parameters

bolt hole silent rubber caster
Wheel material	Model No	Diameter	Tread width	Load capacity	Bolt hole	Total height
soft rubber wheels rolls silently	OY1-R50-KGZ	50mm	17mm	30kg	10mm	68mm
	OY1-R65-KGZ	65mm	20mm	40kg	10mm	92mm
	OY1-R75-KGZ	75mm	20mm	50kg	10mm	97mm
	OY1-R100-KGZ	100mm	25mm	80kg	12mm	132mm
	OY1-R125-KGZ	125mm	27mm	100kg	12mm	156mm
