Heavy Duty Trolley Wheels

heavy duty rubber caster wheels

Product description

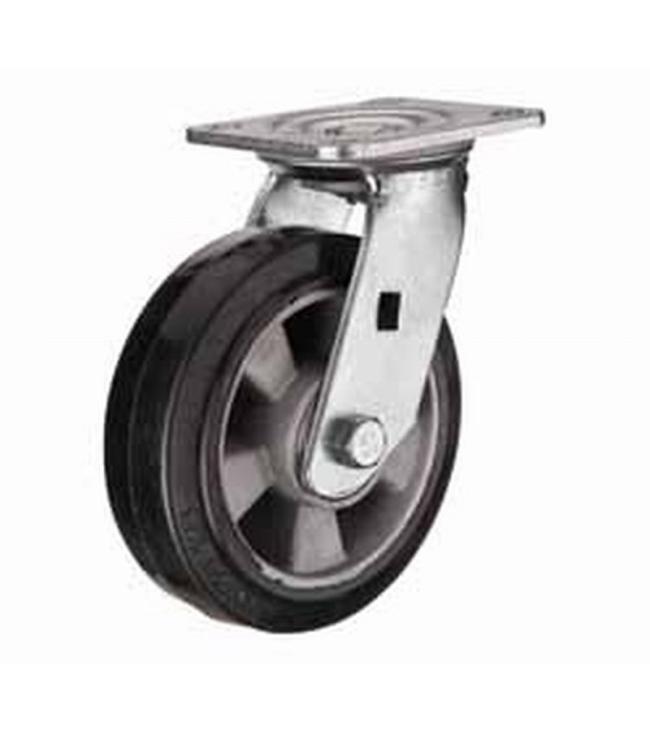

Heavy duty black rubber wheel on aluminium core
Offers higher weight capacities while providing good floor protection and quiet rolling operation.
Works well in both indoor and outdoor environments; however aluminium core can rust
Rubber hardness shore A90

Wheel diameter :100mm,125mm,150mm and 200mm
Wheel width :50mm
Load capacity :600lbs
Wheel material :rubber

Wheel core:aluminium

Bolt hole spacing :84*72mm
Plate size :115*99mm
Bearing :precision double ball bearing
Finish/Coating: bright zinc plated

Application: heavy duty trolley wheel,other heavy duty equipment

Technical parameters

Picture	Item No.	Material	Wheel diameter	Tread width	Load capacity	Overall height	Hole spacing	Plate size
	OY3-R100-SBZ	rubber	100mm	50mm	190kg	142mm	84*72mm	115*99mm
	OY3-R125-SBZ	rubber	125mm	50mm	220kg	163mm
	OY3-R150-SBZ	rubber	150mm	50mm	250kg	193mm
	OY3-R200-SBZ	rubber	200mm	50mm	300kg	240mm

Picture	Item No.	Material	Wheel diameter	Tread width	Load capacity	Overall height	Hole spacing	Plate size
	OY3-R100-BBZ	rubber	100mm	50mm	190kg	142mm	84*72mm	115*99mm
	OY3-R125-BBZ	rubber	125mm	50mm	220kg	163mm
	OY3-R150-BBZ	rubber	150mm	50mm	250kg	193mm
	OY3-R200-BBZ	rubber	200mm	50mm	300kg	240mm

Picture	Item No.	Material	Wheel diameter	Tread width	Load capacity	Overall height	Hole spacing	Plate size
	OY3-R100-FBZ	rubber	100mm	50mm	190kg	142mm	84*72mm	115*99mm
	OY3-R125-FBZ	rubber	125mm	50mm	220kg	163mm
	OY3-R150-FBZ	rubber	150mm	50mm	250kg	193mm
	OY3-R200-FBZ	rubber	200mm	50mm	300kg	240mm
