Red PU Trolley Wheel
Price:
negotiable
MOQ:
300pcs
Delivery Time:
5-7 working days
Product Description

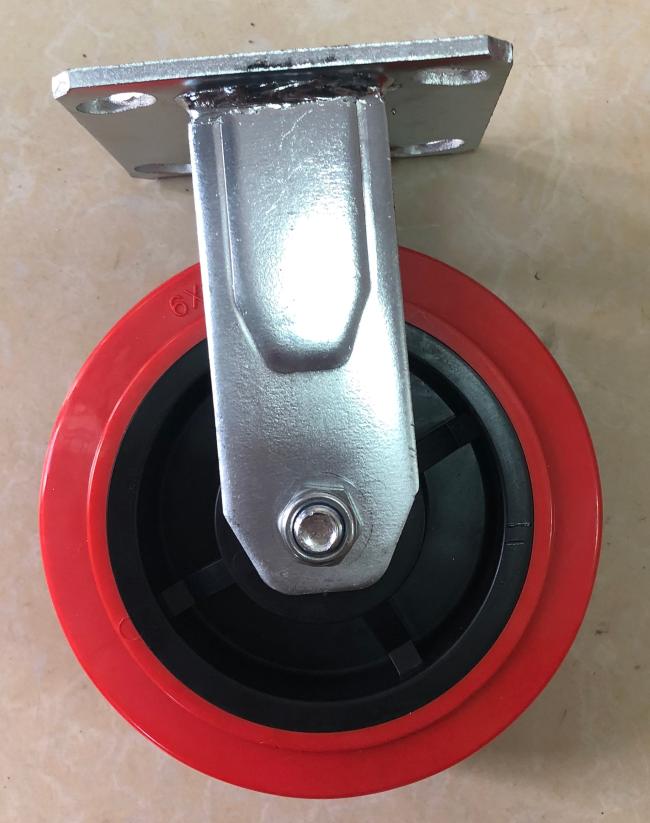

red PU heavy duty trolley wheel
Product description
material:red polyurethane wheel on PP core
diameter:4 inch ,5 inch, 6 inch and 8 inch
finish: zinc plated
hole spacing:84*72mm
plate size:115*99mm
load capacity:200kgs-300kgs
bearing:precision double ball bearing
bracket thickness:thick 5.5mm or thin 4.5mm ,you can choose the type according to your budget
application: heavy duty trolley wheel,material handling equipment and other factory machine
Technical parameters
| Picture | Item No. | Material | Wheel diameter | Tread width | Load capacity | Overall height | Hole spacing | Plate size |
|
|
OY3-PU100-SWZ | PU | 100mm | 50mm | 190kg | 142mm | 84*72mm | 115*99mm |
| OY3-PU125-SWZ | PU | 125mm | 50mm | 220kg | 163mm | |||
| OY3-PU150-SWZ | PU | 150mm | 50mm | 250kg | 193mm | |||
| OY3-PU200-SWZ | PU | 200mm | 50mm | 300kg | 240mm |
| Picture | Item No. | Material | Wheel diameter | Tread width | Load capacity | Overall height | Hole spacing | Plate size |
 |
OY3-PU100-FWZ | PU | 100mm | 50mm | 190kg | 142mm | 84*72mm | 115*99mm |
| OY3-PU125-FWZ | PU | 125mm | 50mm | 220kg | 163mm | |||
| OY3-PU150-FWZ | PU | 150mm | 50mm | 250kg | 193mm | |||
| OY3-PU200-FWZ | PU | 200mm | 50mm | 300kg | 240mm |
| Picture | Item No. | Material | Wheel diameter | Tread width | Load capacity | Overall height | Hole spacing | Plate size |
 |
OY3-PU100-BWZ | PU | 100mm | 50mm | 190kg | 142mm | 84*72mm | 115*99mm |
| OY3-PU125-BWZ | PU | 125mm | 50mm | 220kg | 163mm | |||
| OY3-PU150-BWZ | PU | 150mm | 50mm | 250kg | 193mm | |||
| OY3-PU200-BWZ | PU | 200mm | 50mm | 300kg | 240mm |
