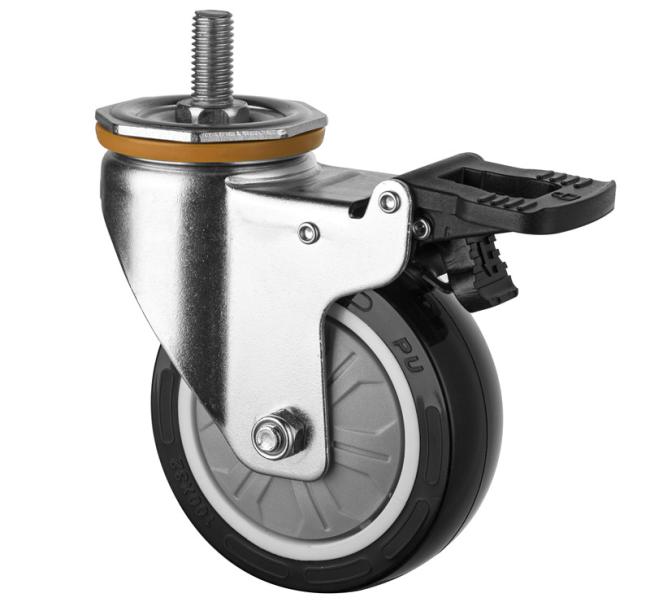

5 Inch Medium Duty PU Caster With Threaded Stem

5 inch PU trolley wheel

Description:

The wheels made of the popular non-marking polyurethane type, very quiet running, absorbs shock and vibrations.Precision single ball bearing and dual locking bring a max loading capacity and safety.A saving of time and labour.

Casters rotate 360 degrees which makes turning the mating equipment possible, Is good for transporting furniture and displays quietly and safely.

Steel structures body is extremely hard wearing and resistant to dirt, strong bearing capacity.

Widely used for carts, trolley,stereo equipment,exhibition equipment, tool boxes, equipment stands, mobile workstations, cabinets, dollies, mobile workstations ,etc

Technical parameters

swivel threaded stem caster -black PU caster
Model	OY2-PU63-TBZ	OY2-PU75-TBZ	OY2-PU100-TBZ	OY2-PU125-TBZ
Caster diameter	63mm	75mm	100mm	125mm
Tread width	32mm	32mm	32mm	32mm
Load capacity	80kg	110kg	140kg	150kg
Total height	98mm	110.5mm	134.5mm	160.5mm
Stem size	12*25mm
Bearing	precision single ball bearing
Finish	zinc plated

threaded stem caster with brake -polyurethane wheel
Model	OY2-PU63-GBZ	OY2-PU75-GBZ	OY2-PU100-GBZ	OY2-PU125-GBZ
Caster diameter	63mm	75mm	100mm	125mm
Tread width	32mm	32mm	32mm	32mm
Load capacity	80kg	110kg	140kg	150kg
Total height	98mm	110.5mm	134.5mm	160.5mm
Stem size	12*25mm
Bearing	precision single ball bearing
Finish	zinc plated
