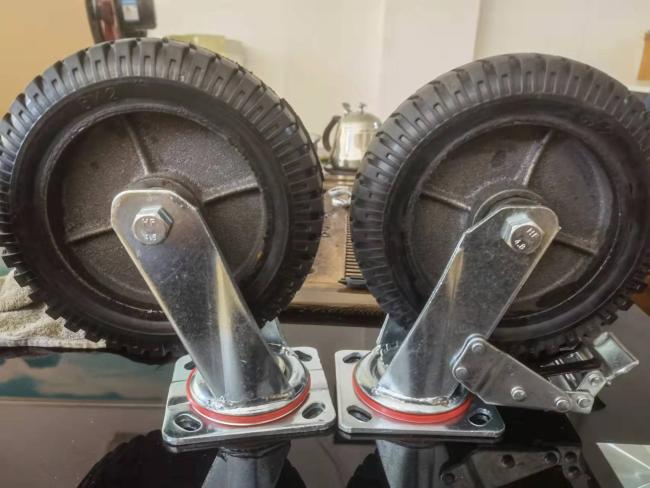

Heavy Duty Cast Iron Rubber Castors 8 Inch

heavy duty swivel rubber on iron caster with brake

Product details
QUALITY: cast iron rim rubber caster wheels offer easy roll-ability, floor protection, non-marking performance. Our industrial wheels are ready for your heavy duty project.

CASTER SIZE: wheel diameter 4 inch,5 inch, 6 inch and 8 inch . plate size: 4.5" (115mm) x 3.9" (100mm), hole center to hole center: 3.3" (85mm) x 2.8" (72mm), mounting hole dimensions: 0.74" (19mm) x 0.4" (10mm).

MULTITUDE OF APPLICATIONS: The rubber wheels can be widely used for a different applications Including: heavy duty trolley,flight cases, Instrument cases, dollies, tool boxes, light machinery, equipment stands, cabinets, furniture etc.

SPECIFICATION
Load capacity: 600lbs each caster wheel
Top plate size: 4.5" (115mm) x 3.9" (100mm)
Hole center to hole center: 3.3" (85mm) x 2.8" (72mm)
Mounting hole dimensions: 0.74" (19mm) x 0.4" (10mm)
Caster wheel diameter: 4'' 5'' 6'' and 8'' available
Caster wheel width: 2" (50mm)
Caster wheel core: cast iron,black color or red color available
Wheel tread: black rubber ,hardness shore A75
Ball bearings: precision double ball bearings 6203
