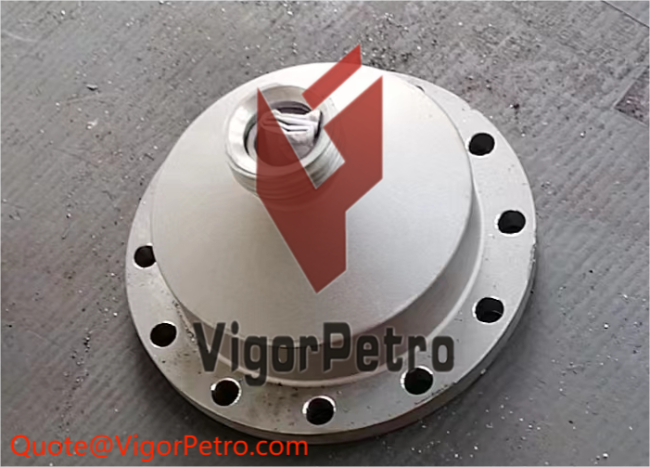

Adaptor flange 10" CL150 RF Flange down x 2" FIG 1502 WECO female Up A105 AF10CL150X2150F
Adaptor flange 10" CL150 RF Flange down x 2" FIG 1502 WECO female Up A105 AF10CL150X2150F
Description:
WECO ADAPTER
Adaptor flange
2" FIG 1502 WECO female Up x 10" Cl 150 RF Flange down .
Design Spec: ASME B16.5
Dimensional Spec: ASME B316.10M
Material: A105N
Welding and NDE: SES 38.2 Rev 9
Facing, Flange: Raise Face
Pressure designation, Flange: ASME Class 150
Inspection Cert: EN 10204 # 3.1, ISO 10474 -3.1
Size, Flange: DN 250
Size, WECO: 2" Female
Standard, external API SPEC 6A 21ST EDITION
Minimum material requirements ASTM A105 NORMALISED
Service requirement NACE MR-01-75
Size 10 in
DN 250
Configuration API FLANGE x WECO HUB
Pressure rating 15000 psi (WECO)
285 psi
Size, union 2 in
Figure number. union 1502
Configuration, union end FEMALE
Design spec, flange(s) ASME B16.5
Pressure desig, flange ASME CL 150
Dimensional spec ASME B316.10M
Facing, flange RAISED FACE
Inspection, certif EN 10204 -3.1
VigorPetro Manufactures and provides Weco Union Adapter Flanges in both Female and Male connection types. Flange sizes range from 1-13/16" to 7-1/16", WECO size 2", 3" and 4" with Figure 206, Figure 602, Figure 1002, Figure 1502, Figure 2002 and Figure 2202 connections, the cold working pressures starting from 2000PSI to 20000PSI.
VigorPetro's WECO Union Adapter Flanges are widely used in connection of different connectors for the oilfield wellhead, manifold, frac equipment etc. Weco Flanges are fully designed, manufactured, and tested in accordance with API 6A and API Spec Q1 standards. The standard material is high quality integral forged AISI 4130 alloy steel, AISI 410 Stainless Steel and other material are available upon customer's request.
We can also supply the Weco Adapter Flange with a Blacking Plug (Blind Male or Blind Female Plug) c/w 1/2” NPT Port.
Specifications:
| Product Name | Weco Flange, Adpter Flange, Union Falnge |
| Flange Size | 1-13/16", 2-1/16", 2-9/16", 3-1/16", 3-1/8", 4-1/16", 5-1/8", 7-1/16“ or Customized |
| Weco Size | 1", 2", 3", 4" |
| Weco Conection | Fig 206, Fig 602, Fig1002, Fig1502, Fig 2002, Fig 2202 |
| WorkingPressure | 2000PSI, 3000PSI, 5000PSI, 10000PSI, 15000PSI, 20000PSI |
| Material | AISI 4130, AISI 410SS, INCONEL 625, or as per customers' requirements |
| Temp. Class | PU, LU, KU, PX |
| Material Class | AA, BB, CC, DD, EE, FF, HH |
| PSL | PSL1, PSL2, PSL3, PSL3G, PSL4 |
| PR | PR1, PR2 |
| Standard | API 6A 21TH, NACE MR0175 |
| Application | Wellhead, Manifolds, Frac, Pipe Connection |
We are a professional manufacturer of Wellhead Assemblies, Christmas Trees, API6A Gate Valves, Blowout Preventers, Choke Manifolds, Kill Manifolds etc. Aside from API6A Weco Union Adapter Flange, we also produce and sell Welding Neck Flange, Threaded Flanges, Spacer Spool Flanges, Blind Flanges, Companion Flanges, Target Flanges, Test Flanges, Double Studded Adapter Flanges(DSAF), and Adapter Spools for all client needs.
