200W Waterproof Ip65 Outdoor Indoor Custom Advertising Gobo Led Zoom logo Projector Light

Price Negotiable
Price: Negotiable
MOQ: 5
Delivery Time: 10-15days
Brand: Intuiit
Product Description

200W Outdoor Waterproof LED Zoom Gobo Light

1. Product Description

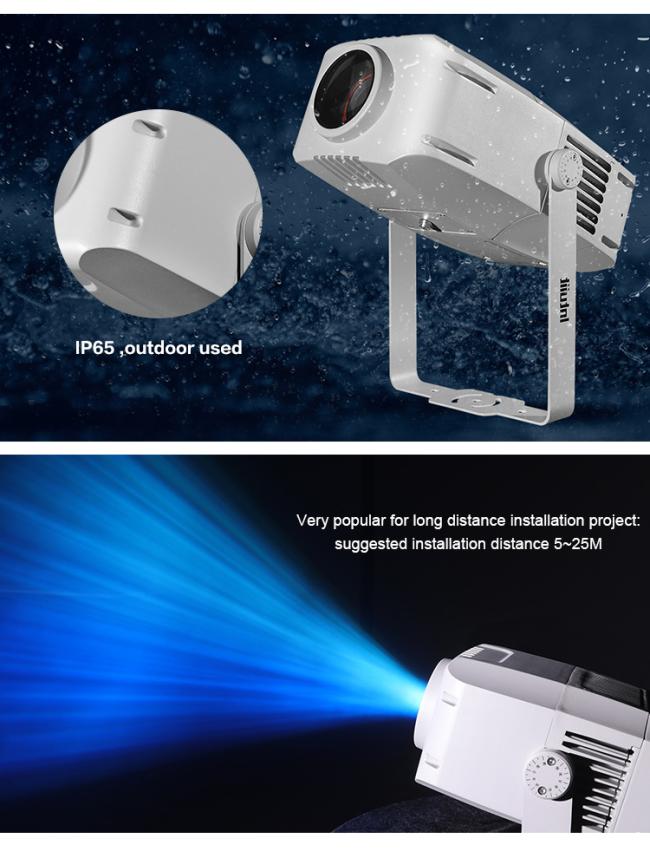

SW-201P-A  is an innovative waterproof projection lighting under independent research and development, with compact structure and attractive appearance. With pure white color temperature, it is equipped with intelligent zoom electronic system; 20-60° can be linearly adjusted. Focusing smoothly, and precisely in control. Built-in rotatable Gobo wheel, prism and other functions, SW-201P-A can achieve a wealth of dynamic pattern simulation effect. Equipped with an excellent optical system, the light spot is uniform with clear-cut margin, and the pattern image is vivid. The product is IP65 waterproof rating, which is widely used in theme parks, playgrounds, Commercial complex, commercial plazas, architectural buildings, outdoor performances and other large and medium-sized venues.



2. Feature

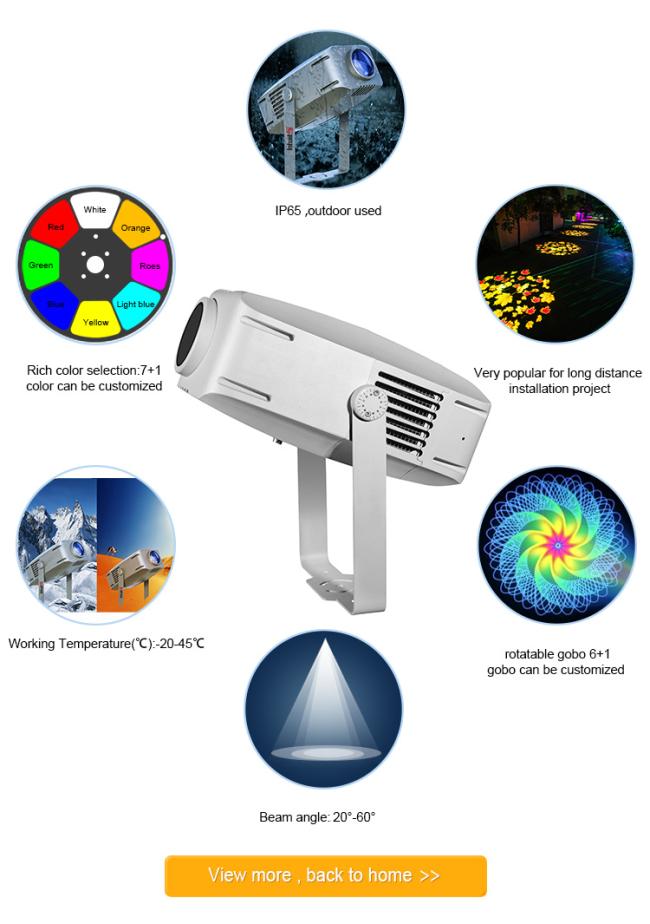

  • It is fitted with superior optical system. Zoom range: 20°-60°
  • Color wheel with rich colors,fixed gobo wheel,rotating gobo wheel,prism,and atomization effect can be transfomed easily.Very smoothdimming gray transformation
  • Gobos can be switched fexibly,accurate rotation and positioning,with clear Logo image

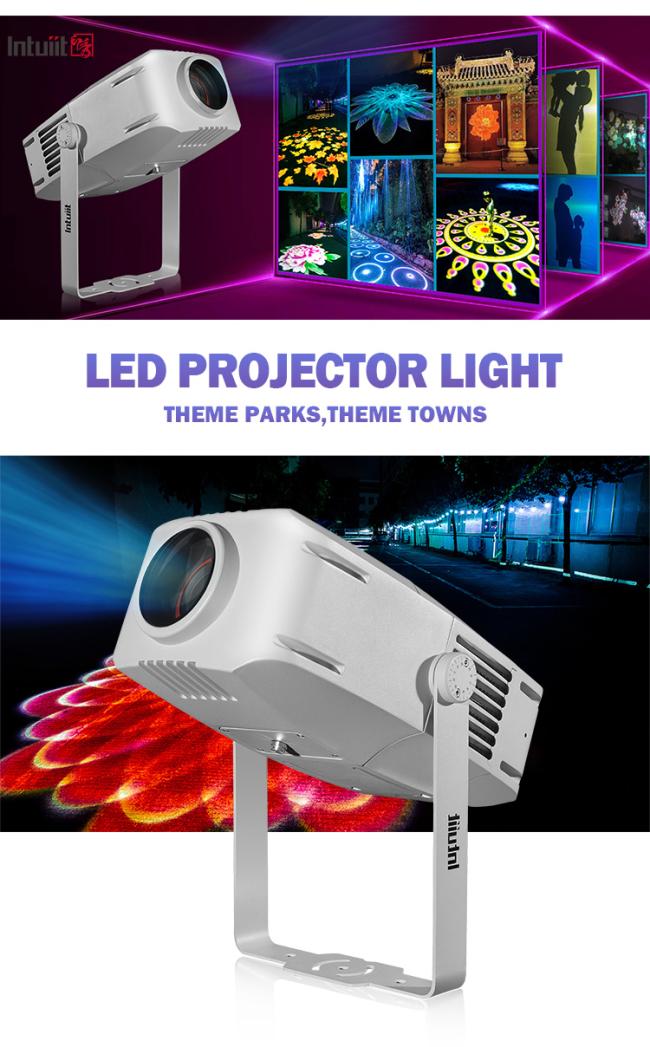

  • Professional for the cutural tourism market,theme park,theme town,live show,bridge piers etc
Product Parameter



Product Name 200W Outdoor Gobo projector zoom
Item Number SW-201P-A

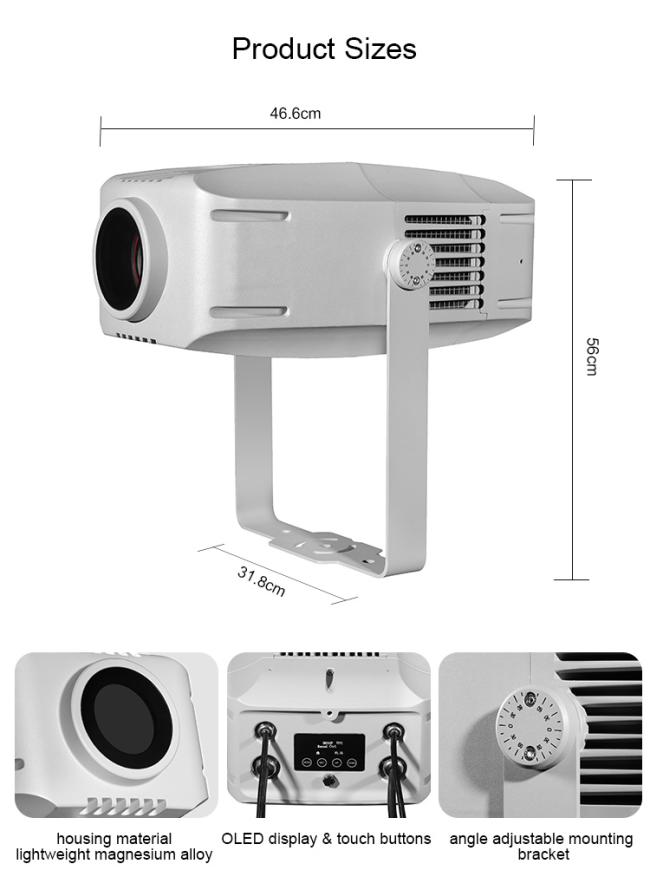

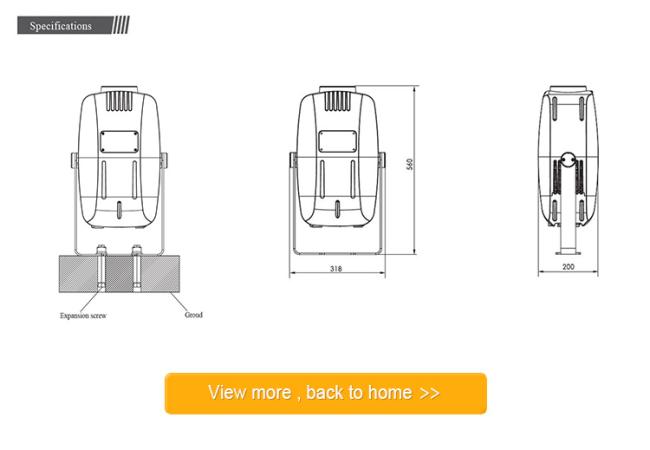

Product Measurement 560*318*200MM
Inner Packing Size 685*440*315MM
Packing Quantity 1pc/Carton
N.W./G.W. 14.5KG
Housing Material/Color Die casting Magnesium Alloy/Matt Black
Device Linking DMX in/out(3 pin),power in/out
Rotating gobo 7+1 CCT 7500K
Power  220W Focus, prism
Input Current 2.315A @100V 1.06A @240V
Power line System European/American 3PCS @100V 6 PCS @240V

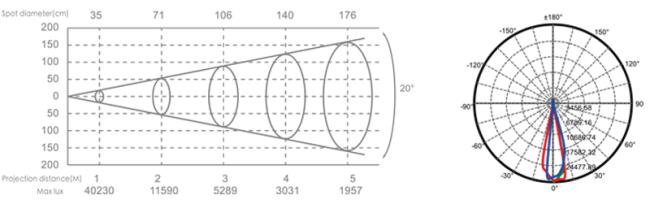

Beam Angle(Optional) 20°-60°
Data Protocol DMX512. RDM

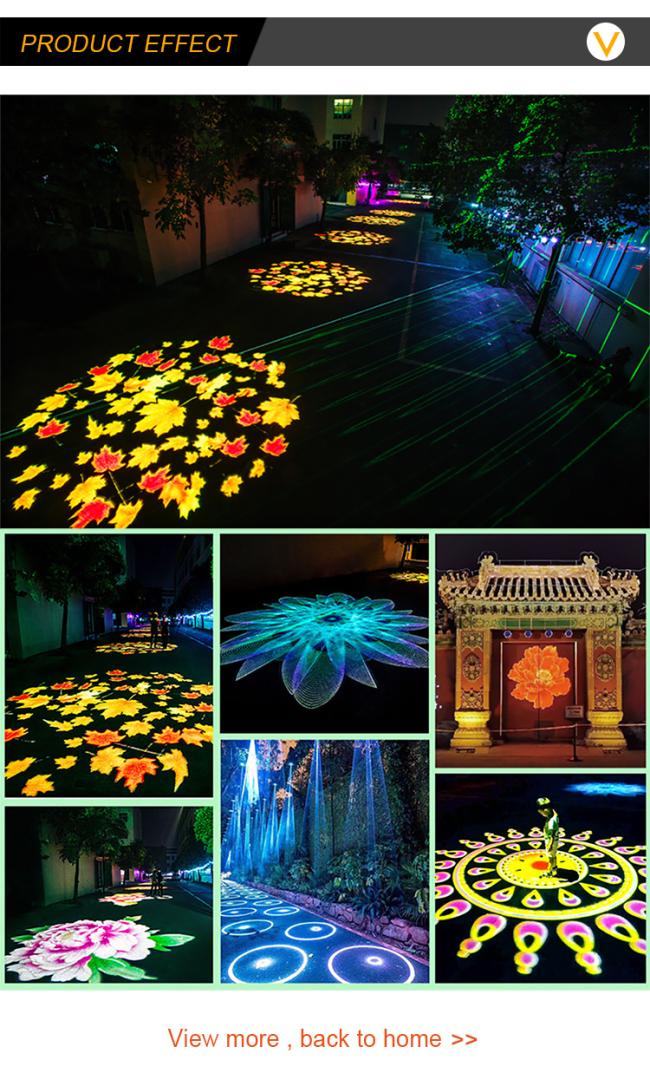

3. Production line &Effect reference



SW-100P / SW-200PSW-100P / SW-200P
