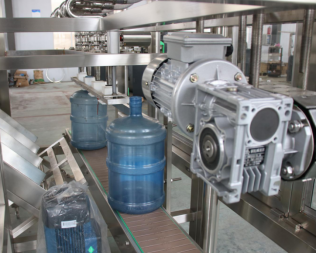

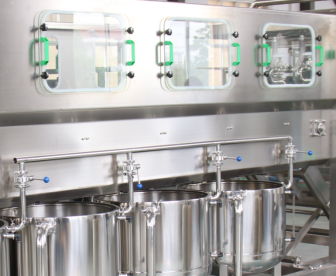

Pure Water 5 Gallon Bottle Barrel Filling Machine 600BPH / 900BPH Water Production Line
300BPH / 450BPH / 600BPH / 900BPH Pure Water 5 Gallon Bottle Barrel Bucket Jar Filling Machine / Equipment Water Production Line
*We supply complete solution for the 5 gallon bucket filling machine ,including Water treatment system / Decapping machine /Inside brusher / Externer brusher / Automatic 5 Gallon rinsing filling capping machine / Automatic Cap sleeve label machine / Code sprayer / Film wrapping machine / Automatic 5 gallon palletizer system
This production line is an automatic barrel production line for drinking water of 3-5gallon. Meanwhile, it is also suitable to produce barrel wine, vinegar, medicine and so on. This production line is adopted sufficiently tech-knowledge from overseas’ drinking water equipment and plus our elaborately design due to our nation tradition to work out. So it has full functions, low energy consumption, low investment, and higher and fast effecting characteristic.
The main electrical elements adopt the products with brands. This production line is adopted sufficiently tech-knowledge from overseas’ drinking water equipment and plus our elaborately design due to our nation tradition to work out. So it has full functions, low energy consumption, low investment, and higher and fast effecting characteristic. The main electrical elements adopt the products . Pneumatic elements adopt the products with brand of AIRTAC.
|
Technical parameter : water filling machine
|
||||
|
Model
|
QGF-300
|
QGF-450
|
QGF-600
|
QGF-900
|
|
Capacity(for 5 gallon)
|
300bph
|
450bph
|
600bph
|
900bph
|
|
Suitable bottle shapes
|
PET circular or square
|
|||
|
Bottle volume
|
3 & 5 Gallon
|
|||
|
Air consumption
|
0.4-0.6 m3/min
|
|||
|
Rinsing pressure
|
>0.06Mpa <0.2Mpa
|
|||
|
Application
|
5 gallon water production plant
|
|||
|
Total power (KW)
|
3.8kw
|
3.8kw
|
6.5kw
|
9.5kw
|
|
Overall dimensions
|
3000*1700*1750
|
5000*2000*1800
|
5000*2300*1800
|
5200*2300*2200
|
|
Weight(kg)
|
1500kg
|
2100kg
|
3000kg
|
3500kg
|
