ASTM A192 114.3mm Beveled Carbon Steel Seamless Tube Grade A1
ASTM A192 Carbon Steel Seamless Tube/Power Station Cs Seamless International Standard
ASTM A192 Seamless Carbon Steel Tube , Boiler Steel Pipe Wall Thickness 0.8mm - 15mm
Quick Detail:
Standard: ASTM A192 (ASME SA192)
Seamless Medium-Carbon Steel Boiler and Superheater Tubes
Size:(mm)
Out Dimensions: 12.7mm-114.3mm
Wall Thickness: 0.8mm-15mm
Length: 5-25mm
Applications:
It is used for boiler and boiler flue tubes. Including safe end, vault and supporting tube and super heater min wall thickness seamless medium--carbon steel tube
Chemical Requirements:
| STANDARD | GRADE | CHEMICAL COMPOSITION | |||||||||
| C | Si | Mn | P | S | Cr | Mo | Cu | Ni | V | ||
| ASTM A192 | A-1 | ≤0.27 | ≥0.10 | ≤0.93 | ≤0.035 | ≤0.035 | |||||
| C | ≤0.35 | ≥0.10 | 0.291.06 | ≤0.035 | ≤0.035 | ||||||
Mechanical Properties:
| Grade | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) |
| A-1 | ≥255 | ≥415 | 30 |
| C | ≥275 | ≥485 | 30 |
Wall Thickness Tolerance
ASME SA-192 |
OD | WT | WT Tolerance |
| <=38.1 | / | +20%,-0% | |
| >38.1 | / | +20%,-0% |
Description:
ASTM A210 is the standard covers seamless medium-carbon steel boiler and superheater tubes.ASTM A210 also covers minimum-wall-thickness, tubing sizes, boiler flues including safe ends, arch and stay tubes. ASTM A210 provides tensile and hardness properties but only applicable to certain size limitations. Material manufacturing shall be killed. Tubes shall be made by seamless process, marked as either hot-finished or cold-finished. Surface condition shall be specifically stated in the order. Chemical composition shall conform to the requirements. Elemental composition other than listed here shall not be permitted. Tension test, flattening test, flaring test, hardness test, hydrostatic or nondestructive electric test shall be made on specimens. Superheater tubes shall be formed without defects and shall withstand expansion, beading, forging, welding, and bending.
ASTM A192 Seamless Medium-Carbon Steel Boiler Tubes
Seamless Medium-Carbon Steel Boiler and Superheater Tubes
Steel Grde:
Grade A1; Grade C
Packing:

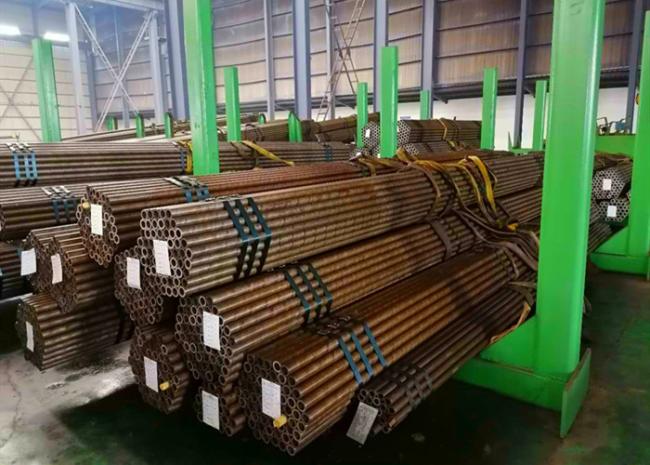

Beveled/black painting/ plastic caps/ in bundles/ steel strips/ wooden protection
Inspection and Test:
Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength,Elongation, Flaring, Flattening, Bending, Hardness, Impact Test),Surface and Dimension Test,Nodestructive Test, Hydrostatic Test.
Surface treatment:
Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting
Mark:
As requested.
Delivery Condition:
Annealed, Normalized, Normalized and Tempered
