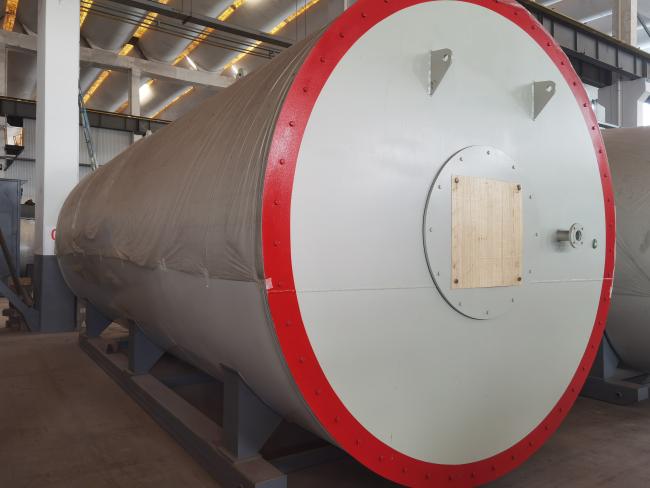

YYL Type ASME Oil Gas Tightening Tube Organic Heat Carrier Boiler
YYL Type ASME Horizontal Oil Gas Boiler Tightening Tube Organic Heat Carrier Boiler
Product Type
YYL(W) type vertical(horizontal) type fuel oil(gas) heat boiler
Product Range
Rated thermal power: 0.7MW - 29MW (60xl04Cal/hr - 2500xl04Cal/hr)
Design pressure: 0.6MPa - 1.6MPa
Specific parameters are shown in Table6
Structural features of this series of products
- There are two types of structure: vertical(YYL) and horizontal(YYW).
- The boiler surface adopts the tightening-tube-arrangement with spiral structure. The chimney adopts the three-pass arrangement.
- An air preheater or a water/steam transformer is arranged behind the boiler, reducing the temperature, improving the thermal efficiency of the boiler.
- The quick opening door or the observation door is equipped for the convenience of checking the internal inspection and maintenance.
-
Technical Parameter
Cement production line capacity t/d 1000 2500 5000 10000 Boiler inlet flow Nm3/h Kiln(front) 60000 88000 243000 472000 Kiln(tail) 76000 170000 328000 612000 Boiler inlet gas temperature℃ Kiln(front) 370 360 380 390 Kiln(tail) 360 320~360 330 330 Rated evaporation t/h Kiln(front) 5.8 7.25 24 50 Kiln(tail) 7.5 10~15.8 20~24.6 35.5 Rated steam pressure Mpa Kiln(front) 1.25 1.25 1.25 1.25 Kiln(tail) 1.25 1.25 1.25 1.25 Rated steam temperature℃ Kiln(front) 340 330 350 360 Kiln(tail) 340 300~340 310 310 Boiler structure Kiln(front) Vertical Vertical Vertical Vertical Kiln(tail) Vertical Vertical and Horizontal Vertical and Horizontal Vertical

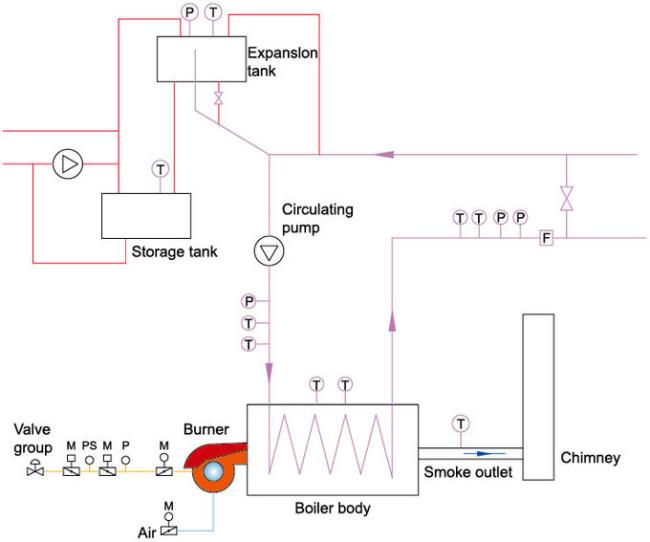

Oil/Gas Thermal Boiler System Diagram

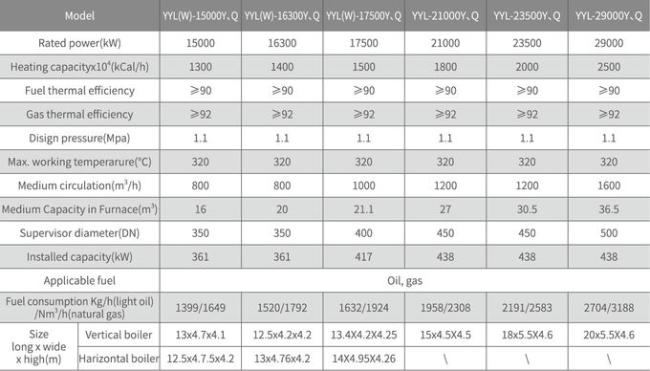

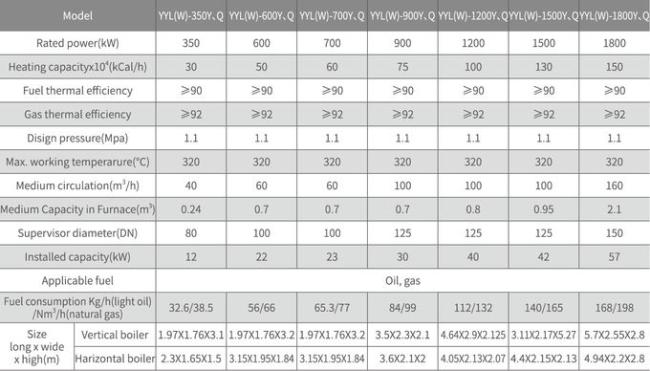

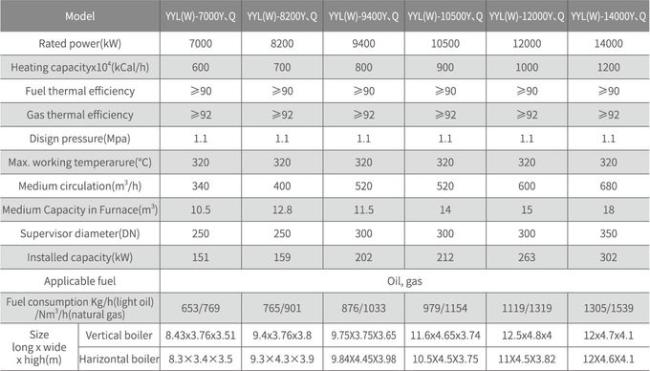

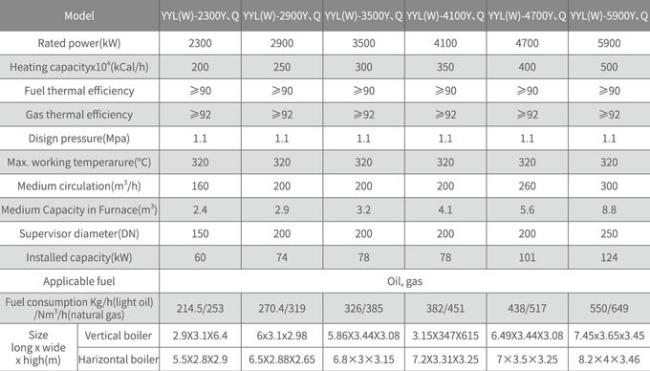

Parameters Table 6
About us
Our company holds "S" and "U" stamps of ASME (American Society of Mechanical Engineers) standards, Class-A Boiler Manufacturing License, D1D2 Pressure Vessel Manufacturing License of China. We have established and maintained a Quality Management System certified according to the international Quality Standard ISO9001
Products are widely used in power generation, heating, chemical industry, textile industry, food industry, paper industry, pavement, plastice, rubber, wood, etc.. More than 10,000 customers of all the world.
Our products not only serve well for all over China, but also are exported to such countries / regions as USA, Japan, Australia, Russia, Vietnam, Philippine, Malaysia, Indonesia, Pakistan, Kazakhstan, Egypt, and Africa.
