Cold Drawn Seamless Stainless Tube TP304 Bright Annealed For Superheater

Price Negotiable

Price: 5,000 - 9,000 USD per ton

MOQ: 15 Tons

Delivery Time: 60-75days after getting the down payment or L/C

Brand: HDT

Product Description

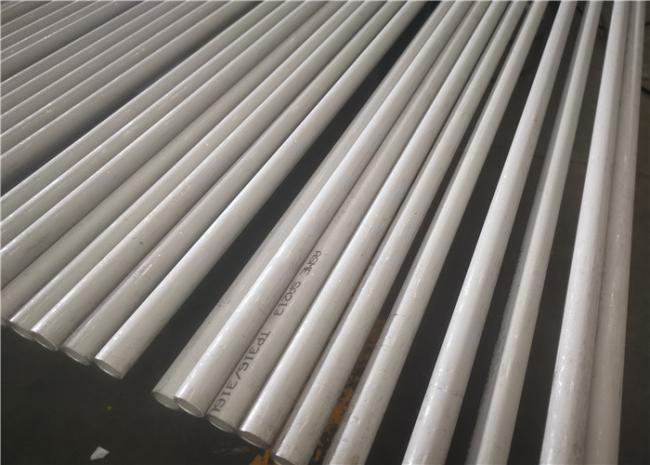

Cold Drawn Seamless Stainless Tube TP304, TP310 Bright Annealed For Superheater

Item	Description
Basic Information	Material Grade	TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , S31803 , S32750 , S32205 etc
	Outer Diameter	6.00mm - 48.00mm
	Wall Thickness	0.71mm - 2.11mm
	Length	Normally fixed length 6m , can as per customer’s requirement
	Standard	ASTM A213 ; ASTM A269 ; ASTM A312 ; ASTM A789 ; ASTM A790 ect .
	Process Method	Cold Drawn or Cold Rolled

ASME SA213 / A213 : Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler , Superheater and Stainless Steel Heat Exchanger Tubes .

ASTM A249 / A249M : Standard Specification for Welded Austenitic Steel Boiler , Superheater Heat-Exchanger , and Condenser Tubes .

Application :

1 . For fluid & gas transport

2 . Petrochemical

3 . Environmental protection

4 . Structure & Machining

5 . Electricity

6 . Instrument industry etc

Stanard Wire Gauge ( Fomerly Imperial Wire Gauge ) SWG
SWG	Wall Thickness		SWG	Wall Thickness
0	0.324	8.23	21	0.032	0.81
1	0.3	7.62	22	0.028	0.71
2	0.276	7.01	23	0.024	0.61
3	0.252	6.4	24	0.022	0.56
4	0.232	5.89	25	0.02	0.51
5	0.212	5.38	26	0.018	0.46
6	0.192	4.88	27	0.0164	0.42
7	0.176	4.47	28	0.0148	0.38
8	0.16	4.06	29	0.0136	0.35
9	0.144	3.66	30	0.0124	0.31
10	0.128	3.25	31	0.0116	0.29
11	0.116	2.95	32	0.0108	0.27
12	0.104	2.64	33	0.01	0.25
13	0.092	2.34	34	0.0092	0.23
14	0.08	2.03	35	0.0084	0.21
15	0.072	1.83	36	0.0076	0.19
16	0.064	1.63	37	0.0068	0.17
17	0.056	1.42	38	0.006	0.15
18	0.048	1.22	39	0.0052	0.13
19	0.04	1.02	40	0.0048	0.12
20	0.036	0.91

EN10216-5 Standard Chemical Composition :

Steel Grade		C	Si	Mn	P	S	N	Cr	Cu	Mo	Nb	Ni	Ti	Others
Steel Grade		max			max	max
Steel Name	Steel Number
X2CrNi19-11	1.4306	0.03	≤1	≤2	0.04	0.015	≤0.11	18.00 - 20.00	-	-	-	8.00 - 10.00	-	-
X5CrNi18-10	1.4301	0.07	≤1	≤2	0.04	0.015	≤0.11	17.00 - 19.50	-	-	-	8.00 - 10.50	-	-
X6CrNiTi18-10	1.4541	0.08	≤1	≤2	0.04	0.015	≤0.11	17.00 - 19.00	-	-	-	9.00 - 12.00	5xC to 0.70	-
X6CrNiNb18-10	1.4550	0.08	≤1	≤2	0.04	0.015	-	17.00 - 19.00	-	-	10xC to 1.00	9.00 - 12.00	-	-
X2CrNiMo17-12-2	1.4404	0.03	≤1	≤2	0.04	0.015	≤0.11	16.50 - 18.50	-	2.00 - 2.50	-	10.00 - 13.00	-	-
X5CrNiMo17-12-2	1.4401	0.07	≤1	≤2	0.04	0.015	≤0.11	16.50 - 18.50	-	2.00 - 2.50	-	10.00 - 13.00	-	-
X6CrNiMoTi17-12-2	1.4571	0.08	≤1	≤2	0.04	0.015	-	16.50 - 18.50	-	2.00 - 2.50	-	10.50 - 13.50	5xC to 0.70	-

ASTM A213 / A213M Standard Chemical Composition :

Elements	304L(wt%) S30403	304(wt%) S30400	316L (wt%) S31603	316 (wt%) S31600
(C) Carbon, max	0.035	0.08	0.035	0.08
(Mn) Manganese, max	2	2	2	2
(P) Phosphorus, max	0.045	0.045	0.045	0.045
(S) Sulfur, max	0.03	0.03	0.03	0.03
(Si) Silicon, max	1	1	1	1
(Ni) Nickel	8.0 - 12.0	8.0 - 11.0	10.0 - 14.0	10.0 - 14.0
(Cr) Chromium	18.0 - 20.0	18.0 - 20.0	16.0 - 18.0	16.0 - 18.0
(Mo) Molybdenum	N/A	N/A	2.0 - 3.0	2.0 - 3.0
(Fe) Iron	Bal.	Bal.	Bal.	Bal.
(Cu) Copper	N/A	N/A	N/A	N/A
(N) Nitrogen	N/A	N/A	N/A	N/A

ASTM A312 / A312M Standard Chemical Composition :

Elements	304L(wt%)	316L (wt%)
(C) Carbon, max	0.035	0.035
(Mn) Manganese, max	2	2
(P) Phosphorus, max	0.045	0.045
(S) Sulfur, max	0.03	0.03
(Si) Silicon, max	1	1
(Ni) Nickel	8.0 - 13.0	10.0 - 14.0
(Cr) Chromium	18.0 - 20.0	16.0 - 18.0
(Mo) Molybdenum	N/A	2.0 - 3.0
(Fe) Iron	Bal.	Bal.
(Cu) Copper	N/A	N/A
(N) Nitrogen	N/A	N/A
