DIN17175 Boiler Steel Tube 4 Ribs Thread corrosion resistance

Price Negotiable

Price: 800 - 9000 USD / ton

MOQ: 5T

Delivery Time: 60-75days

Brand: HDT

Product Description

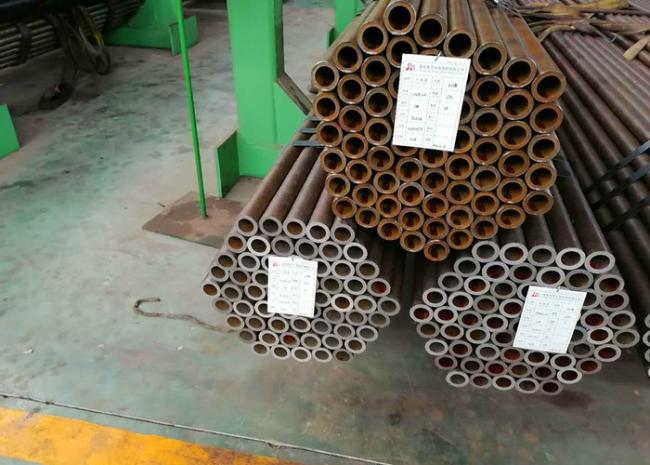

High Pressure Seamless Carbon Steel Boiler Tube St 37.8 Carbon Steel Pipe

Production Standard: GB/T20409-2006

SteelGrade:20G,20MNG,25MNG,12CRMOG,15CRMOG,SA210A1,SA210C,SA213T2/T12,WB36,T91,T11,

P11,P22,P92,P5,P9,R102,CR5MO,16MO3,12CR2MOWVTIB

Threads Number: 4ribs/6ribs/8ribs/12ribs

Internal Thread High pressure boiler Rifled tube is one kind of endophragm processes the spiral line the seamless steel pipe. Main application in on capacity utility boiler's water cooling wall. Usually with the fluorescent tube which uses compares, it can maintain the nuclear ebullition condition under the high fever load operating condition, thus avoids sending the filming condition ebullition, prevents the pipe to burn out, lengthens the pipe service life.

Chemical&Mechanical parameters

Grade	C	Mn	Si	Cr	Mo	S	P
20G	0.17~0.23	0.35~0.65	0.17~0.37	---	---	≤0.020	≤0.025
20MnG	0.17~0.23	0.70~1.00	0.17~0.37	---	---	≤0.020	≤0.025
25MnG	0.22~0.29	0.70~1.00	0.17~0.37	---	---	≤0.020	≤0.025
12CrMoG	0.08~0.15	0.40~0.70	0.17~0.37	0.40~0.70	0.40~0.55	≤0.020	≤0.025
15CrMoG	0.12~0.18	0.40~0.70	0.17~0.37	0.80~1.10	0.40~0.55	≤0.020	≤0.025
SA-210A1	≤0.27	≤0.93	≥0.10	---	---	≤0.035	≤0.035
SA-210C	≤0.35	0.29~1.06	≥0.10	---	---	≤0.035	≤0.035
SA-213T2	0.10~0.20	0.30~0.61	0.10~0.30	0.50~0.81	0.44~0.65	≤0.025	≤0.025
SA-213T12	0.05~0.15	0.30~0.61	≤0.50	0.80~1.25	0.44~0.65	≤0.025	≤0.025

Grade	T(MPa)	Y(MPa)	E(%)	Hardness
20G	410~550	245	≥24	---
20MnG	≥415	≥240	≥22	---
25MnG	≥485	≥275	≥20	---
12CrMoG	410~560	≥205	≥21	---
15CrMoG	440~640	≥235	≥21	---
SA-210C	≥415	≥255	≥30	≤143HBW
SA-210A1	≥485	≥275	≥30	≤179HBW
SA-213T2	≥415	≥205	≥30	≤163HBW
SA-213T12	≥415	≥220	≥30	≤163HBW

Tube Sizes for Heat Exchangers & Condensers & Boiler
Outside Diameter			BWG
		25	22	20	18	16	14	12	10
			Wall Thickness mm
		0.508	0.71	0.89	1.24	1.65	2.11	2.77	3.40
mm	inch		Weight kg/m
6.35	1/4	0.081	0.109	0.133	0.174	0.212
9.53	3/8	0.126	0.157	0.193	0.257	0.356	0.429
12.7	1/2		0.214	0.263	0.356	0.457	0.612	0.754
15.88	5/8		0.271	0.334	0.455	0.588	0.796	0.995
19.05	3/4		0.327	0.405	0.553	0.729	0.895	1.236
25.4	1		0.44	0.546	0.75	0.981	1.234	1.574	2.05
31.75	1 1/4		0.554	0.688	0.947	1.244	1.574	2.014	2.641
38.1	1 1/2		0.667	0.832	1.144	1.514	1.904	2.454	3.233
44.5	1 3/4				1.342	1.774	2.244	2.894	3.5
50.8	2				1.549	2.034	2.574	3.334	4.03
63.5	2 1/2				1.949	2.554	3.244	4.214	5.13
76.2	3				2.345	3.084	3.914	5.094	6.19
88.9	3 1/2				2.729	3.609	4.584	5.974	7.27
101.6	4					4.134	5.254	6.854	8.35
114.3	4 1/2					4.654	5.924	7.734	9.43
Form of Tube: Straight & U-bend & Finned & Coiled
Stainless Steel Tube: A/SA213, A/SA249, A/SA268, A/SA269, A/SA789, EN10216-5, A/SA688, B/SB163, JIS-G3463, GOST9941-81.
Carbon &Alloy Steel Tube: A/SA178, A/SA179, A/SA192,A/SA209, A/SA210, A/SA213, A.SA214
